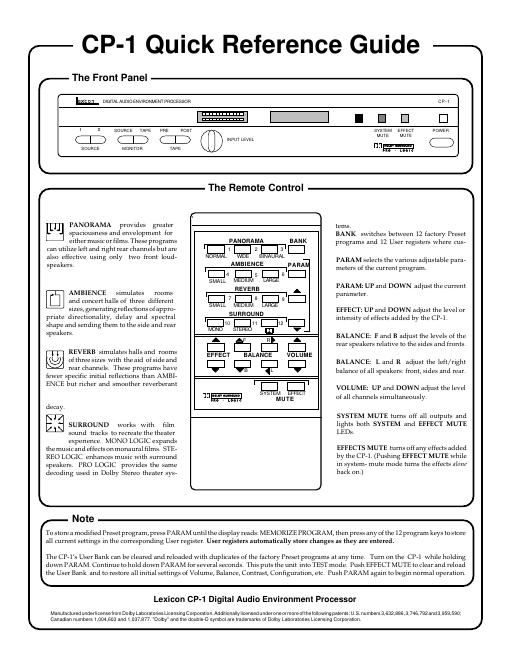

Lexicon Part # 070-06620 Rev. 1.0 The Rear Panel Configuration Push Phantom/In if you have no center channel; leave it out if a center speaker is conn\ ected. Leaving this button out with no center channel will cause the Surround p\ rograms to malfunction. Patents are pending on the CP-1 1 Center Phantom Button IN 3 Center Phantom Button IN 4 Center Phantom Button IN 2 Center Phantom Button IN 5 8 7 10 11 12 Center Phantom Button IN 9 Center Phantom Button IN 6 Choose the diagram that most closely corresponds to your room and note its number. 3 Oak Park Bedford, MA 01730 USA Lexicon CP-1 Digital Audio Environment Processor Quick Reference Guide © 1988 Lexicon, Inc. REAR SIDELEVEL SUB WOOFERCENTER/OUT PHANTOM/IN L R L R OUTPUTS TAPE OUT TAPE IN L R INPUTS L R III M A I N CENTER SUB Press BANK and hold for five seconds. The display will read: LCD CONTRAST ADJ. The CP- 1 is now in Configuration mode. - Use PARAM UP or DOWN to adjust display contrast. Push PARAM to select the Speaker Configuration menu. - Push PARAM UP or DOWN until the configura- tion you have chosen and the description in the display match. If you are using only one rear speaker it may be hooked up to either the left or right rear output, as long as you use the correct Configuration number. Subwoofers are not shown in any of these configu- rations. Consult the subwoofer owner's manual or your dealer for proper placement of subwoofers. speaker connected to center output speakers connected to Main outputs speakers connected to Side outputs speakers connected to Rear outputs
