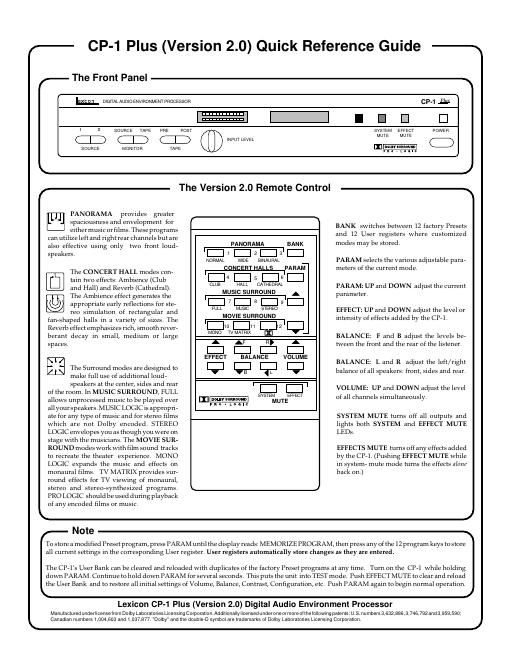

Lexicon Part # 070-09112 The Rear Panel Configuration Push Phantom/In if you have no center channel; leave it out if a center speaker is conn\ ected. Leaving this button out with no center channel will cause the Surround p\ rograms to malfunction. 1 Center Phantom Button IN 3 Center Phantom Button IN 4 Center Phantom Button IN 2 Center Phantom Button IN 5 8 7 10 11 12 Center Phantom Button IN 9 Center Phantom Button IN 6 Choose the diagram that most closely corresponds to your room and note its number. 3 Oak Park Bedford, MA 01730 USA © 1992 Lexicon, Inc. Press BANK and hold for five seconds. The display will read: LCD CONTRAST ADJ. The CP- 1 is now in Configuration mode. - Use PARAM UP or DOWN to adjust display contrast. Push PARAM to select the Speaker Configuration menu. - Push PARAM UP or DOWN until the configura- tion you have chosen and the description in the display match. Lexicon CP-1 Plus (Version 2.0) Quick Reference Guide The actual angle, or "toe in" of the speakers should be set according to the manufacturer's sugges- tions. If you are using only one rear speaker, or a single amplifier channel for the rears, it may be hooked up to either the left or right rear output, as long as you use the correct Configuration number. Subwoofers are not shown in any of these configu- rations. Consult the subwoofer owner's manual or your dealer for proper placement of subwoofers. speaker connected to center output speakers connected to Main outputs speakers connected to Side outputs speakers connected to Rear outputs REAR SIDE LEVEL L R OUTPUTS TAPE OUT INPUT S MAIN
