Lexicon 960l service manual

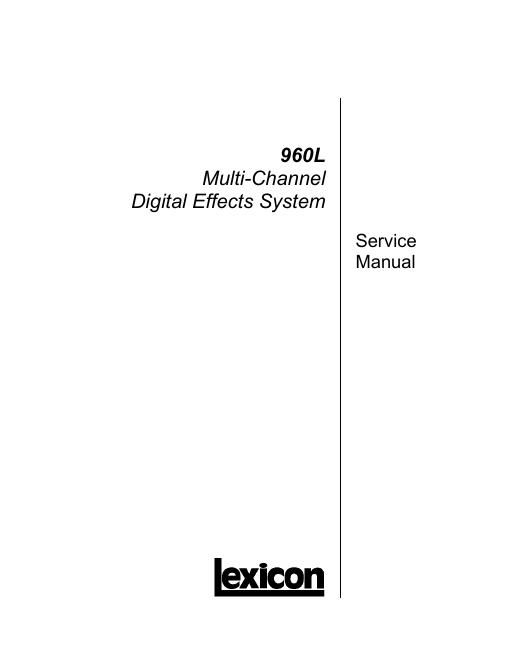

Page 1

960L
Multi-Channel
Digital Effects System

Service
Manual

IEXiCOfl

Page 2

960L Multi-Channel Digital Effects System Sen/ice Manual

Precautions

Save these instructions tor later use.
Follow all instructions and wamiirgs marked on the unit

Always use Win the correct line voltage Refer to the manufacturers operating instructions for power requirements, Be adVised that ditleient
operating voltages may require the use of a diilerenl line cord and/or attachment plug

Do not install the unit in an unventitated rack, ordrrectly above heat producing equrpment such as power amplifiers. Observe the maximum
ambient operating temperature listed in the product specification.

Slots and openings on the case are provided ior ventilation. to ensure reliable operation and prevent it lrom overheating, these openings must
not be blocked or covered. Never push objects of any kind through any ol the ventilation slots Never spill a liquid or any kind on the unit,

This product is equrpped With a 3wrre grounding type plug This is a salary feature and should not be deleated
Never attach audio power amplifier outputs directly to any or the units connectors.
To prevent shock or iire hazard. do not expose the unit to rain or maisture. or operate it where it will be exposed to water.

Do not attempt to operate the unit ii it has been dropped, damaged. exposed to liquids. or it it exhibits a distinct change in perlormance indicating
the need for service.

This unit should only be opened by qualilied servtce personnel. Removing covers Will expose you to hazardous voltages

This mange which appears on your

ihistriangle, whichappearson your

that may be sutiicient to constitute a
risk oi shock

compona . alerts you to the pres- .

snce or uriinsulated, pa ngerous voii- CA UT] 0 N 5:gimzfiglmfntgxalzcxgx2
aeniah nl'rc l - -
g i Sb» l 9 9 a wage HISKOF ammo snocx (ions in this accompanying MW

DO NOT OPEN

titre

Notice

This equipment generates and uses radio lreouency energy and il not installed and used properly, that is, in strict accordance With the
manufacturers instructions, may cause interference to radio and television reception. lt has been type tested and round to comply With the
limits tor a Class B computing device inaccordance with the spectficatrons in SuttparlJ oi Pan tSol FCC Rules which are designated to provtde
reasonable protection against such interference in a residential installation. However. there is no guarantee that rnterlerence will not occur
m a particular installation. ll this equipment does cause interference to radio or televrsion reception, which can be determined by turning the
equipment OFF and ON. the user is encouraged to try to correct the interlerence by one or more or the tollowrrig measures

Remnant the receiving antenna

Relocate the computer with respect to the receiver

Move the computer away trom the receiver

Plug the computer into a different outlet so that the computer and receiver are on dilterent branch Circuits.

If necessary, the user should consult the dealeror an experienced radrolteleviscn technician lor additional suggestions. The user may lind
the lollowing booklet prepared by the Federal Communications Commrssron helpiui

"How to identity and Resolve Radroll V lnterlerencs Problems '
This booklet is available from the US. Government Printing Oifice, Washington, DC 20402, Stock No. 004000003454

Le present appareil numérique nr'zmet pas de bruits radioelectriques depassant tes lrmites applicables aux appareils numértoues de la class
B prescrites dans le Fteglement sur le broutllage radioélectnque édicté par le ministers des Communicatons du Canada

Copyright © 1999 Lexicon, Inc.
All Rights Reserved

Lexicon Inc. 0 3 Oak Park 0 Bedford, MA 01730-1441 0 Tel (781) 280-0300 0 Customer Service Fax (781) 280-0499

Lexicon Part # 070-14826 Rev 0
Printed in the United States of America
