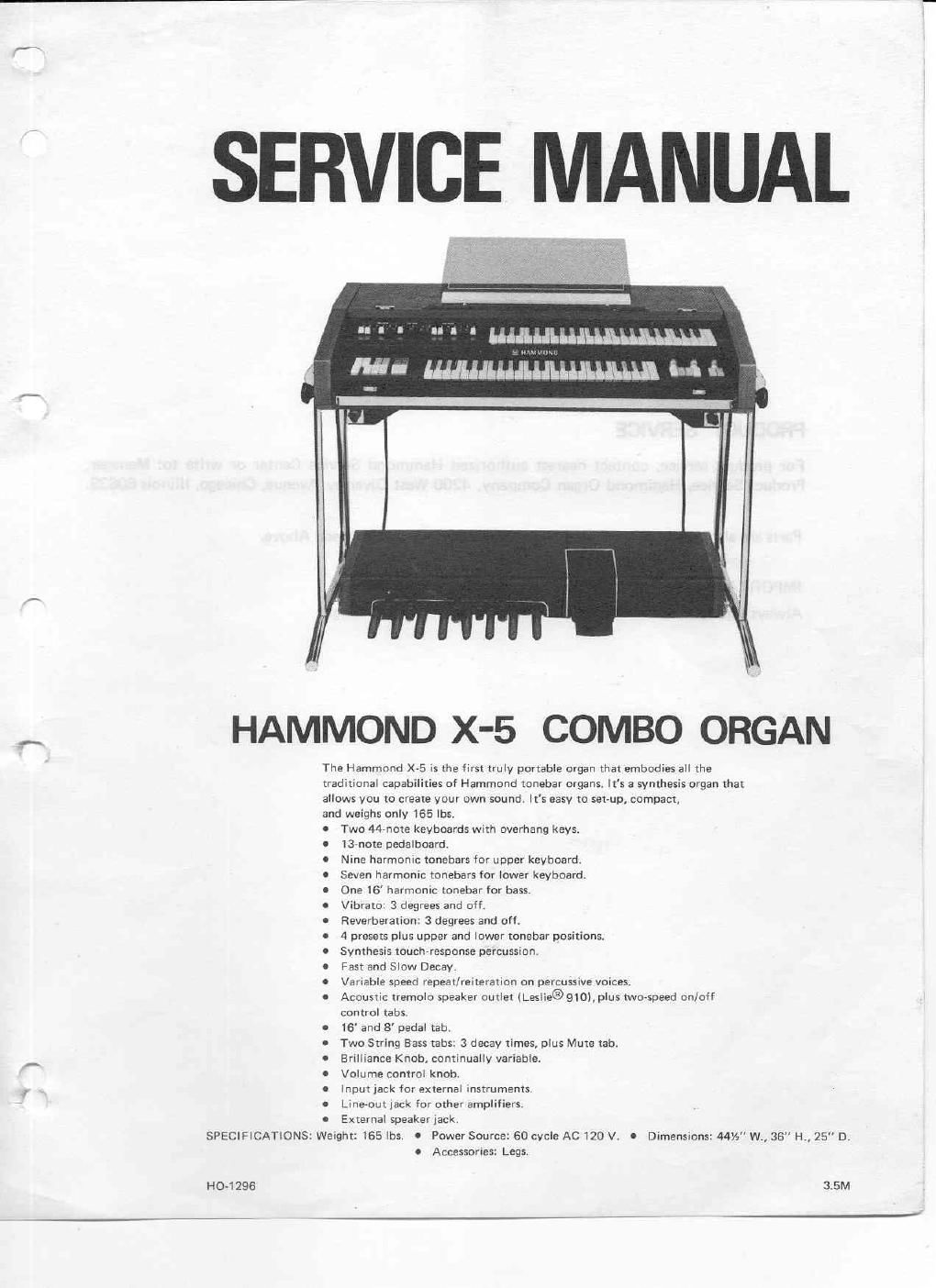

SERVICE MANUAL

._ HAMMOND X-5 COMBO ORGAN

The Hammond X-S is the first truly portable organ that embodies all the

traditional capabilities of Hammond tonebar organs, It's a synthesis organ that

allows you to create your own sound. it's easy to set-up, compact,

and weighs only 1651bs,

Two 44-note keyboards with overhang keys.

13vnote pedalboard.

Nine harmonic toncbars for upper keyboard.

Seven harmonic tonebars for lower keyboard.

One 16 harmonic Ionebar for bass.

Vibrato: 3 degrees and off.

Reverberation' 3 degrees and off.

4 presets plus upper and lower lonebar positions.

Synthesis touch-response percussion,

Fast and Slow Decay,

Variable speed repeat/reiteration on percussive voices.

Acoustic tremolo speaker outlet (Leslie®910l, plus two-speed on/off

control tabs.

16' and 8 pedal tab.

Two String Bass tabs: 3 decay times, plus Mute tab.

Brilliance Knob. continually variable.

Volume control knob.

Input iack for external Instruments

Line-out jack for other amplifiers.

External speaker lack.

SPECIFICATIONS: Weight: 165 lbs. 0 Power Source: 60 cycle AC 120 V. I Dimensions: 44%" W., 36 H,, 25" D.
0 Accessories: Legs.

H01 296 3.5M

Page 2

PRODUCT SERVICE

For product service, contact nearest authorized Hammond Service Center or write to: Manager,
Product Service, Hammond Organ Company, 4200 West Diversey Avenue, Chicago, Illinois 60639.

Parts are also Available by Contacting Product Service as Mentioned Above.

IMPORTANT:

Always supply model designation and serial number when writing.
