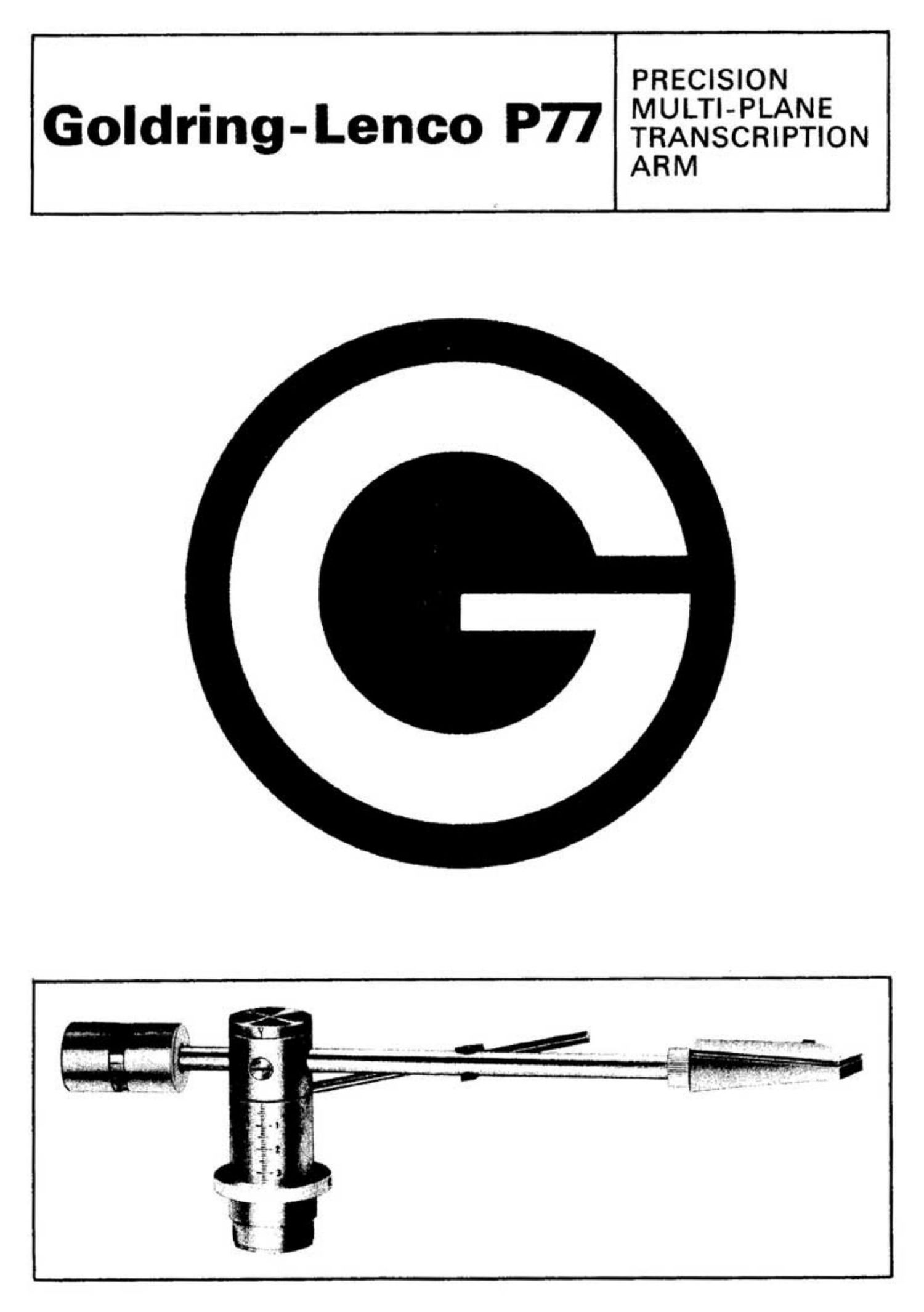

Lenco P 77 Owners Manual
This is the 6 pages manual for Lenco P 77 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Lenco P 77 Owners Manual (Ocr-read)
Page 2
.34
AOQQNGmbWN
4.3.1....44...
consummate»
"7!
10
11
12
13
J
Counterbalance weight.
Rear adjustment ring.
Front adjustment ring.
Knurled adjustment knob.
Calibrated stylus pressure adjustment.
Pedestal spindle.
Pedestal base
Clamping screw.
Screening can.
Lowering arm.
Securing screw for screening can.
Pick-up lead.
Earth lead.
Plug-in shell.
Plug-in shell securing nut.
Rest clip.
Pick-up arm tube.
Scale for height adjustment.
Stop screw.
1!.
TECHNICAL SPECIFICATION
Overall length of pick-up arm 330 mm (13").
Diameter of pedestal 34 mm (1.34).
Overall height with screening can 150 mm
(5.9).
Maximum height adjustment 30 mm (1.18).
Tracking length (turntable spindle to pedestal
spindle) 210 mm (8.27').
Stylus overhang 17.1 mm (0.67).
Maximum adjustment of Stylus position 10 mm
(0.39).
Offset angle 23° 12.
Tracking error :t 0.8.
Length of cable 1.10 m (43').
Capacity (plug-in shell to amplifier input) 160 pF.
Moment of inertia (without cartridge)
148 grs /mm.
Low frequency resonance with cartridge of
compliance 5 x 10-5 cms/dyne -- 10 c/s.
