Lenco L830 DD L833 DD Owners Manual

Page 1

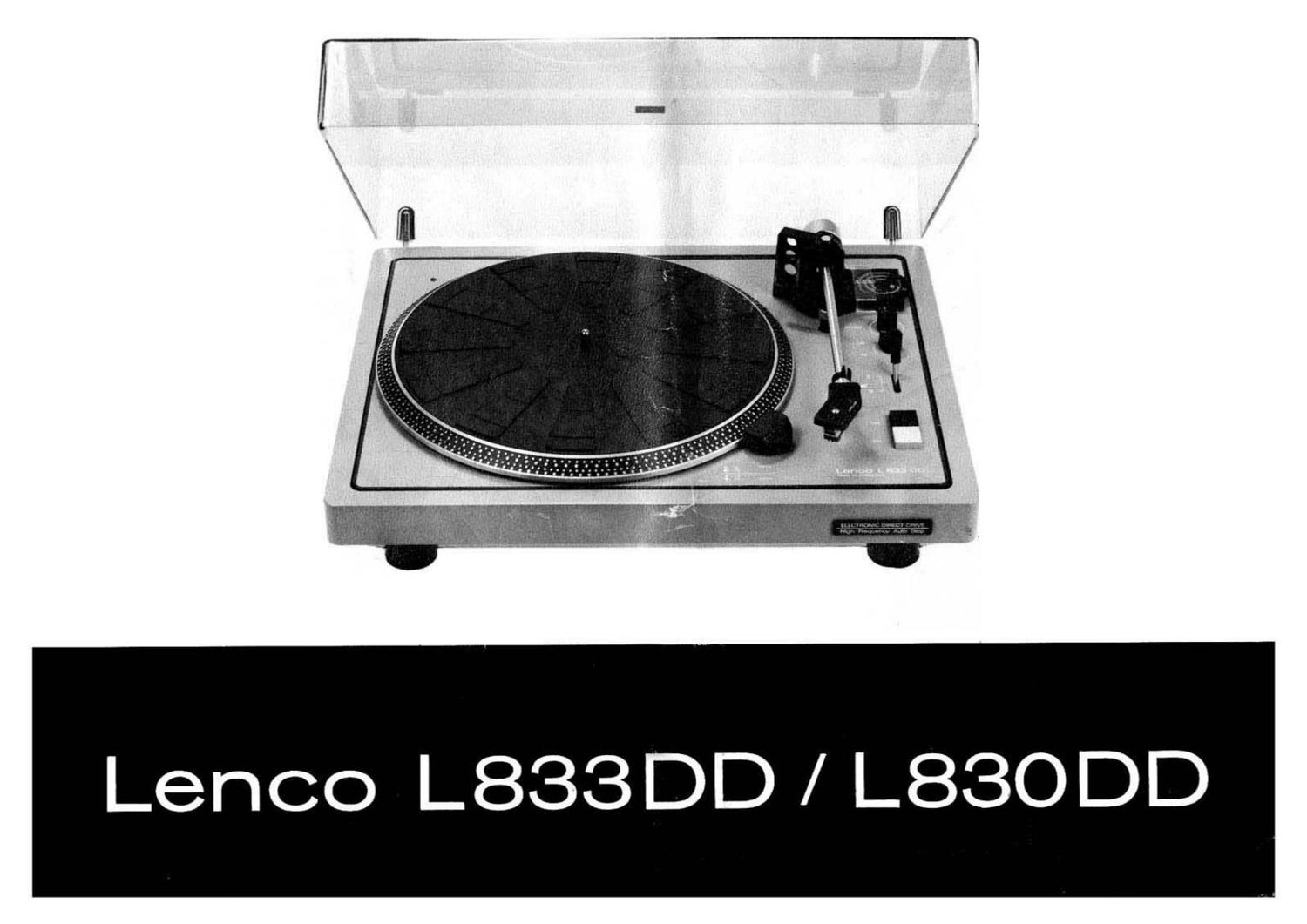

Lenco L833DD / L830DD

Page 2

1 Gegengewicht

2 Skalaring lflr Aullagekraft

3 Scheibe lfir Antisketing-Elnsteilung

4 Markierbfigel mlt Symbolen

5 Tonarmlift

6 Knopf ti'ir Drehzahlfeinregulierung

7 Knopl lfir Drehzahlumschaitung

B Armliltheber

9 Tonarmrohr

10 Ausschalttaste

11 Einschalttaste

12 Ansteckkopf

13 Feststellschraube liir Tonabnehmersystem

14 Rindelmutter zu Ansteckkopt

15 Tonarmstfilze

15 Stroboskoplampe

17 Plattentellergummi

18 Stroboskoprlng

19 Montageplatte mit Plastlkrand

20 Tellerachse

21 Abdeckschraube (dieee ist bei der Montage des
Lencoclean «L» zu enttemen)

22 Abdeckplatte

23 Pick-up Support

24 Sockel

25 Haubenscharnier

1 Contrepoids
2 Bague graduée pour Iajustement de la force d'appiication
3 Disque gradué pour la regiage de l'antiskating
4 Support marqueur aveo symboles
5 Raleve-bras
6 Bouton de réglage fin des lréquences de rotation
7 Benton de changement de fréquence de rotation
8 Manette commandant ie releve-bras
9 Corps du bras de lecture
10 Touche d'arret
11 Touche de mise en marche
12 Coquilia porte-cellule
13 Via pour la fixation de la plaquette de montage
14 Bague moietée pour la fixation de la ceiluie
15 Support du bras
16 Lampe pour stroboscope
17 Caoutchouc du plateau a disques
18 Anneau stroboscopique Iumineux a la périphérie du plateau
19 Platlne de montage bordée de plasthue
20 Axe du plateau
21 We obturant (celIe-cl est a enlever lors du montage du
Lencoclean «L»)
22 Feullle de protection
23 Support anicuie du bras
24 Socle
25 Charnieres du couvercle

1 Counter-weight

2 Scale ring for playing force

3 Anti-skating adjustment ring

4 Marking plate with symbols

5 Tone-arm lift

6 Knob for fine speed regulation
7 Knob for speed switching

8 Arm-lift lever

9 Tone-arm tube
10 OFF button

11 ON button
12 Plug-in head shell
13 Tightening screw tor pick-up system
14 Knurled nut tor plug-in head
15 Tone-arm rest

16 Stroboscope lamp

17 Turntable rubber mat

18 Stroboscope ring

19 Mounting plate with plastic rim
20 Turntable axle
21 Cover screw (to be removed when mounting

Lencoclean «L»)

22 Cover plate
23 Pick-up support

24 Plinth

25 Dust cover hinges

Page 6

User. In the UK should pay special attention on the iollowlng:

If the colours of the wires in the mains lead of this unit do not
correspond with the coloured markings identitylng the terminals
in your plug. proceed as follows:

Connect the blue wire to the terminal which is marked with the
letter N or coloured black.

Connect the brown wire to the terminal which is marked with
the letter L or coloured red.

Operating Instruction:

Place a record on the turntable. turn the speed change knob
to the desired speed. whether 33% rpm or 45 rpm and press
the «ON» button. When the turntable begins to rotate move the
arm lowering device lever forward and the pick-up arm will
automatically be lowered slowly onto the record.

L833 DD

At the end of the record the incorporated electronic shut-oft
switch will automatically stop the turntable and lift the tone»
arm from the record.

Return the tone-arm by hand to the tone-arm rest. Should you
wish to interrupt record play, push the «OFF» button once,
switching the unit oif and raising the tone-arm from the record.
To replay a particular section ol the record. bring the tone-arm
lever into the raised V. position and then over the relevant
section. Place the lever in the down position 2 . lowering the
arm gently onto the record. It the section to be replayed is
inside the automatic switch-oft region. e. 9.. toward the end
or a 17-cm-diameter record. the «ON» button must be pressed
until a second slight «click» is heard. The turntable will revolve
and the tone-arm may be lowered onto the desired section; the
unit will still automatically switch 0" at the end of the record.

LmDD

At the end of the record bring the tone-arm litt lever to the
raised position and the tone-arm will automatically lift from
the record. Push the «OFF» button to switch the unit all and
place the tone-arm on the tone-arm rest. To replay a particular
section oi the record, bring the tone-arm lever into the raised
position and the tone-arm over the relevant section. and then
the arm~lift lever into the down position. lowering the tone-arm
gently onto the record.

Adluotlng the Speed

An illuminated stroboscope Is built into the turntable edge oi
the L833 DD. The upper ring at the stroboscope is for control
ol 33% rpm and the lower ring is tor 45 rpm at a mains fre-
quency of 50 [Hz]. The two lower rings enable the above speeds
to be controlled at 60 [Hz] mains frequency. The speed can be
adjusted with the control knob. When this knob is in the position
«-~. the turntable revolves approximately 4 We] slower and in
position «+-, approximately 4 [lo] taster. Any desired speed
within the quoted ilmits ls available between the extreme posl
tlons of the knob. This Is important in case. tor example. a
musical instrument is to be played at the same time as a record.
The speed is correctly set when the rim of the turntable corre-
sponding to the correct speed remains stationary. When Lenco-
clean «L» ls being used, the speed must be checked and it
necessary regulated.

Malntananco or Your L 833 DD / L 530 DD

The bearings built into the unit are sell-lubricating and require
no further attention. The stylus should be kept free of tlulf and
dust. A small, soft brush Is recommended for this purpose.

Caution: It is important that brushing of the stylus be done in
one direction only. from the rear edge of the head-shell car-
tridge to the front if damage to the stylus system is to be
avoided. Use of the Lencoclean Record Cleaning System will.
however. keep the stylus clean so that further cleaning Is not
usually necessary. At intervals of approximately one year the
stylus should be inspected under a microscope by an expert.
Worn or damaged styli points cause not only distorted repro-
duction but also serious damage to your records.

Mounting the Record Cleaner LENCOCLEAN «L»

LENCOCLEAN nL~ has been specially constructed tor use with
the L633 DD / L830 DD and provides a way to maintain your
records in perfect condition and guarantees optimum repro-
duction.

Remove the screw in the [ell-hand back corner and In Its place
screw the spindle «C» supplied with the LENCOCLEAN -L».
The exact mounting Instructions are provided with each LEN-
COCLEAN «L».

Screws lor adlustmenl of dust cover lrlction

LENCOCLEAN «L» with Super Tonic

- For reproduction without extraneous noise;

- for minimum wear on records and pick-up stylus:

- for simple care of records.

LENCOCLEAN «L» with Super Tonic for the sake of your
records.

but Cover

The L833 DD / L830 DD Hi-Fi Transcription Unit mounted on
plinth is supplied together with a dust cover. This can be fitted
to the holders at the back of the cabinet. Thanks to a special
construction the dust cover can stay open at every angle down
to 20°, alter which it automatically closes.

When placing the dust cover on the plinth care should be taken
to ensure that both hinges on the dust cover are folded back
simultaneously.
