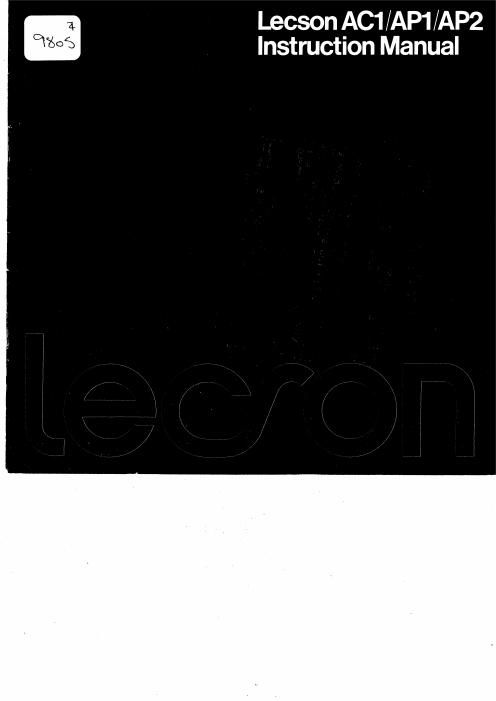

Page 1
Lecson AC1 /AP1 /AP2
> OVéOS
Instruction Manual
Page 2
1. Introduction
The Leoson audio amplifying system combines outstanding
technical performance with simplicity and reliability of operation.
While the control unit, AC1 , and power amplifiers, APl/APZI
are intended to be used together they can be used separately,
with different makes of ancillary equipment.
A typical stereo installation using the Lecson amplifiers is
shown in Fig. 1,
Fig. 1
AP1/AP2
Cassette recorder Reel-reel recorder Tuner TF1
AC1 rear view
Turntable
