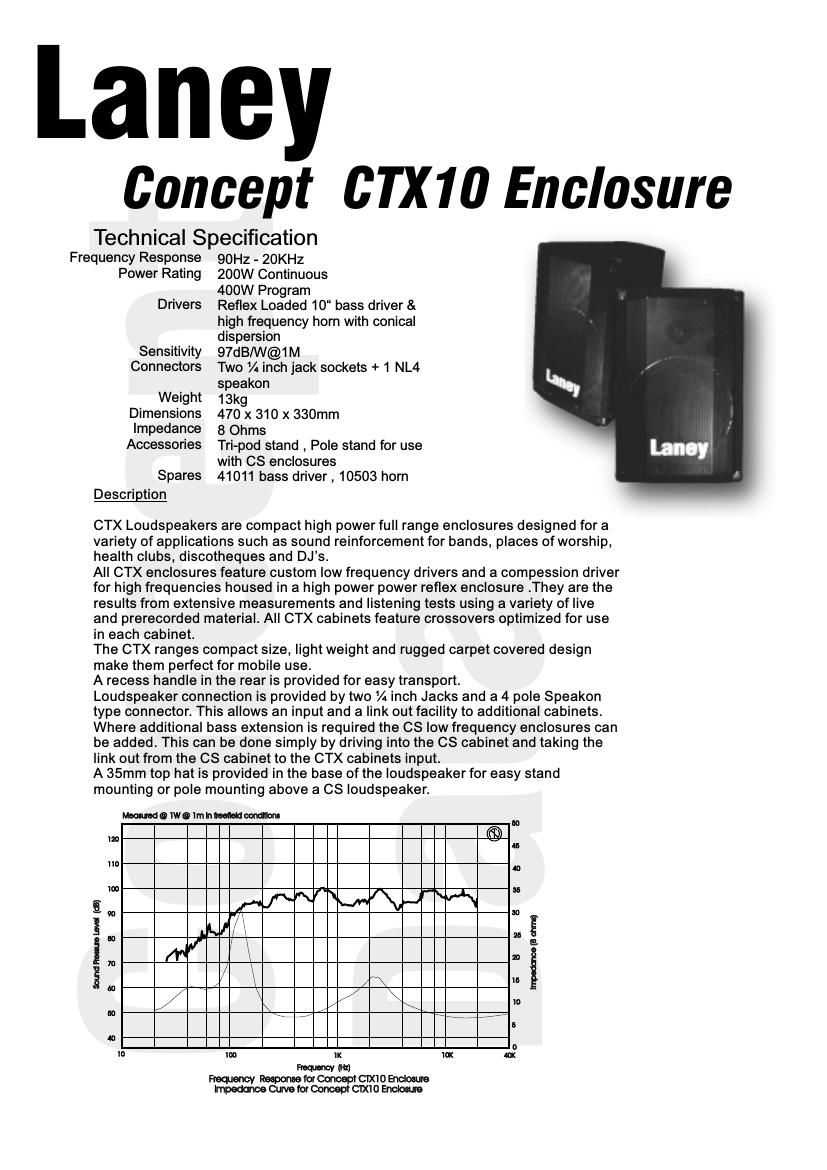

Laney
Concept 0TX10 Enclosure
Technical Specnflcatlon
Frequency Response 90Hz - 20KHZ
Power Rating 200W Continuous
400W Program
Drivers Reflex Loaded 10 bass driver &
high frequency horn with conical
dispersion
Sensitivity 97dB/W@1 M
Connectors Two 1/: inch jack sockets + 1 NL4
speakon
Weight 13kg
Dimensions 470 x 310 x 330mm
Impedance 8 Ohms
Accessories Tri-pod stand , Pole stand for use
with CS enclosures
Spares 41011 bass driver , 10503 horn
Description
CTX Loudspeakers are compact high power full range enclosures designed for a
variety of applications such as sound reinforcement for bands, places of worship,
health clubs, discotheques and DJs.
All CTX enclosures feature custom low frequency drivers and a compession driver
for high frequencies housed in a high power power reflex enclosure .They are the
results from extensive measurements and listening tests using a variety of live
and prerecorded material. All CTX cabinets feature crossovers optimized for use
in each cabinet.
The CTX ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle in the rear is provided for easy transport.
Loudspeaker connection is provided by two % inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. This can be done simply by driving into the CS cabinet and taking the
link out from the CS cabinet to the CTX cabinets input.
A 35mm top hat is provided in the base ofthe loudspeakerfor easy stand
mounting or pole mounting above a CS loudspeaker.
Mmed© lw@1mhl!eelleldcondmom
SoundPreeuelsvel (at!)
E S
S
Impedance in ohms)
s
ID 1) [K "K K
Frequency (H1!
Frequency Response for Concept CTX] 0 Enclosure
Impedance Curve for Concept cm 0 Enclosure
Page 2
Laney
Concept CTX 12 Enclosure
Technical Specnflcatlon
Frequency Response 65Hz - 17KHz
Power Rating 350W Continuous
700W Program
Drivers Reflex Loaded 3 Voice coil 12 bass
driver & 1" exit compression driver on 90°
x 40D horn
Sensitivity 99dB/W@1 M
Connectors Two 1/: inch jack sockets + 1 NL4 speakon
Weight 23Kg
Dimensions 597 x 384 x 397mm
Impedance 8 ohms
Accessories Tri-pod stand , Pole for use with CS
enclosures
Spares 41228 bass driver , 10501 Compression
driver
Description
CTX Loudspeakers are compact high power full range enclosures designed for a
variety of applications such as sound reinforcement for bands, places of worship,
health clubs, discotheques and DJs.
All CTX enclosures feature custom low frequency drivers and a compession driver
for high frequencies housed in a high power power reflex enclosure .They are the
results from extensive measurements and listening tests using a variety of live
and prerecorded material. All CTX cabinets feature crossovers optimized for use
in each cabinet.
The CTX ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle in each side is provided for easy transport.
Loudspeaker connection is provided by two 1/. inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. This can be done simply by driving into the CS cabinet and taking the
link out from the CS cabinet to the CTX cabinets input.
A 35mm top hat is provided in the base ofthe loudspeaker for easy stand
mounting or pole mounting above a CS loudspeaker.
Mmed© lw@1rnhllselleldoondmom
Impedance {a ohms)
ID loo 1K WK Atx
Frequency (H1!
Frequency Response for canoept CTX12 Enclosure
Impedance to: Concept CTX] 2 Enclosure
