Laney

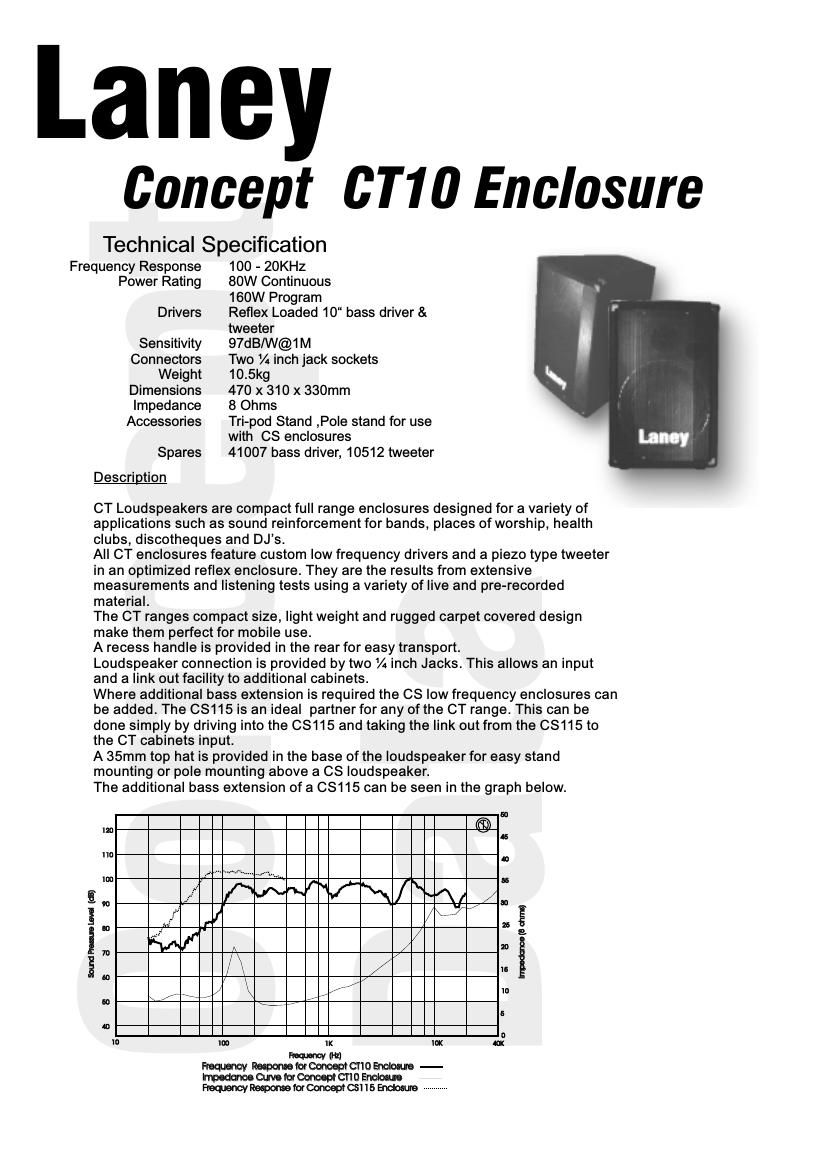

Concept 0T10 Enclosure
Technical Specification
Frequency Response 100 - 20KHz
Power Rating 80W Continuous
160W Program
Drivers Reflex Loaded 10 bass driver &
tweeter
Sensitivity 97d BNV@1 M
Connectors Two 1/4 inch jack sockets
Weight 10.5kg
Dimensions 470 x 310 x 330mm
Impedance 8 Ohms
Accessories Tri-pod Stand ,Pole stand for use
with CS enclosures
Spares 41007 bass driver, 10512 tweeter
Description
CT Loudspeakers are compact full range enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJs.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rearfor easy transport.
Loudspeaker connection is provided by two % inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the 08 low frequency enclosures can
be added. The 08115 is an ideal partnerfor any ofthe CT range. This can be
done simply by driving into the 08115 and taking the link out from the 08115 to
the CT cabinets input.
A 35mm top hat is provided in the base ofthe loudspeakerfor easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a 08115 can be seen in the graph below.
so
45
B
hpodanee (3 ohms]
Freauemv MI)
Frequency Response for Concept CT'I 0 Enclosure -
Impedance Curve for Concept CH 0 Enclosure
Frequency Response for Concept (:51 15 Enclosure ------------
Page 2
Laney
Concept 0T 12 Enclosure
Technical Specification
Frequency Response 85 - 18KHz
Power Rating 100W Continuous
200W Program
Drivers Reflex Loaded 12 bass driver &
dual horn with built in protection
Sensitivity 98dBNV@1 M
Connectors Two 1/4 inch jack sockets
Weight 15kg
Dimensions 545 x 384 x 397mm
Impedance 8 Ohms
Accessories Tri-pod Stand ,Pole stand for use
with CS enclosures
Spares 41227 bass driver, 10514 tweeter
Description
CT Loudspeakers are compact full range enclosures designed f(
applications such as sound reinforcement for bands, places ofwu.s...p, emu.
clubs, discotheques and DJs.
All CT enclosures feature custom low frequency drivers and a piezo type tweeter
in an optimized reflex enclosure. They are the results from extensive
measurements and listening tests using a variety of live and pre-recorded
material.
The CT ranges compact size, light weight and rugged carpet covered design
make them perfect for mobile use.
A recess handle is provided in the rearfor easy transport.
Loudspeaker connection is provided by two % inch Jacks. This allows an input
and a link out facility to additional cabinets.
Where additional bass extension is required the CS low frequency enclosures can
be added. The 08115 is an ideal partnerfor any ofthe CT range. This can be
done simply by driving into the CS115 and taking the link out from the CS115 to
the CT cabinets input.
A 35mm top hat is provided in the base ofthe loudspeakerfor easy stand
mounting or pole mounting above a CS loudspeaker.
The additional bass extension of a 08115 can be seen in the graph below.
40
35
so
Impedance (a ohms)
ID 100 IK IOK M
Frequency (Hz)
Frequency Response tor Concept CH 2 Enclosure
Impedance Curve for CH 2 enclosue
Frequency Response for Curve for 05115 enclosure --
