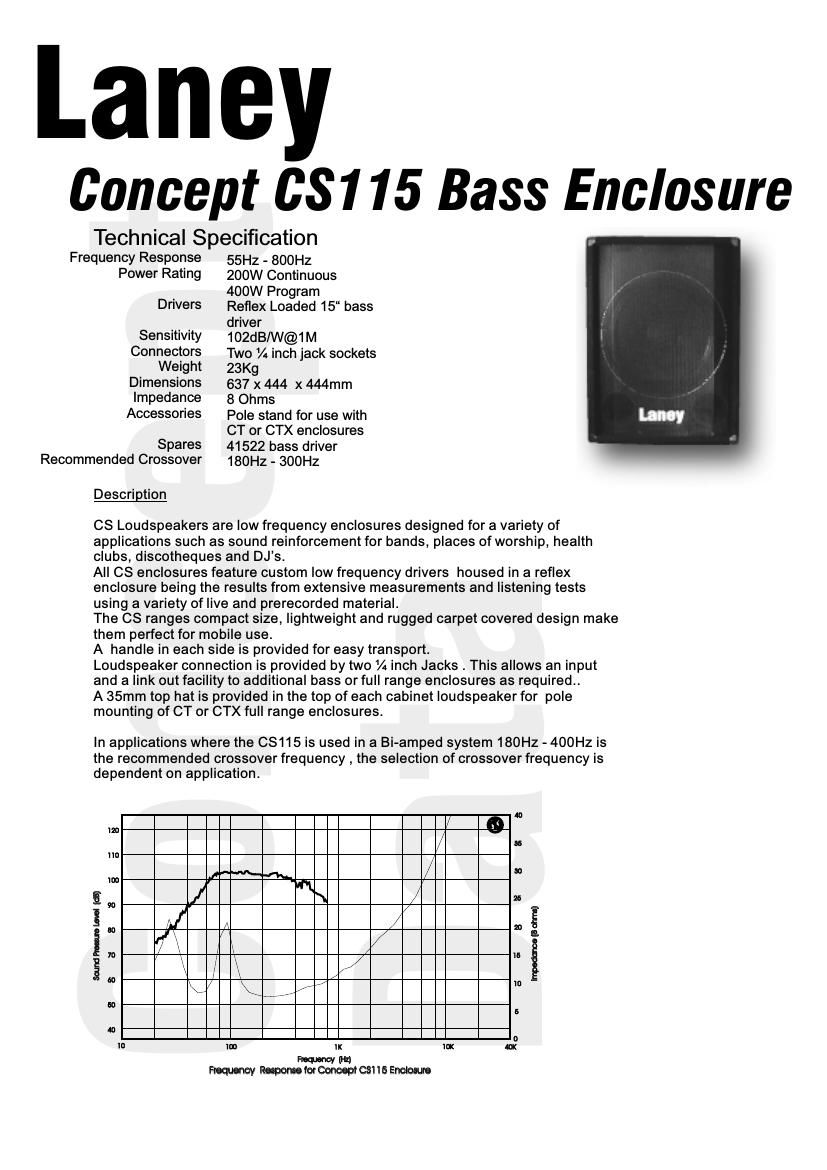

Page 1
Laney
concept 081 15 Bass Enclosure
Technical Specification
Frequency Response
Power Rating
55Hz - 800Hz
200W Continuous
400W Program
Drivers Reflex Loaded 15 bass
driver
Sensitivity 102dB/W@1 M
Connectors Two 1/. inch jack sockets
Weight 23Kg
Dimensions 637 x 444 x 444mm
Impedance 8 ohms
Accessories Pole stand for use with
CT or CTX enclosures
Spares 41522 bass driver
Recommended Crossover 180Hz . 300Hz
Description
CS Loudspeakers are low frequency enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJs.
All CS enclosures feature custom low frequency drivers housed in a reflex
enclosure being the results from extensive measurements and listening tests
using a variety of live and prerecorded material.
The CS ranges compact size, lightweight and rugged carpet covered design make
them perfect for mobile use.
A handle in each side is provided for easy transport.
Loudspeaker connection is provided by two 1/. inch Jacks . This allows an input
and a link out facility to additional bass or full range enclosures as required.
A 35mm top hat is provided in the top of each cabinet loudspeaker for pole
mounting of CT or CTX full range enclosures.
In applications where the 03115 is used in a Bi-amped system 180Hz - 400Hz is
the recommended crossover frequency , the selection of crossover frequency is
dependent on application.
Sound Resale LEM! (an)
knpedmoe [a ohms)
lo 100 IK 10K ACK
Frequemr (H11
Frequency Response for Concept (:81 15 Enclosure
Page 2
Laney
concept 081 18 Bass Enclosure
Technical Specification
Frequency Response
Power Rating
Drivers
45Hz - 450Hz
350W Continuous
700W Program
Reflex Loaded 3 Voice
coil 18 bass driver
Sensitivity 102dB/W@1M
Connectors Two 1/. inch jack sockets
+ 1 NL4 speakon
Weight 37.5Kg
Dimensions 870 x 620 x 440mm
Impedance 8 Ohms
Accessories Pole stand for use with
CS and CTX Enclosures
Spares 41800 Bass driver
Recommended Crossover 120Hz . 280Hz
Description
CS Loudspeakers are low frequency enclosures designed for a variety of
applications such as sound reinforcement for bands, places of worship, health
clubs, discotheques and DJs.
All 08 enclosures feature custom low frequency drivers housed in a reflex
enclosure being the results from extensive measurements and listening tests
using a variety of live and prerecorded material.
The CS ranges compact size, lightweight and rugged carpet covered design make
them perfect for mobile use.
A handle in each side is provided for easy transport.
Loudspeaker connection is provided by two 1A inch Jacks and a 4 pole Speakon
type connector. This allows an input and a link out facility to additional bass orfull
range enclosures as required.
A 35mm top hat is provided in the top of each cabinet loudspeakerfor pole
mounting of CT or CTX full range enclosures.
ln applications where the 08115 is used in a Bi-amped system 120Hz - 280Hz is
the recommended crossoverfrequency , the selection of crossoverfrequency is
dependent on application.
lmpedmoe (5 arms)
Sound Preemie Level (:18)
to I00 IK 10K MK
Frequency (Ht)
Fiequency Response for Concept CS] 18 Enclosure
Impedance H01 for Concept CS] 15 Enclosure
