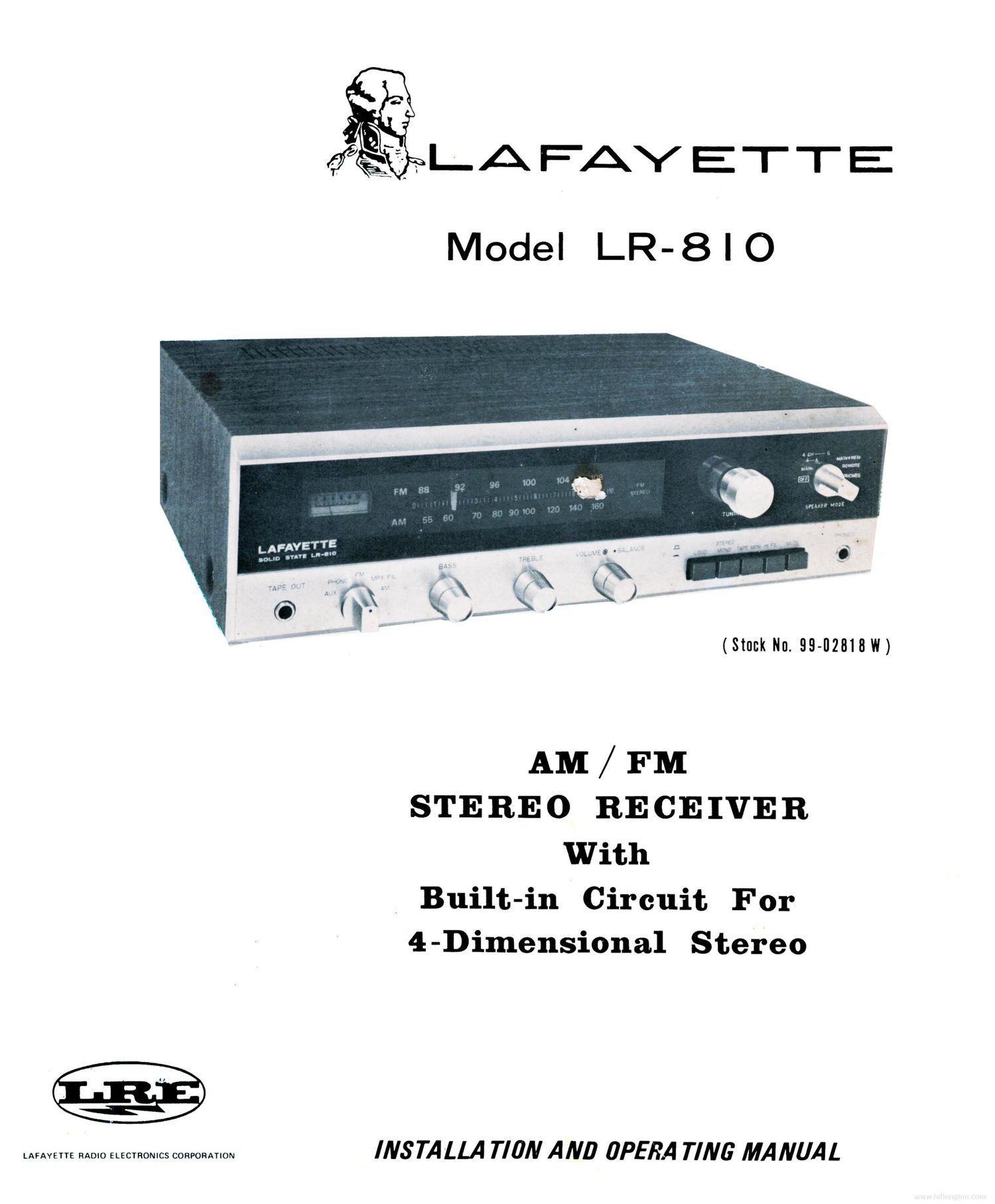

Page 1
Model LR-8 I O
._,; ' (Stock No. 99-02818!!!)
AM / FM
STEREO RECEIVER
With
Built-in Circuit For
4-Dimensional Stereo
m
LAFAYETTE RADIO ELECTRONICS CORPORATION [8 TA LLA TIUN A ND OPERA TING MA NUA L
Page 2
TABLE OF CONTENTS
Technical Specifications .................................................. 3
General Description ..................................................... 5
Installation ........................................................... 5
AC Power .......................................................... 5
Convenience Outlets ................................................... 7
Ground Connection ................................................... 7
AM Antenna ........................................................ 7
FM Antenna ........................................................ 7
FM Antenna Connections ............................................... 8
Connecting Your Associated Equipment .................................... 8
Connecting Loudspeakers ............................................... 9
Placement of the Four Speakers ........................................... 10
Main and Rear Speaker Connections ........................................ 10
Front Speakers ....................................................... 11
Rear Speakers ....................................................... 11
Remote Speakers ..................................................... 11
Stereo Headphones .................................................... 13
Record Players ....................................................... 13
Tape Recorders ...................................................... 13
Recording .......................................................... 13
Playback ........................................................... 13
Description of Receiver Controls .......................................... 14
Operating the Receiver . ................................................ 18"
Interference on FM .................................................... 18
Reducing Noise on FM Stereo ............................................ 18
Operating in the 4-Dimensional Stereo Mode .................................. 18
Speaker Phasing ...................................................... 20
How 4-Dimensional Stereo is Produced ...................................... 24
Protective Output Fuses ................................................ 24
AC Fuse ........................................................ 25
Trouble Shooting Guide ................................................. 25
Returning the Unit for Service ............................................ 26
Shipping Instructions .................................................. 26
1972 BY LAFAYETTE RADIO ELECTRONICS CORPORATION 0 SYOSSET, I..I., N.Y. 11791 0 ALL RIGHTS RESERVED
