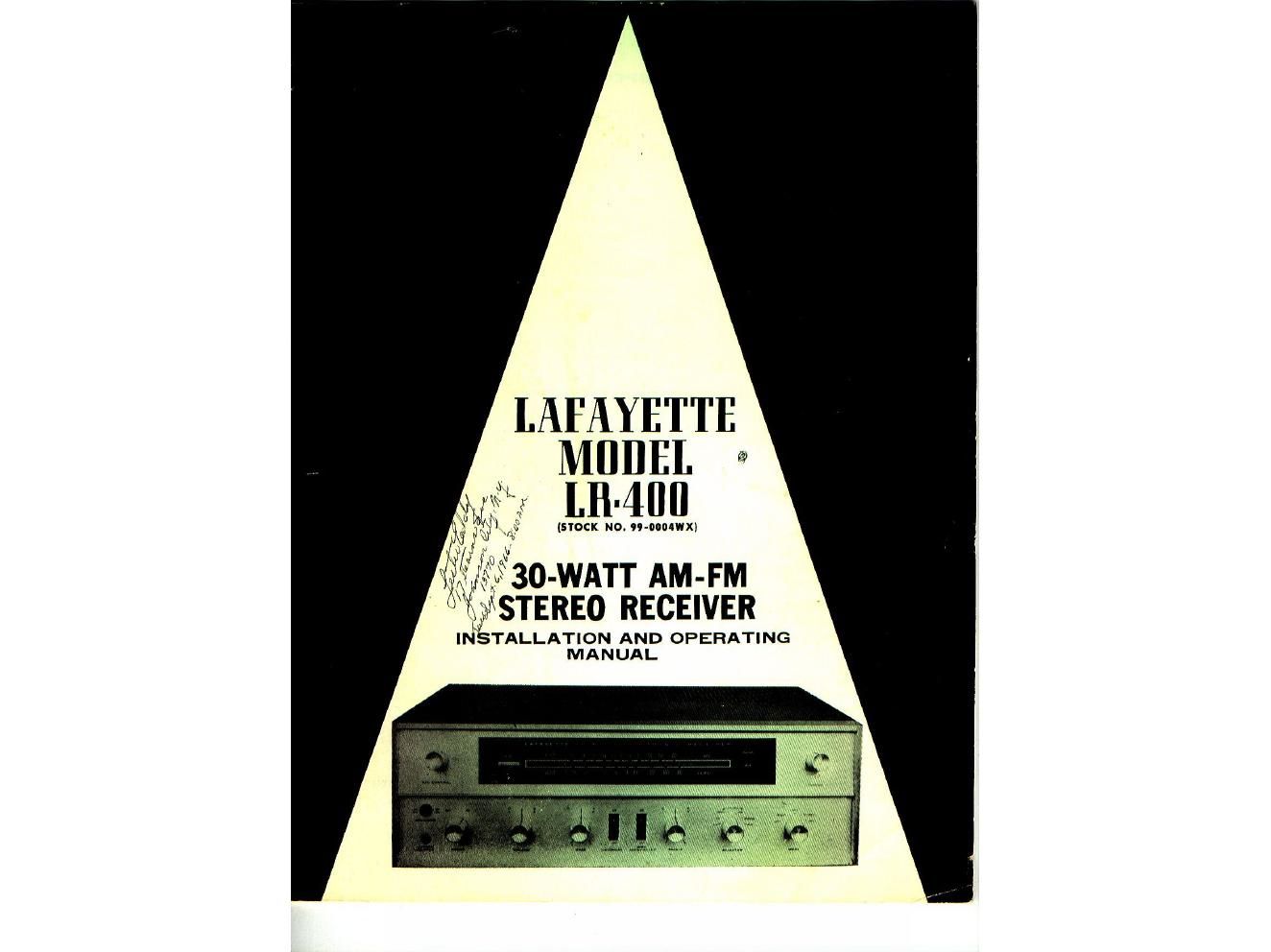

Lafayette lr 4000 owners manual
This is the 15 pages manual for lafayette lr 4000 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lafayette lr 4000 owners manual (Ocr-read)
Page 2
GENERAL SPECIFICATIONS
r:
TUNING RANGE ........................... FM : as _ 108 Mo
_ AMi 550-1500 Kc
POWER OUTPUT ......................... 30 watts (15 each channel)
I
FUNCTIONS FM Mono. FM Stereo and AM reception. Inputs
for Stereo Phone (magnetic 8: ceramic) plus stereo .
Aux inputs. I. \
OUTPUTS ............................. Stereo tape recorder outputs; Stereo loudspeaker
outputs (8 or 16 ohms impedance); Stereo head-
phones (4, 8 or 16 ohms),
TUBE COMPLEMENT ....................... 17 tubes, 9 diodes
1 - 6CW4
1 - SBEG
3 - SEAS
1 - SAW}
1 - EM84
1 -- SBLB/ECFao
2 - 6AQ8/ECC85
3 - 12AX7/ECC83
4 --- 6BMB/ECLBZ
2 - Silicon Diodes
7 - Germanium Diodes
POWER REQUIREMENTS ................... 105-120 volts, 50/50 cycles AC
POWER CONSUMPTION .................... 160 watts 4
DIMENSIONS ............................. Overall, including all protrusions and legs - L
17% W x1314 D x 5% 1'!
NET WEIGHT ............................... 27 lbs.
ENTIRE comsms cowuaHm 1964 BY urnnrs RADIO nscmoNIcs CORPORATION a 111 JERICHO rusurum, syossm, L.x.,
n. Y.
IM-383 5-36 L5 MH
2
