he LR-QOQO

90 Watts of Power Plus Dolby FM Reception

- 90 Watts RMS ' Mike Mixing
- Dolby FM - Convenience Controls

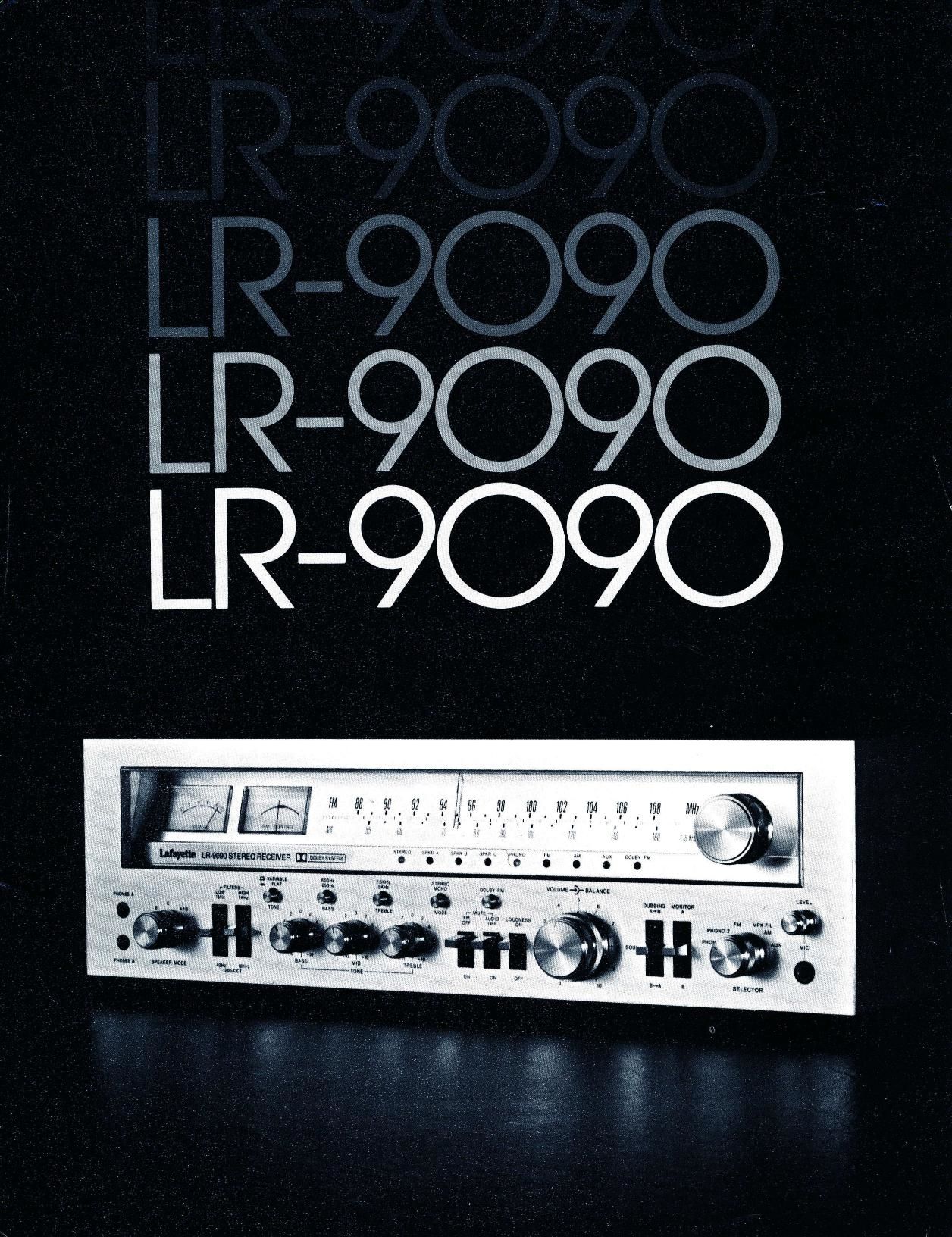

The Powerhouse LR-9090 AM/FM/Stereo FM and
Dolby FM receiver has the most up»to-the-minute fea-
tures: dual tuning meters, a stereo program indicator
and positive phase-lock-Ioop circuitry and multiplex fil-
tering. The FM Dolby noise reduction system enables
you to get the most from the new Dolby broadcasts.
The Powerhouse LR-9090 has the most power weve
ever offered. And weve added features youve never
had on any receiver. The LR-9090 has a mike mixing
feature that turns the 9090 into a mixing studio. Com-
bine live mike input with other sources to get balanced
recordings. The dual tape monitors have Lafayettes
tape dubbing feature.

The input section of the advanced LR-9090 provides
two phone and two tape inputs for the kind of versatility
that means this receiver is ahead of its time.

The convenience controls enable you to get the most
from your system. The tone defeat switch lets you hear
the sound direct from the source, but when you want to
tailor the sound use the separate detent controls for
volume, balance and base, treble plus midrange. Bass
and treble controls have dual range turnovers. There
are dual range filters for high and low frequencies. Con-
venience controls also include audio mute, loudness
switches and push/connect terminals for up to 3 pairs of
speakers.

The LR-9090 combines power, features and control to
make it the working heart of your stereo system. The
LR-9090 can take you as far into music as you want to

go.

Amplifier Section

POWER OUTPUT: 90 watts per channel minimum
RMS. Both channels driven at 8 ohms from 20-
20,000 Hz with no more than 0.1% T.H.D.

TOTAL HARMONIC DISTORTION: 0.1% at rated
output

HUM AND NOISE: Aux, 480 dB;Tape Play, 780dB;
Mag Phone, 765 dB (Low sensitivity), -60 dB
(High sensitivity)

INPUT SENSITIVITY (for rated output): Mag Phono,
2.5 mV (Hi), 5.0 mV (Lo); Aux, 150 mV; Tape Play
A, 150 mV; Tape Play B, 150 mV; Mic x 2,6 mV

MAXIMUM INPUT VOLTAGE: Aux, 10 V; Mag Pho-
no, 180 mV (Hi), 360 mV (Lo); Tape Play, 10 V,
Mic x 2, 420 mV

TONE CONTROL RANGE: Bass, :10 dB (50 HZ/
100 Hz), Turnover frequency, 250 Hz/500 Hz;
Midrange, :6 db (1 KHZ); Treble, :10 dB (2.5
KHz/5 KHz), Turnover frequency 10 KHz/2O KHz

TONE CONTROL SWITCH: Switchable flat and vari-
able

AUDIO MUTE: 720 dB

LOUDNESS SWITCH: 50 HZ, +12 dB; 10 KHZ, +3.5
dB

HIGH FREQUENCY FILTER (73 dB): 7 KHZ, 12
KHz/12dB Oct.

LOW FREQUENCY FILTER (s3 dB): 15 Hz, 40 HZ/
12 dB Oct.

TAPE OUTPUT LEVEL: 0.15 V output at rated input
sensitivity
WEIGHT:4O lbs.
FM Section

USABLE SENSITIVITY: Mono, 10.3 dBf; Stereo,
21.0 dBf

IHF (58) SENSITIVITY: Mono, 1.8 ,.,V

50 dB QUIETING SENSITIVITY: Mono, 16.5 dBf:
Stereo, 39.3 dBf

SELECTIVITY (alternate channel): 80 dB
CAPTURE RATIO: 1.25 dB

FM DISTORTION*: 1 KHz, 0.2% (mono); 0.4%
(stereo)

STEREO SEPARATION: 1 KHz, 40 dB

FREQUENCY RESPONSE (30 Hz to 15 KHZ): +0.5
dB, 71.5 dB

SIGNAL NOISE RAT|O*: 72 dB (mono); 67 dB
(stereo)

MUTING THRESHOLD* *: 14 dBf

SPURIOUS RESPONSE REJECTION: 90 dB

IF REJECTION**:90 dB

IMAGE REJECTION: 80 dB

TAPE OUTPUT LEVEL*: 0.77 volts

ANTENNA: 75 ohms unbalanced and 300 ohms bal-
anced input for external antenna

At 98 MHZ, 65 dBf input signal, 100% mod.
A198 MHZ
AM Section

SENSITIVITY (IHF)**: 20 ,uV (ant terminal)

IMAGE REJECTION: 60 dB at600 KHz

SELECTIVITY (alternate channel): 45 dB

AUDIO FREQUENCY RESPONSE: Up to 3700 Hz,
75 dB

SIGNAL NOISE RATIO: 45 dB
TAPE OUTPUT LEVEL*: 0.3 volts

ANTENNA: Built-in adjustable ferrite bar, plus pro-
vision for external antenna

At 1 MHz, 1 mV input signal, 30% mod.
Atl MHz
