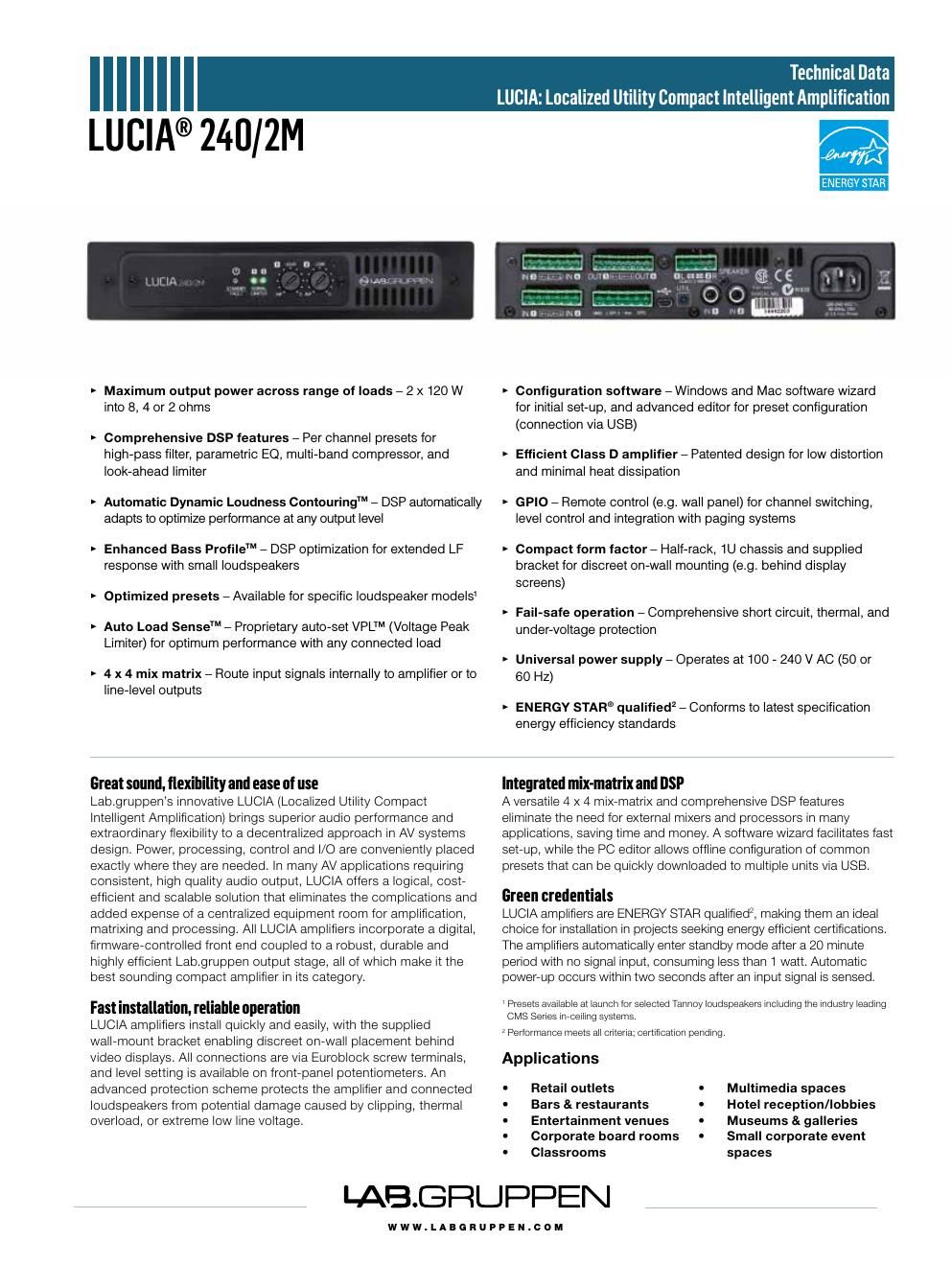

Specifications LUCIA 240/2M Item no. TDS-LUCIA2402M_V3 - 06.06.2016 General Number of powered channels2 Total output all channels driven 240 W Ma x output voltage per channel 1) 43.8 V peak Ma x. output current per channel 7. 8 A r m s Max. Output Power (all ch.s driven) 2 ohms 120 W 4 ohms 120 W 8 ohms 120 W 16 ohms 60 W Performance THD 20 Hz - 20 kHz at 1 W into 8 ohms <0.3% THD at 1 kHz and 1 dB below clipping <0.2% Signal To noise ratio into 8 ohms >101 dBA Channel separation (Crosstalk) at 1 kHz >60 dB Frequency response 5 Hz - 22 kHz Input impedance 10 kOhm Input common mode rejection, CMR 40 dB Gain, Sensitivity and Limiters VPL for 16 ohm mode 44 V VPL for 8 ohm mode 44 V VPL for 4 ohm mode 31 V VPL for 2 ohm mode 22 V Sensitivity, balanced input 4 dBu / 1.23 Vrms Sensitivity, RCA input -2 dBu / 0.62 Vrms Input headroom for clip, balanced 2) 12 dBu / 3.09 Vrms Input headroom for clip, RCA 2) 6 dBu / 1.55 Vrms Connectors and switches Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced Input connectors (ch 1 & 2) Unbalanced RCA type Output connectors (per ch.) 2-pin detachable screw terminals GPI (power control input) 3) 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain. GPO (power state output) 3) Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power of f RS232 4) Can be controlled and monitored by third par ties via RS232 using both the GPI pins USB For firmware update and configuration for the matrix models Cooling One fan, no filter required, front-to-rear air flow, temperature controlled speed Can stay of f if the sustained power average stays below 2 x 6 W and the surrounding temperature is below 25 degrees C Auto mode The power state is controlled automatically with the audio signal Level adjustment (per channel) Front panel potentiometer, detented from -inf to 0 dB Processing features Inputs processing block 4) 4 EQ sections per input Mix-matrix routing block 4) 4 in - 4 out mix-matrix controllable from GPI Outputs processing block 5) 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation) Two line level outputs 5) Each capable of driving 6 LUCIA units in parallel Latency from any input to any output 9.15 ms Power Nominal voltage 100 - 240 VAC Operating voltage 85 - 265 VAC Standby consumption <1 W Mains connector IEC inlet Dimensions W: 216 mm (8.5), H: 44 mm (1.7), D: 280 mm (11) Weight 1.9 kg (4.2 lbs.) Finish Black aluminum front and black steel chassis Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR Note 1): Into 8 ohms and higher Note 2): An analog sof t limit will be engaged on the input above this level to reduce the clip distor tion Note 3): Can be configured for dif ferent functionality via USB Note 4): DSP settings determined by settings downloaded from the Application Browser sof tware; not configurable on the unit itself Note 5): Noise levels typically allow daisy chaining of 3 LUCIA amplifiers without issues All specifications are subject to change without notice. WWW.LABGRUPPEN.COM
