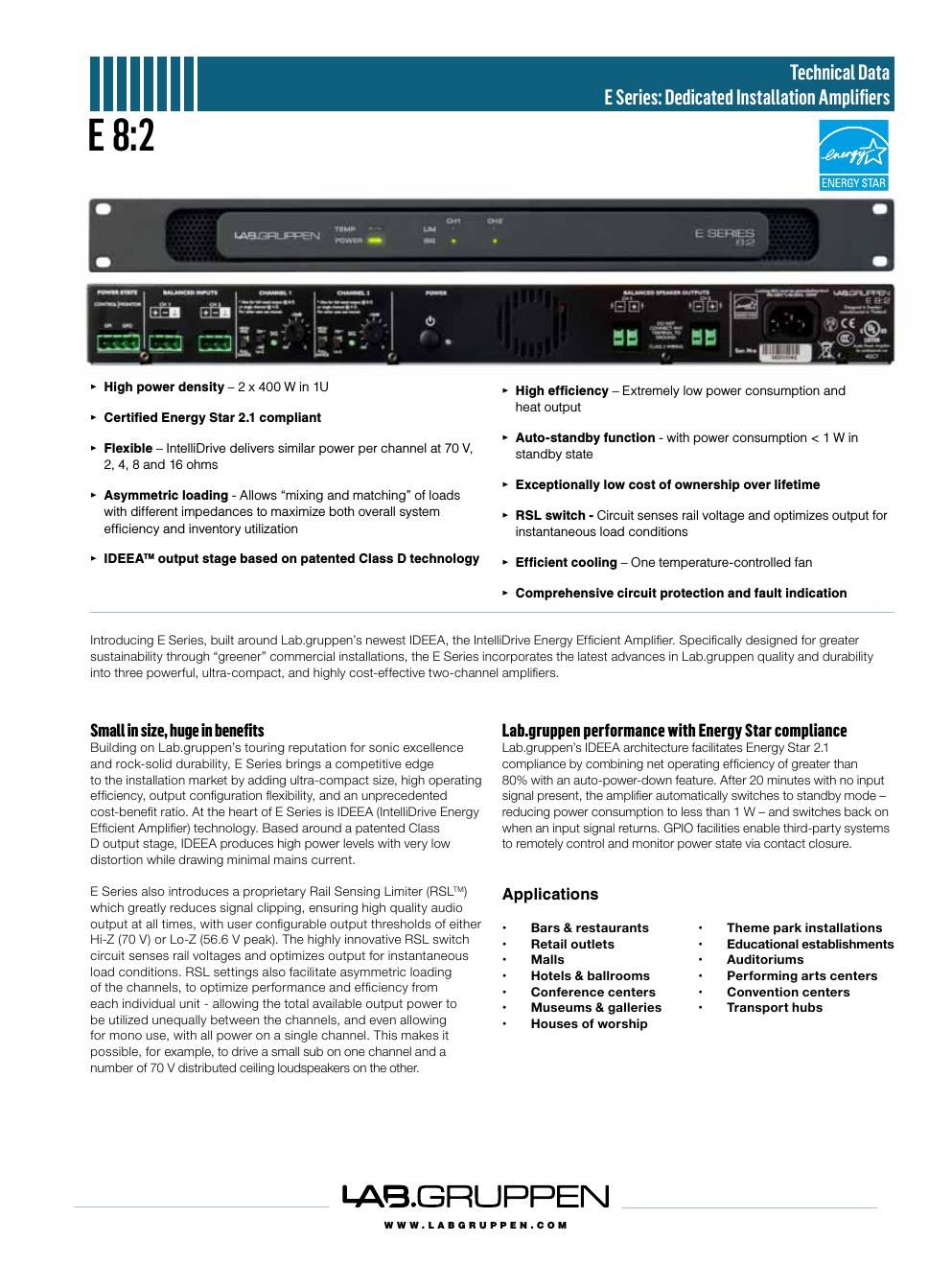

Specifications E 8:2 General Number of channels2 Total output all channels driven 800 W Peak output voltage per channel 100 V / 70 Vrms Max. output current per channel 16 Arms Max. Output Power Per ch. (all ch.s driven) 2 ohms (Lo-Z mode) 400 W 4 ohms (Lo-Z mode) 400 W 8 ohms (70 V mode) 400 W 16 ohms (70 V mode) 290 W 70 V (70 V mode) 400 W 8 ohms (Lo-Z mode) 200 W 16 ohms (Lo-Z mode) 100 W Performance THD 20 Hz - 20 kHz for 1 W <0.1% THD at 1 kHz and 1 dB below clipping <0.05% Signal To Noise Ratio >112 dBA Channel separation (Crosstalk) at 1 kHz >70 dB Frequency response 2 Hz - 40 kHz Input impedance 20 kOhm Common Mode Rejection (CMR) 50 dB Output impedance 25 mOhm Gain, Sensitivit y and Limiters Limit and gain switch (per channel) 2 pos: Lo-Z and 70 V VPL for 70 V mode 100 V VPL for Lo-Z mode 56.6 V Sensitivity for 70 V out in 70 V mode 4 dBu Sensitivity for full power into 4/8/16 ohms in Lo-Z mode 4 dBu Gain in 70 V mode 35.2 dBu Gain in Lo-Z mode 30.3 dB Level adjustment (per channel) Rear panel potentiometer, detented from -inf to 0 dB Connectors and switches Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced Output connectors (per ch.) 2-pin detachable screw terminals High pass filter Fixed at 35 Hz, switchable per channel Power control Can be used to go between standby and ON GPI (power control input) Contact closure type, 2-pin detachable screw terminal, controls the power state GPO (power state output) Contact closure type, 2-pin detachable screw terminal, for external monitoring of the power state Cooling Single fan, front to rear air flow, no filter required, temperature controlled speed Power Nominal voltage 100 - 240 VAC Operating voltage 70 - 265 VAC Standby consumption <1 W Mains connector IEC inlet Dimensions W: 483 mm (19), H: 44 mm (1 U), D: 276 mm (10.9) Weight 4.1 kg (9 lbs.) Finish Dark grey aluminium front and black steel chassis Approvals CE, PSE, UL 60065, CSA-C22.2 No 60065-03, FCC par t 15 Class A, EN 55103-1, EN55103-2, ROHS, Energy Star 2.1 Warranty 3 years, components and factor y workmanship. See full warranty statement. All specifications are subject to change without notice. www.labgruppen.com Item no. TDS-E82_V1.6 - 30.01.2013 GPI GPO PO WER CHANNEL 1 CHANNEL 2 -10dB -10dB SIG HIGH P ASS Lo-Z70V FULL RANGE SIG HIGH P ASS Lo-Z70V FULL RANGE -Inf 0 -10dB -Inf 0 -10dB 00-240V 50-60HzLocking IEC; must be gr ounded/ear thed Ser. N:o Rem oved! BALANCED SPEAKER OUTPUTS BALANCED INPUTS PO WER ST ATECH 1 CH 2 CH 1 CH 2 CONTR OL MONIT OR E 12:2 DO NOT CONNECT ANY TERMINAL T O GR OUND . CLASS 2 WIRING Audio P ow er Amplifier f or pr ofessional use Designed in Sw eden man ufactur ed in Thailand 4GC7 GPI GPO PO WER CHANNEL 1 CHANNEL 2 -10dB -10dB SIG HIGH P ASS Lo-Z70V FULL RANGE SIG HIGH P ASS Lo-Z70V FULL RANGE -Inf 0 -10dB -Inf 0 -10dB 00-240V 50-60HzLocking IEC; must be gr ounded/ear thed Ser. N:o Rem oved! BALANCED SPEAKER OUTPUTS BALANCED INPUTS PO WER ST ATECH 1 CH2 CH 1 CH 2 CONTR OL MONIT OR E 8:2 DO NOT CONNECT ANY TERMINAL T O GR OUND . CLASS 2 WIRING Audio P ow er Amplifier f or pr ofessional use Designed in Sw eden man ufactur ed in Thailand 4GC7 GPI GPO PO WER CHANNEL 1 CHANNEL 2 -10dB -10dB SIG HIGH P ASS Lo-Z70V FULL RANGE SIG HIGH P ASS Lo-Z70V FULL RANGE -Inf 0 -10dB -Inf 0 -10dB 00-240V 50-60HzLocking IEC; must be gr ounded/ear thed Ser. N:o Rem oved! BALANCED SPEAKER OUTPUTS BALANCED INPUTS PO WER ST ATECH 1 CH 2 CH 1 CH 2 CONTR OL MONIT OR E 4:2 DO NOT CONNECT ANY TERMINAL T O GR OUND . CLASS 2 WIRING Audio P ow er Amplifier f or pr ofessional use Designed in Sw eden man ufactur ed in Thailand 4GC7
