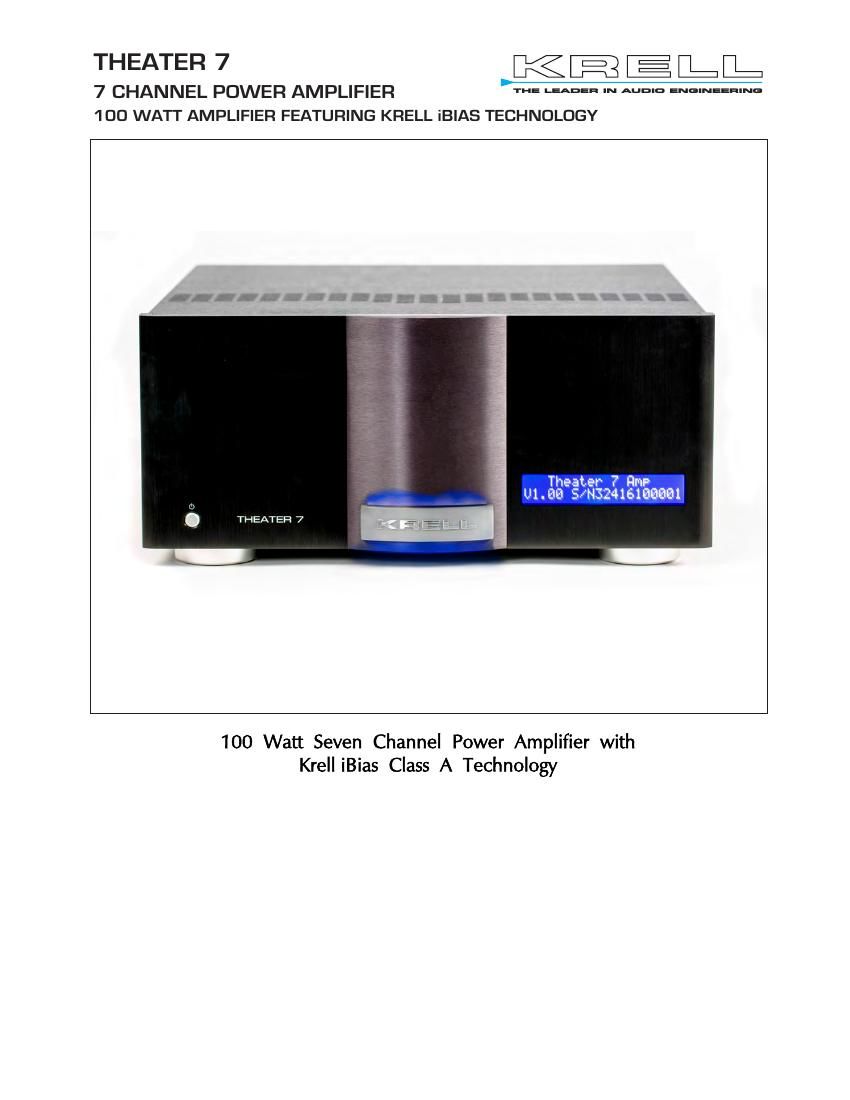

Krell Theater 7 Brochure

Page 1

SPECIFICATIONS - 100 Watts into 8 Ohms 7 pr 5-way binding postsThe Theater 7 Amp uses iBias technology to maintain Class A operation up to 100 watts into 8 ohms for the left, right, and center channels and up to 50 watts for the four surround channels. This provides the critical front channels with high bias current to produce that lush, open Class A sound while also minimizing the heat output and power consumption of the whole amplifier. The amplifier design uses Krell Current Mode technology that is fully differential and discrete in the critical gain stages. This results in a highly linear and extended frequency response, well beyond the range of hearing, for smooth effortless highs and tight high impact bass. Amplifier configuration options include display brightness timeout and inactivity timeout. The inactivity timeout conserves energy by placing the amplifier in stand-by when there is no signal for longer than the selected time period. Firmware updates can also be initiated directly from the web server. Circuitry Highlights Krell iBias Class A technology allows our latest amplifiers to run in full Class A mode to full power while minimizing heat generation. Power Supply Highlights The power supply consists of two 700VA toroidal transformers and 160,000uF of capacitance. This is shared among all the channels so all of that power is available to the channels with the most demand. In real world conditions the left, right, and center channels require the lions share of the power so this gives the Theater 7 a more effective power supply than other amplifiers that have smaller dedicated power supplies for each channel. Feature Highlights Network connectivity brings convenience, monitoring, and reporting to end users from any smartphone, tablet, or laptop. Output current, fan status, and operating temperature are monitored in real time for conformance with preset limits. Any faults are reported on the front panel and also on the web server interface. Additionally, the amplifier will send notification of any operational anomalies to the e-mail addresses entered on the web server interface. - - 7 ea - Single-ended RCA and Balanced XLR Inputs - - 1 RJ 45 Ethernet Port - - 1 12V Trigger Input - - - - Optional Rack Mount Kit - - 17 .1 in W, 7.65 in H, 21 .10 in D - - 43.4 cm W, 19. 4 cm H, 53.6 cm D - - Weight: 70 lbs, 31.8 kg DESIGN Krell ® is a registered trademark of Krell Industries, LLC., and is restricted for use by Krell Industries LLC., its subsidiaries, and authorized agents. All other trademarks and trade names are registered to their respective companies. © 2016 by Krell Industries, LLC. All rights reserved. THE LEADER IN AUDIO ENGINEERING Krell Industries, LLC. - 45 Connair Road - Orange, CT 06477-3697 USA Tel: 203-298-4000 - Fax: 203-799-9796 - Sales Dept: 203-298-4010 - contact@krellonline.com - www.krellonline.com All operational features, functions, specifications, and policies are subject to change without notice. Krell iBias Class A amplifiers are the first to deliver the rich musicality of Class A amplifiers and the uncompromised dynamics of classic Krell amplifiers with greater efficiency and low power consumption than conventional Class A amplifiers. THEATER 7 100 WATT 7 CHANNEL POWER AMPLIFIER
