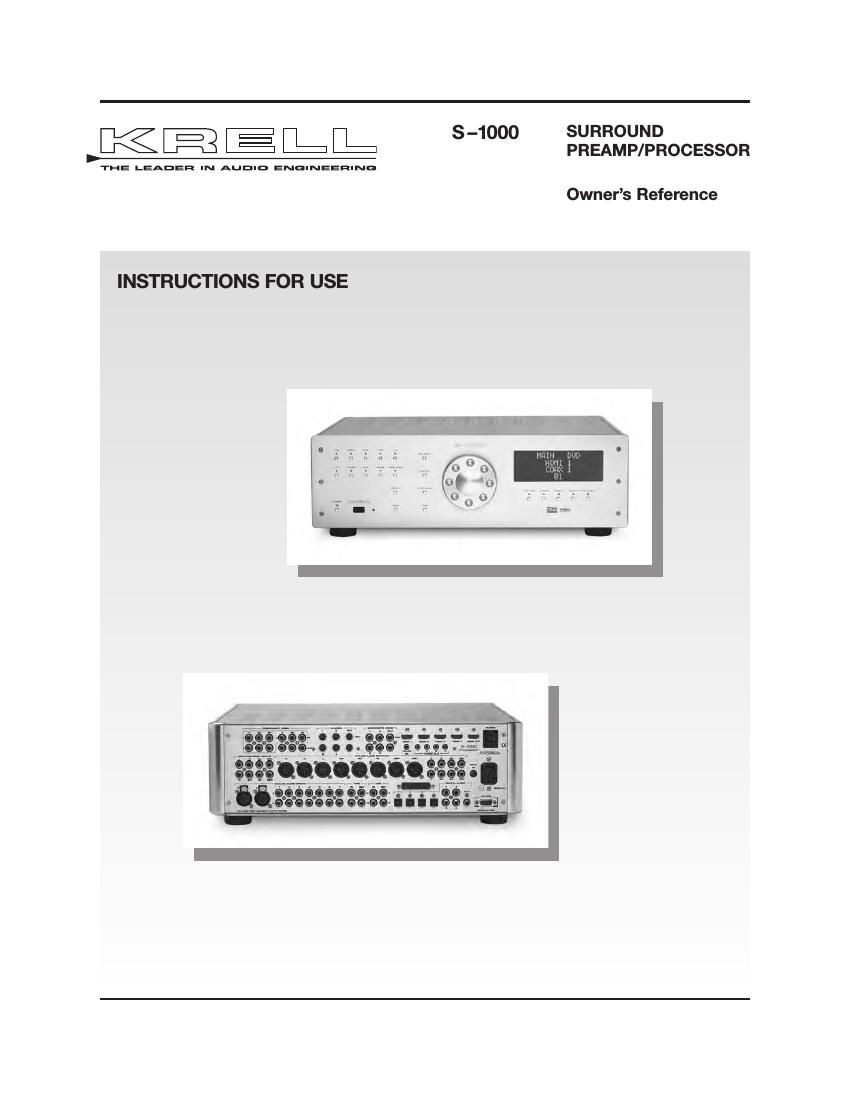

S –1000 Surround Preamp/Processor Instructions for Use v07.0 Krell Industries, Inc. 45 Connair Road Orange, CT 06477 3650 USATEL 203 298 4000 FAX 203 891 2028 E MAIL krell@krellonline.comWEBSITE http://www.krellonline.com ©2007 by Krell Industries, Inc. All rights reserved. P/N 309958 DTS Digital Surround ™ is a discrete 5.1 channel digital audio format available on CD, LD, and DVD software which consequently cannot be decoded and played back inside most CD, LD, or DVD players. For this reason, when DTS encoded software is played back through the analog outputs of the CD, LD, or DVD player,excessive noise will be exhibited. To avoid possible damage to the audio system, proper precautions should be taken by the consumer if the analog outputs are connected directly to an amplification system. To enjoy DTS Digital Surround ™ playback, an external 5.1 channel DTS Digital Surround ™ decoder system must be connected to the digital output (S/PDIF, AES/EBU, or TosLink) of the CD, LD, or DVD player. This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. Krell Smart System Setup™ is a trademark of Krell Industries, Inc. DTS, DTS Digital Surround, DTS ES Extended Surround, and Neo:6 are registered trademarks of Digital Theater Systems, Inc. TosLink is a trademark of Toshiba Corporation. Manufactured under license from Dolby Laboratories. "Dolby," "ProLogic," and the double D symbol aretrademarks of Dolby Laboratories. Confidential Unpublished Works. Copyright 1992–1997 Dolby Laboratories, Inc. All rights reserved. HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.All other trademarks and trade names areregistered to their respective companies. CONTACT INFORMATION This product complies with the EMC directive (89/336/EEC) and the low voltage directive (73/23/EEC). IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 8. Unplug this apparatus during lightning storms or when unused for long periods of time. 9. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,such as a power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,or has been dropped. 10. The S –1000 must be placed on a firm, level surface where it is not exposed to dripping or splashing. 11. The ventilation grids on the top and bottom of the S –1000 must be unobstructed at all times during operation. Do not place flammable material above or beneath the preamplifier. 12. Before making connections to the S–1000, ensure that the power is off and other components are in mute or stand by mode. Make sureall cable terminations are of the highest quality, free from frayed ends, short circuits, or cold solder joints. 13. THERE ARE NO USER SERVICEABLE PARTS INSIDE THE S –1000 SUR ROUND PREAMP/ PROCESSOR. Please contact Krell if you have questions not addressed in this guide.
Page 2
Contents Krell S –1000iii INTRODUCTION 1 DEFINITION OF TERMS 2 UNPACKING 4 PLACEMENT 5 AC Power Guidelines 5 GETTING STARTED 6 FRONT PANEL DESCRIPTION 8 REMOTE CONTROL DESCRIPTION 13 Battery Installation and Removal 13 BACK PANEL DESCRIPTION 16 CONNECTING THE S–1000 TO YOUR SYSTEM 19 First: Connect Analog and Digital Sources 19 Next: Connect Video Sources 20 Last: Connect Amplifiers and Sources21 OVERVIEW: SYSTEM CONFIGURATION AND NAVIGATION 22 Configuration Steps 22 Navigation Conventions 23 SYSTEM CONFIGURATION24 Accessing the Main Menu24 Step 1: Configure Loudspeakers 25 Step 2: Configure Devices 30 Step 3: ConfigureLevel Adjustment39 Step 4: Operation 47 SAVING AND RECALLING CUSTOMIZED SETTINGS AND RESTORING THE FACTORY DEFAULT SYSTEM SETTINGS 57 OPERATING THE S–1000 58 On/Off/Stand by 68 Tape Input and Output 58 Simulcast 59 APPENDIX: OPERATING MODES FOR THE S–100060 Automatically Detected Modes60 User Selectable Modes61 WARRANTY 63 RETURN AUTHORIZATION PROCEDURE 65 SPECIFICATIONS 66 67 Page
