Extracted text from krell resolution owners manual (Ocr-read)

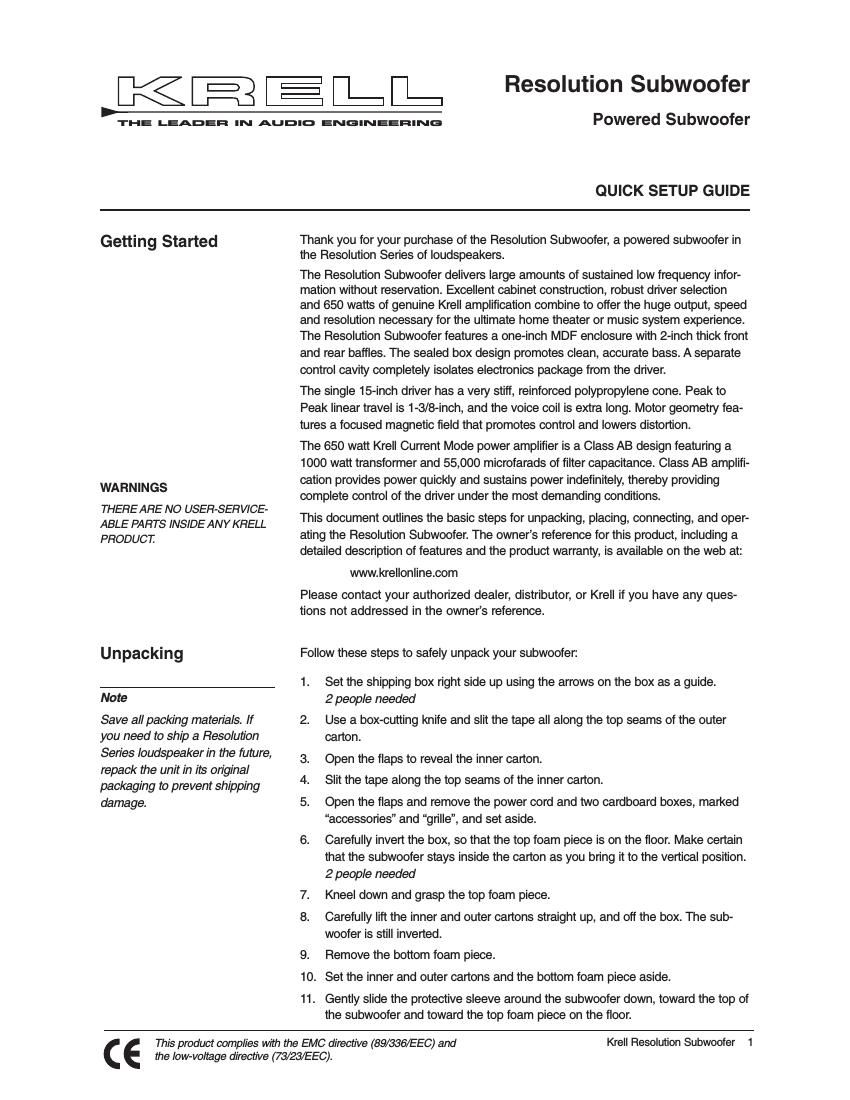

Page 1
2 Krell Resolution Subwoofer Notes Be careful not to scratch the loudspeaker cabinet with thegrille locator pins. Clean the grille periodically to remove accumulated dust.Gently wipe the grille from top to bottom using a soft, dry, lint free cloth. Do not use rubber condi tioner or solvent. Attach the grille to the loudspeaker before you play music. The Resolution Subwoofer has a snap on grille, which is comprised of grille cord strung between 2 metal grille blocks. The grille is shipped in the cardboard box marked grille. Follow These Steps to Attach the Subwoofer Grille: 1.Grasp the grille blocks on each end of the grille and lift the grille out of the grille box. Place the grille block with the Krell logo on the bottom front of the sub woofer; and place the other grille block on the top front. 2. Gently guide the grille locator pins into the 3 grille holes on the bottomfront of the subwoofer. 3. Grasp the remaining grille block, allowing it to rest between thethumb and forefinger of each hand. 4.Pull firmly to stretch the grille cords, until the grille locator pins align with the 3 grille holes on the top front ofthe subwoofer. 5. Gently guide the pins into the grille holes. You hear a click when the grille is in place. Detach the Grille Before You Repack the Subwoofer: 1.Grasp the grille block attached to the top front of the subwoofer. 2. Gently pull the grille block straight out until the grille locator pins slideout of the grille holes. 3.Remove the grille block with the Krell logo from the bottom front of the subwoofer. 4. To protect the grille, place it in the grille box until you are ready to rein stall it. This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. All rights reserved. All othertrademarks and trade names are registered to their respective companies. © 2004 by Krell Industries, Inc., All rights reserved 12. Locate the spikes, rubber feet and locking washers, in the small cardboard box marked accessories. 13.Choose the set of feet you want to use on your subwoofer. 14. Thread the washers onto the feet. 15. Screw each foot/washer assembly into the 4 screw holes located on the bot tom of the subwoofer. 16. Carefully invert the subwoofer so that it is resting on the feet, right side up. 17. Spin the washers counterclockwise up the shaft of each foot to fix the height of the foot. 18. Remove the top foam piece and protective sleeve. You are ready to position the subwoofer in the listening area. 2 people needed Each Resolution Subwoofer requires at least 2 inches (5 cm) of clearance on each side and in front, and at least 2 inches (5 cm) of clearance above and to the rear of the subwoofer for adequate ventilation. The subwoofer delivers excellent per formance in nearly any location in the listening room. Two placement options fol low: Option 1: Stereo. Place the Resolution Subwoofer midway between the left and right loudspeakers. Option 2: Home Theater. Place the subwoofer in a corner of the room, preferably one foot from any wall. AC Power Guidelines. The subwoofer has superb regulation and does not require a dedicated AC circuit. Operate the subwoofer only with the power cord supplied. Placement To Install Feet On Your Loudspeaker Position the loudspeaker in the listening area before attachingthe grille. Each Resolution Subwoofer is provided with 2 sets of feet: 4spikes and 4 rubber feet. Thesharp, pointed spikes are idealfor carpeted floors. The rubberfeet protect tile and wood floors. Unpacking , continued To Attach/Detach the Subwoofer Grille (not illustrated)
Page 2
Krell Resolution Subwoofer 3 Power Button Switches the subwoofer from stand by to the operational mode. Signal Sensing Button When the button is in the up position, signal sensing is on. The subwoofer willautomatically revert to the operationalmode when it detects an audio signal atany of the audio inputs. It returns to stand by after 4 minutes of inactivity.When the button is in the down position,signal sensing is deactivated. High pass or Low pass Frequency Adjust Buttons Press buttons 1 and 2 to select 1 of 4 frequencies for high pass and low passfilters. Place each button in the up ordown position using the frequencyadjust guide. Frequency Adjust Guide The numeric legend shows the position of the 2 frequency adjust buttons need ed for each given frequency. Level Volume control. Stereo or Mono/LFE Input Switch Activates and deactivates inputs. Low Pass or LFE Filter Switch Activates and deactivates filters. Normal or Inverted Phase Begin playing a music selection. Select the normal or inverted phase button.Listen to select the best sound: themost smooth and even bass response. Left Mono/LFE Input and Mono Output 1 pair of balanced and 1 pair of single ended inputs and outputs. Right Inputs and Outputs 1 pair of balanced and 1 pair of single ended inputs and outputs. 12 VDC In/Out An input that receives and an output that sends 12 VDC power on/off signals from and to other Krell components and other devices that incorporate a 12 V trigger. IEC Connector Astandard female IECpower connector. The Resolution Subwoofer is in the stand by mode when it is plugged intoAC power. Figure 1 Resolution Subwoofer Back Back Panel Functions LEFT/ MONO/LFE INPUT RIGHT INPUT 12VDC IN 12VDC OUT LEFT/ MONO OUTPUT RIGHT OUTPUT ONPOWER LEVEL STEREO LOW PASS 1 2 1 2 MONO/ LFE LFE NORMAL INVERT OFF 1 2 HIGH PASS FREQUENCYLOW PASS FREQUENCY 40100 60 80 SIGNAL SENSING INPUT FILTER PHASE IEC Connector Frequency Adjust Buttons Frequency Adjust Guide
