Krell resolution brochure

Page 1

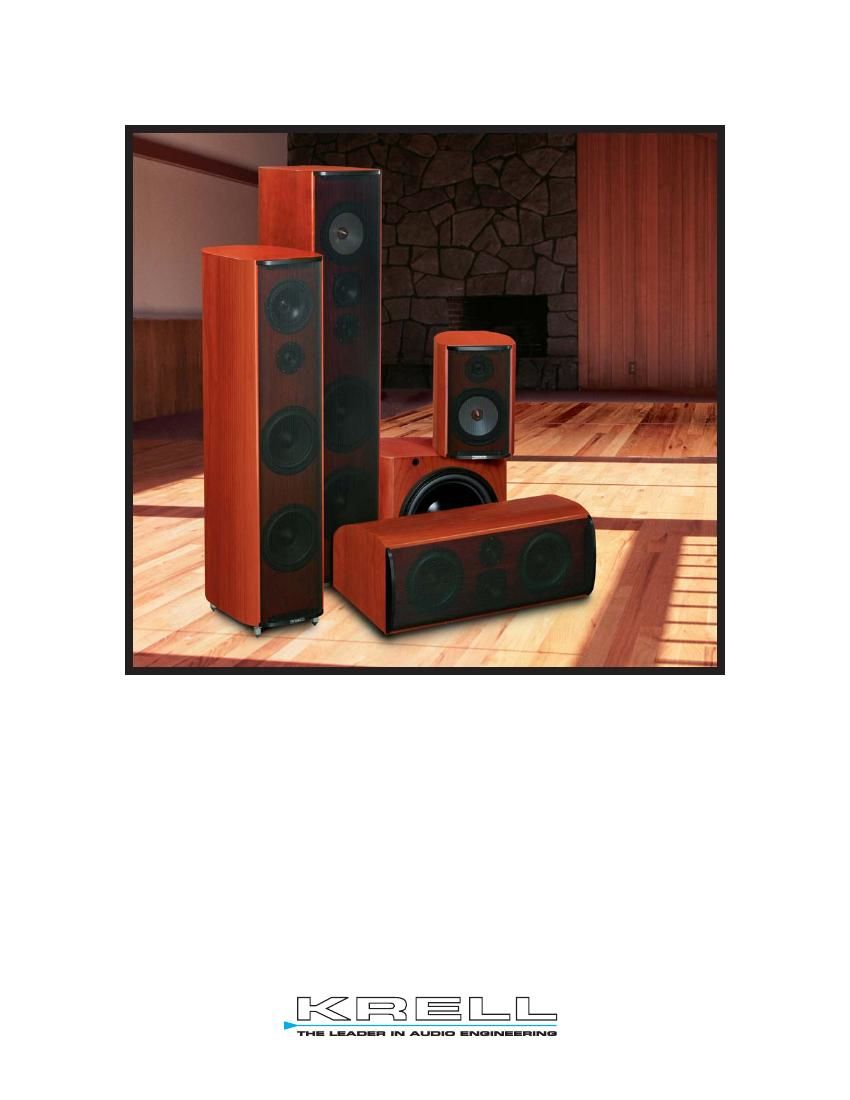

Resolution Series Specifications Krell Industries, Inc. - 45 Connair Road - Orange, CT 06477-3650 USA - Tel: 203-799-9954 - Corp. Fax 203-799-9796 Sales Fax: 203-891-2028 - E-mail: krell@krellonline.com - Web site: www.krellonline.com This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. All other trademarks and trade names are registered to their respective companies. Dimensions include grille, binding posts, and feet. Weight is given per loudspeaker. All operational features, functions, specifications, and policies are subject to change without notification. High performance dynamic loudspeakers. The new Resolution Series loud- speakers from Krell are designed to convey the dynamic contrasts that underlie the most compelling moments in music performance and movie soundtracks. Whether replicating the concussive reportof a mortar round or the pianissi- mo-whisper of a solitary violin fading into silence, the seamless performance of the Resolution Loudspeaker lends a satisfying realism to all categories of music and sound reproduction.Designed in the tradition of the Krell Lossless Acoustic Transducer (LAT) Series loudspeakers, the Resolution Series features system- matched drivers, high-current crossovers, and robust cabinetry. The new Resolution Series loud-speakers are optimized to take full advantage of the incredible power and wide bandwidth delivered by Krell electronic components, and display an extraordinary range of capabilities with any source material. Resolution Series Loudspeakers Resolution 2 SYSTEM TYPE 3-way floor standing ENCLOSURE TYPE Bass reflex DRIVERS Two 8" woofers, one 6.5" midrange driver, one 1" dual-concentric-ring tweeter with integral waveguide FREQUENCY RESPONSE 32 Hz-20 kHz, +/- 2.5 dB -3 dB@ 30 Hz and 22 kHz -6 dB @ 25 Hz and 30 kHz SENSITIVITY 89 dB SPL with 2.83 V @ 1 M NOMINAL IMPEDANCE 4 Ohms FINISH Cherry DIMENSIONS (WxHxD) 11.6 x 48.0 x 19.7 in. 29.5 x 121.9 x 50.0 cm WEIGHT 140 lb., 63.3 kg Resolution 3 SYSTEM TYPE 2-way bookshelf ENCLOSURE TYPE Bass reflex DRIVERS One 8" mid-bass driver with a magnesium cone, one 1" dual-con- centric-ring tweeter with integral waveguide FREQUENCY RESPONSE 53 Hz-20 kHz, +/- 2.5 dB -3 dB@ 50 Hz and 22 kHz -6 dB @ 45 Hz and 30 kHz SENSITIVITY 88 dB SPL with 2.83 V @ 1 M NOMINAL IMPEDANCE 4 Ohms FINISH Cherry DIMENSIONS (WxHxD) 11.3 x 16.0 x 16.7 in. 28.7 x 40.6 x 42.4 cm WEIGHT 45 lb., 20.4 kg Resolution CSYSTEM TYPE 3-way center channel ENCLOSURE TYPE Sealed DRIVERS Two 8" woofers, one 4" midrange drivers, one 1" dual-concentric-ring tweeter with integral waveguide FREQUENCY RESPONSE 53 Hz-20 kHz -3 dB@ 48 Hz and 22 kHz -6 dB @ 40 Hz and 30 kHz Resolution 1SYSTEM TYPE 4-way floor standing ENCLOSURE TYPE Bass reflex DRIVERS Two 10" woofers with aluminum cones, one 8" mid-woofer with a magnesium cone, one 4" midrange with a polypropylene cone, one 1" dual-concentric-ring tweeter with integral waveguide FREQUENCY RESPONSE 28 Hz –20 kHz, +/- 2.5 dB -3 dB@ 26 Hz and 22 kHz -6 dB @ 21 Hz and 30 kHz SENSITIVITY 90 dB SPL with 2.83 V @ 1 M NOMINAL IMPEDANCE 4 Ohms FINISH Cherry DIMENSIONS (WxHxD) 13.2 x 58.0 x 19.7 in. 33.5 x 147.3 x 50.0 cm WEIGHT 195 lb., 88.2 kg. THE LEADER IN AUDIO ENGINEERING Resolution C (continued) SENSITIVITY 89 dB SPL with 2.83 V @ 1 M NOMINAL IMPEDANCE 4 Ohms FINISH Cherry DIMENSIONS (WxHxD) 32.0 x 12.3 x 16.7 in. 81.3 x 31.2 x 42.4 cm WEIGHT 90 lb., 40.7 kg Resolution Subwoofer (preliminary) SYSTEM TYPE Powered Subwoofer ENCLOSURE TYPE Sealed DRIVER One 15" woofer with polypropylene cone POWER AMPLIFIER Purpose-built 700 W Krell amplifier FREQUENCY RESPONSE 25-200 Hz, +/- 3 dB PEAK OUTPUT 116 dB @ 1 M FINISH Cherry DIMENSIONS (WxHxD) 20.5 x 22.5 x 23.8 in. 52.0 x 57.0 x 60.5 cm WEIGHT 110 lb., 49.8 kg
