Page 1
Each Resolution 1 and Resolution 2
loudspeaker is provided with two setsof feet: four spikes and four rubberfeet. The sharp, pointed spikes are
ideal for carpeted floors. The rubberfeet protect tile and wood floors.
To Attach/Detach the
Loudspeaker Grille
,continued
Detach the Grille Before You
Move the Loudspeaker:
1. Grasp the grille block (1) attached
to the top front of the loudspeaker.
On the Resolution C, grasp the
grille block attached to one side of
the loudspeaker.
2.Gently pull the grille block straight
out until the grille locator pins slide
out of the grille holes.
3. Remove the grille block with the
Krell logo (2) from the bottom front
of the loudspeaker.
On the Resolution C, remove the
grille block from the other side ofthe loudspeaker.
4. To protect the grille, place it in
the grille box until you are readyto reinstall it.
Attach the grille to the loudspeaker
before you play music. Each ResolutionSeries loudspeaker is equipped with a
snap-on grille, which consists of grille
cord (3) strung between two metal grille
blocks (1). This grille is shipped in thecardboard box marked grille.
Attach the Loudspeaker Grille:
1.Grasp the grille blocks on each end
of the grille and lift the grille out of the
grille box.
On the Resolution 1, 2, 3, and 4
loudspeakers, place the grille blockwith the Krell logo (2) on the bottomfront. Place the other grille block (1)on the top front.
On the Resolution C loudspeaker
,
place one grille block on the left front.Place the other grille block on theright front.
2. Gently guide the grille locator pins (4)
into the two grille holes (14) on the
bottom front of the loudspeaker.
On the Resolution C, guide the grille
locator pins into the two grille holes
on the left or right front of the loud-speaker.
3. Grasp the remaining grille block,
allowing it to rest between the thumband forefinger of each hand.
4. Pull firmly to stretch the grille cords,
until the grille locator pins align withthe two grille holes on the top front of
the loudspeaker.
On the Resolution C, stretch the grille
cords to the right or left.
5. Gently guide the pins into the grille
holes. You hear a click when thegrille is in place.
2 Krell Resolution SeriesKrell Resolution Series 3 This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell
Industries, Inc., its subsidiaries, and authorized agents. All rights reserved. All other trademarks and trade names are registered to their respective
companies.
© 2004 by Krell Industries, Inc., All rights reserved
Figure 1 Resolution 1 Front and Back
Figure 4 Resolution 3 Front and Back
Figure 6 Resolution C Front and BackFigure 2 Resolution 2 Front and Back
Figure 3 Loudspeaker Grille
1Grille Block
2 Grille Block with Logo
3Grille Cord
4Grill Locator Pins
5 Top
6 Enclosure. Cherry finish
7 8-inch Magnesium Cone Mid-woofer
8 4-inch Midrange Driver
9 1-inch Dual Concentric Ring Tweeter
1010-inch Aluminum Cone Woofer
11 Bottom
126.5-inch Midrange Driver
138-inch Aluminum Cone Woofer
14 Grille Holes
15 Port
16 Back Panel
17 Binding Posts
18 Feet196.5-inch Midbass Driver
20 Back Panel Screws
1
2 34
4

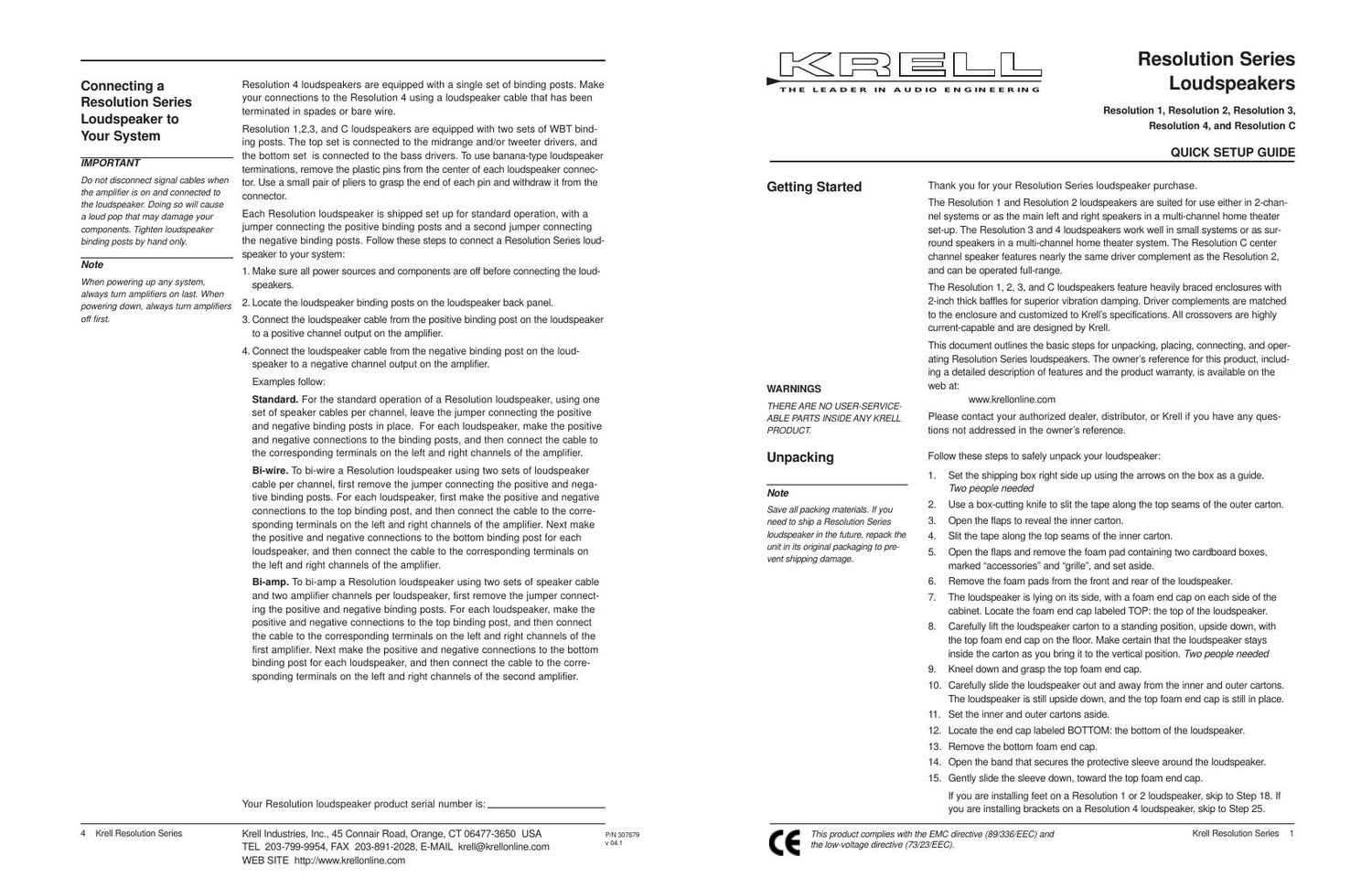

16. Carefully invert the loudspeaker so that the bottom is on the floor.
17. Remove the top foam end cap and sleeve. You are ready to position the loud-
speaker in the listening area.
Two people needed
18. Locate the spikes, rubber feet and locking washers, in the small cardboard box
marked accessories.
19.Choose the set of feet you want to use on your loudspeaker.
20.Thread the washers onto the feet.
21. Screw each foot/washer assembly into the four screw holes located on the bot-
tom of the loudspeaker.
22. Carefully invert the loudspeaker so that it is resting on the feet.
23. Spin the washers counterclockwise up the shaft of each foot to fix the height of
the foot.
24. Remove the top foam end cap and sleeve. You are ready to position the
Resoluton 1 or 2 loudspeaker in the listening area.
Two people needed
25. Remove the protective sleeve from the Resolution 4 loudspeaker.
26. Locate the brackets, in the small cardboard box marked accessories.
27. Using two back panel screws of your choice, affix one Resolution 4 bracket to
the back of the loudspeaker.
28. Affix the other bracket to the wall using hardware rated for 25 lbs.(11.4 k) or
more
(not provided).
29.Remove the top foam end cap and mount the Resolution 4 on the wall.
A Resolution Series loudspeaker is simple to set up and use, and is engineered to
perform well in a wide variety of listening environments. The closer a Resolution 1, 2,
3, or C loudspeaker is to the rear wall, the more pronounced the bass response. To
minimize unwanted reflected sound and maximize the width and depth of the sound-
stage, be careful not to set the Resolution 1, 2, 3, or C loudspeakers too close to the
side walls. The Resolution 4 loudspeaker has been designed to work well in closeproximity to walls and other room boundaries, and can function as a main, surround,or center channel loudspeaker. Krell encourages you to experiment and find the
placement that reflects your personal preference.
Placement
To Install Feet On the
Resolution 1 and 2
Loudspeaker
Each Resolution 4 loudspeaker is
provided with two brackets.
To Install Brackets on the
Resolution 4 Loudspeaker
Position the loudspeaker in the
listening area before attaching thegrille.
Unpacking , continued
To Attach/Detach the
Loudspeaker Grille
Notes
Be careful not to scratch the loud-
speaker cabinet with the grille locator pins.
Clean the grille periodically to
remove accumulated dust. Gentlywipe the grille from top to bottomusing a soft, dry, lint-free cloth.
Do not use rubber conditioner or
solvent.
14
6 5
7
8
9
10 11 11
11
5
5
14
6
12
9
13
15
18
18 16
17
14 14
15
1617
17
16
15
14
6
6 7
9
115
Figure 5 Resolution 4 Front and Back
115
16
20
17 14
6
9
15
19
13
8
9
17
16
