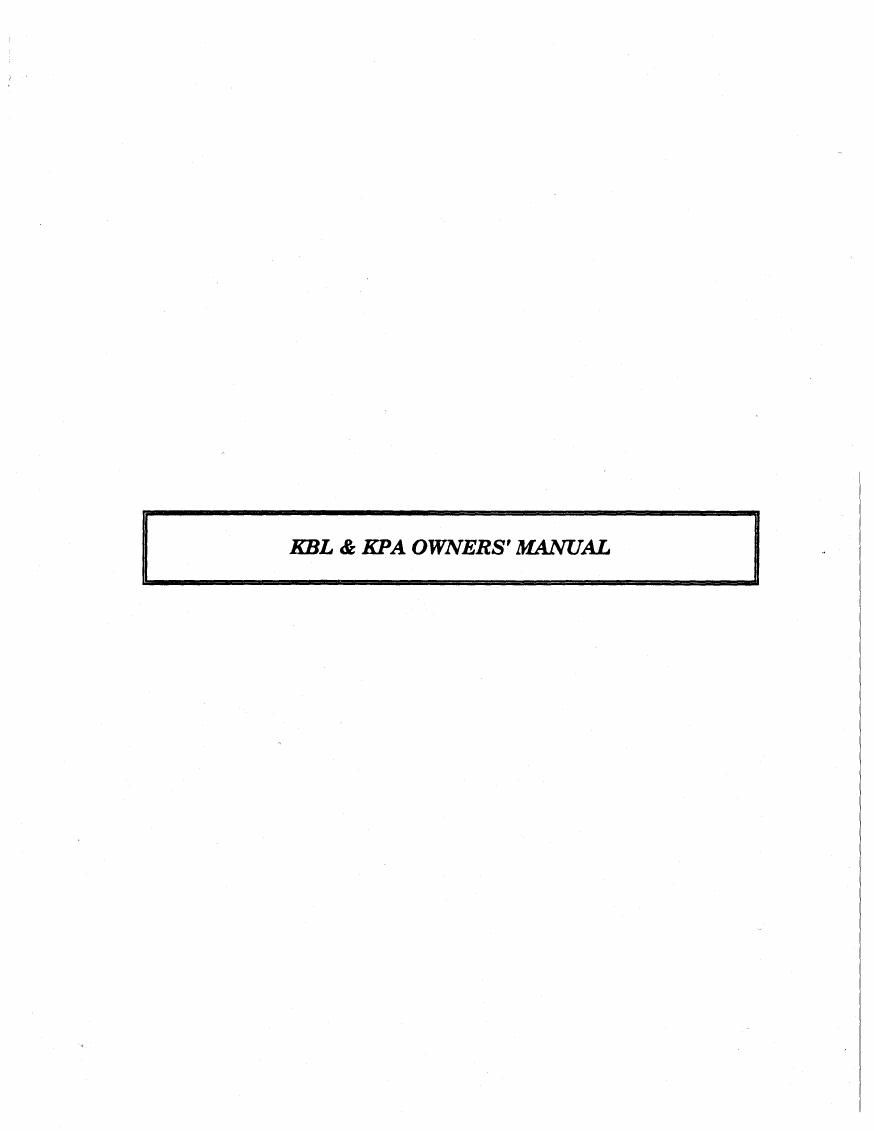

Page 1
45 Connair Road Orange, CT 06477-0533, USA KBL & KPA OWNERS' MANUAL INTRODUCTION Thank you for your purchase of a new KRELL preamplifier. This Owners' Manual covers both the KBL and KPA preamplifiers, as they have been designed to be companion pieces and can be utilized in varying combinations. For each user there will be information that does not pertain to their specific situation. Therefore, in the interest of clarity, details relating to different combinations are presented in well-defined sections. The KBL and KPA represent significant departures from traditional preamplifier design. The time invested in carefully reading this manual will yield an important understanding of the functions and design features of the units. Due to the high level of performance of which these units are capable, careful placement and installation are crucial. Your thorough understanding of the operations of the KBL and KPA will help insure their maximum performance and long life. ABOUT THE OWNERS' MANUAL The KBL/KPA Owner's Manual is divided into various groups of information. The purpose of the document as a whole is to familiarize you with the units and guide you through their set-up, installation and operation in a logical progression. The Table of Contents is as follows: A. Serial Number(s) and Factorv-Shi~ed Confia~ration B. General Information: a description of the basic design and performance features of the KBL and KPA C. Unpacking: detail of accessories shipped with the KBL and KPA in various configurations
Page 2
D. Installation: 1. Caution 2. Connector Details 3. Connector Termination Types 4. Cable Requirements for Inputs and Outputs 5. Setting of Internal Switches 6. Unit Location Guidelines and Installation 7. Connection of Inputs and Outputs 8. Turn-on of the Preamplifiers E. Operation: 1. KPA Functions 2. KBL Functions F. ,W~rranty ~nd Service Information G. Termination Drawings A. SERIAL NUMBERS & FACTORY-SHIPPED CONFIGURATION KBL preamplifier serial number was shipped from the factory set-up for stereo operation dual-mono operation. Please refer to information specific to this mode of operation throughout the manual. Should you wish to change between stereo and monaural operation please refer to section D. 5. This is only necessary when changing either unit from stereo to mono operation. All KPA are shipped from the factory set-up for stereo operation. Please refer to section E. 1. d for information regarding dual-mono operation. B. GENERAL INFORMATION The KRELL KBL (Krell Balanced Line) and KPA (Krell Phono Amplifier) present many new concepts in preamplifier design. The traditional preamplifier contains both a phono section and a line section. The KBL and KPA divide these functions into two separate units. This was done for several reasons. The primary motivation was to allow adequate space to accommodate the latest evolutions of preamplifier circuitry and functions. 2
