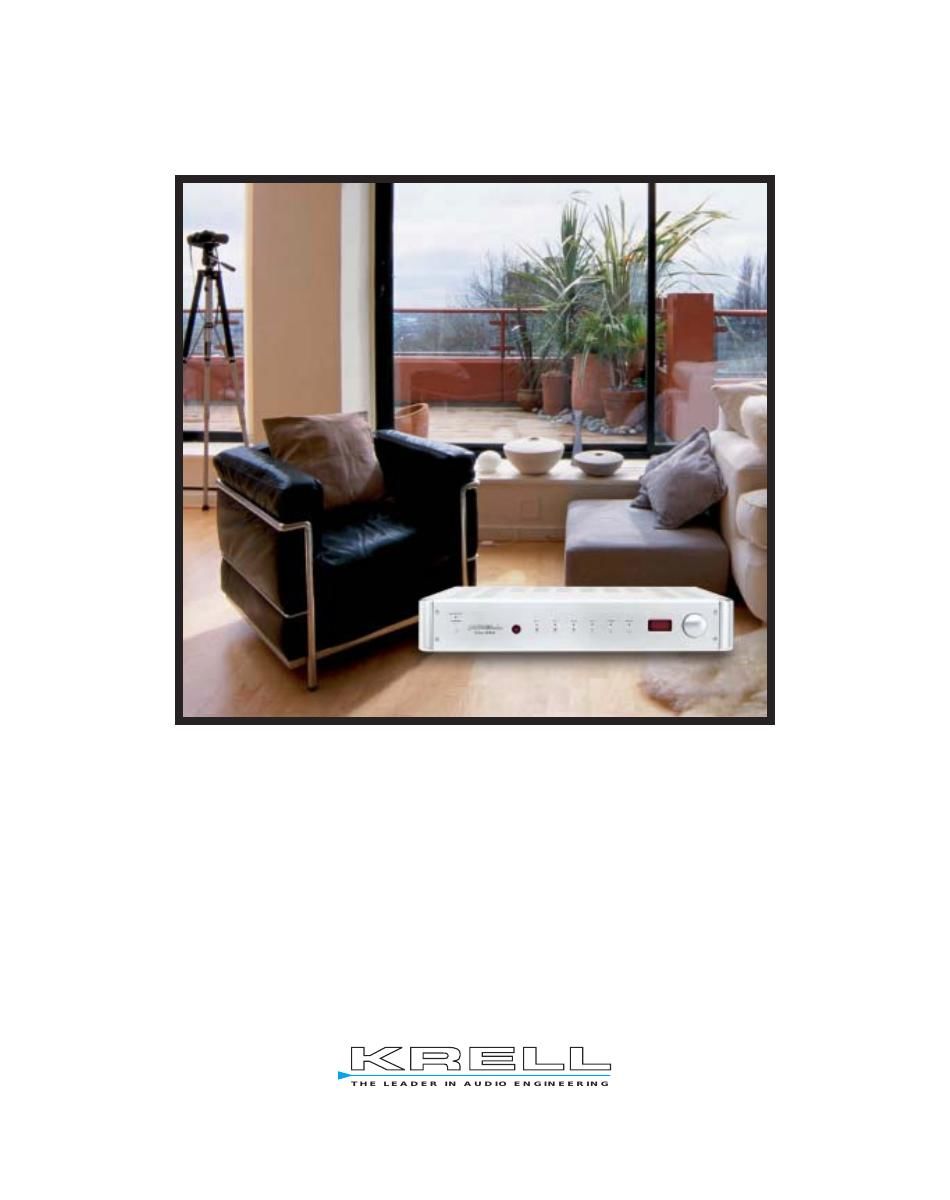

Krell kav 400 xi brochure

Page 1

The balanced amplifier circuit develops 200 Watts into 8 Ohms and 400 Watts into 4 Ohms, employing a push/pull configuration for complete control of any loudspeaker. A massive 800 VA toroidal transformer and 55,000 microfarads of capacitance guarantee huge power reserves for maximum dynamic impact. Both balanced and single-ended inputs are provided, and the Theater Throughput ™mode, developed by Krell, simplifies integration into home theater systems. Robust WBT binding posts provide superior loudspeaker cable termination. The Krell KAV– 400xi is a high performance integrated amplifier that combines the hallmarks of Krell engineering design- high power, balanced circuitry, unique technology, Krell build quality, and impeccable sonic performance -into one, beautifully styled component. Built to the same rigorous standards as every other Krell product, the KAV– 400xi has a compact, precisely constructed chassis that is hand finished in silver or black. Sonically, the KAV– 400xi features a prodigious bass response, an open, natural sounding midrange, and highs that are extended and smooth. FREQUENCY RESPONSE 20 Hz–20 kHz +0 dB, -0.07 dB SIGNAL-TO-NOISE RATIO A weighted:99 dB TOTAL HARMONIC DISTORTION (THD), 20 Hz–20 kHz 1 kHz <0.04%, 20 kHz <0.25% GAIN 35.8 dB INPUT SENSITIVITY0.644 Vrms INPUTIMPEDANCE47 kOhms OUTPUT IMPEDANCE 0.17 Ohms POWER CONSUMPTION Idle 20 W, Max. 1,800 W TRANSFORMER 750 VA INPUTS All with Theater Throughput 1 pair balanced via XLR connec- tors, 3 pair single-ended via RCA connectorsOUTPUTS 2 loudspeaker via 5-standard binding posts, 1 pair single-ended preamplifier via RCA connectors TAPE INPUT AND OUTPUT 1 pair single-ended via RCA connectors OUTPUT VOLTAGE Peak to peak 138 V OUTPUT POWER 8 Ohms 200 W, 4 Ohms 400 W REMOTE CONTROL 1 wireless remote 1 12 VDC Out/In (12 V trigger) 1 RC-5 input via a DC power connector DIMENSIONS 17.3w x 3.5h x 17d in. 50w x 8.9h x 43.2d cm WEIGHT Shipped 36.0 lb., 16.4 kg Unit only 31.0 lb., 14.1 kg A stylish, discreetly sized remote control offers convenient, full function capability. KAV– 400xi Specifications Krell Industries, Inc. - 45 Connair Road - Orange, CT 06477-3650 USA - Tel: 203-799-9954 - Corp. Fax 203-799-9796 Sales Fax: 203-891-2028 - E-mail: krell@krellonline.com - Web site: www.krellonline.com THE LEADER IN AUDIO ENGINEERING This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, andauthorized agents. Krell Current Mode ™is a trademark of Krell Industries, Inc. TosLink ®is a trademark of Toshiba Corporation. All other trademarks and trade names are registered to their respective companies. KAV– 400xi The KAV– 400xi features the latest Krell Class A, direct coupled design, and the entire signal path from input to output is fully balanced for the lowest noise reproduction possible. Krell Current Mode ™provides unequaled bandwidth for the most revealing playback of todays high resolution music sources. Direct coupled circuitry eliminates impact-robbing capacitors from the signal path. A tactile, custom-machined level control adjusts volume. The KAV–400xi is available in silver Krellcoat ™,displayed here, or in the new luxurious black finish, as shown on the Krell website at www.krellonline.com All operational features, functions, specifications, and policies are subject to change without notification. Convenience without compromise.
