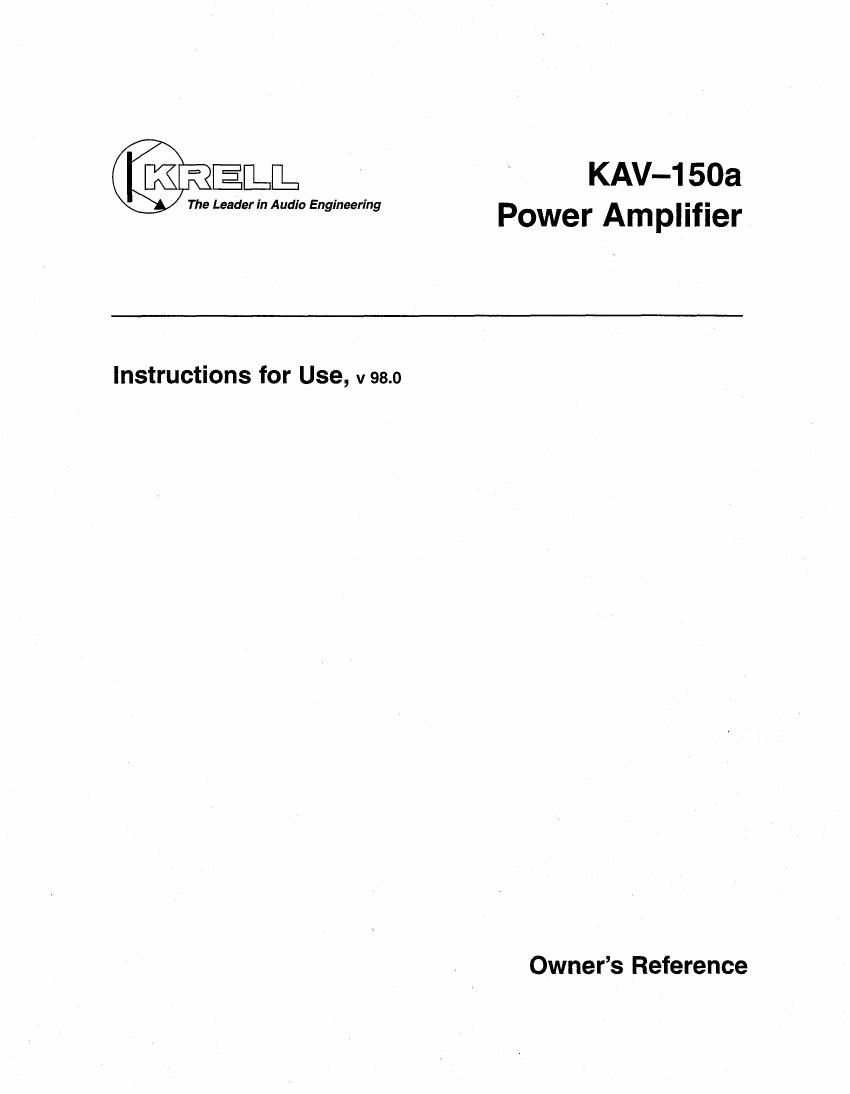

Krell kav 150 a owners manual
This is the 10 pages manual for krell kav 150 a owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from krell kav 150 a owners manual (Ocr-read)
Page 1
Contents KAV-150a Power Amplifier Krell® Industries, Inc. 45 Connair Road Orange, CT 06477-3650 USA TEL 203-799-9954 FAX 203-799-9796 E-MAIL krell@ krellonline.com WEB SITE www.krellonline.com INTRODUCTION UNPACKING PLACEMENT Cabinetry Considerations AC Power Guidelines CONNECTING THE KAV-150a TO YOUR SYSTEM Input and Output Connections Configuring the KAV-150a for Bridged Operation AMPLIFIER OPERATION On/Off and Stand-by Operation System Noise Considerations WARRANTY RETURN AUTHORIZATION PROCEDURE SPECIFICATIONS Page 4 4 5 5 6 6 6 7 8 9 Back Cover © 1998 by KRELL ® Industries, Inc. All rights reserved P/N I960101900088
Page 2
CE Marking This product complies with the EMC direc- tive (89/336/EEC) and the low-voltage directive (73/23/EEC). Introduction Thank you for your purchase of the Krell ® KAV-150a Power Amplifier. The name Krell ® has always represented components that are the premier performers in their product categories. The KAV-150a power amplifier continues in this Krell ® tradition The KAV-150a is a stereo amplifier that may be bridged into monaural operation. Designed as a compact component with exceptional sound, the KAV-150a may be interfaced easily into multi-amplifier sys- tems using the 12 V trigger and the bridg- ing capability. The KAV-150a uses proven Krell®circuits built with the same high qual- ity resistors, output devices, and internal electrical components used in all other Krell®products. From input to output, the KAV-150a uses discrete, fully complemen- tary circuitry. All circuits up to the driver stage operate in pure Class A. The KAV-150a employs a wide bandwidth design with a very low negative feedback for sonic accuracy throughout the frequency spectrum. This owner's reference manual contains important information on the placement, installation, and operations of the KAV-150a. Please read this information carefully. A thorough understanding of these details will help insure satisfactory operation and a long life for the KAV-150a and related sys- tem components. The KAV-150a is backed by a comprehen- sive customer satisfaction policy and one of the most advanced service facilities in the industry. For detailed information on the terms and conditions of service, please consult your warranty registration card, or contact your dealer, distributor, or Krell ®. Unpacking 1. Open the box and remove the top layer of foam. You will see these items: 1 KAV-150a 1 AC power cord 2 spare speaker fuses 1 packet containing an introductory letter from Dan D'Agostino, C.E.O., the Owner's Reference and the Warranty Registration Card Note ff any of these items are not included, please contact your authorized Krel/~ dea/er or dis- tributor immediate/y for assistance. 2. Carefully remove the unit and acces- sories from the box. Remove the protec- tive plastic wrap from the unit. Note Save all packing materials, ff you must ship your KA V-150a in the future, repack the unit in its original packaging to prevent transit damage. THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL ® PRODUCT Please contact your authorized dealer, distributor, or KrelP, if you have any questions not addressed in this refer- ence manual. KRELL ® KAV-150a English Page 3 of 12
