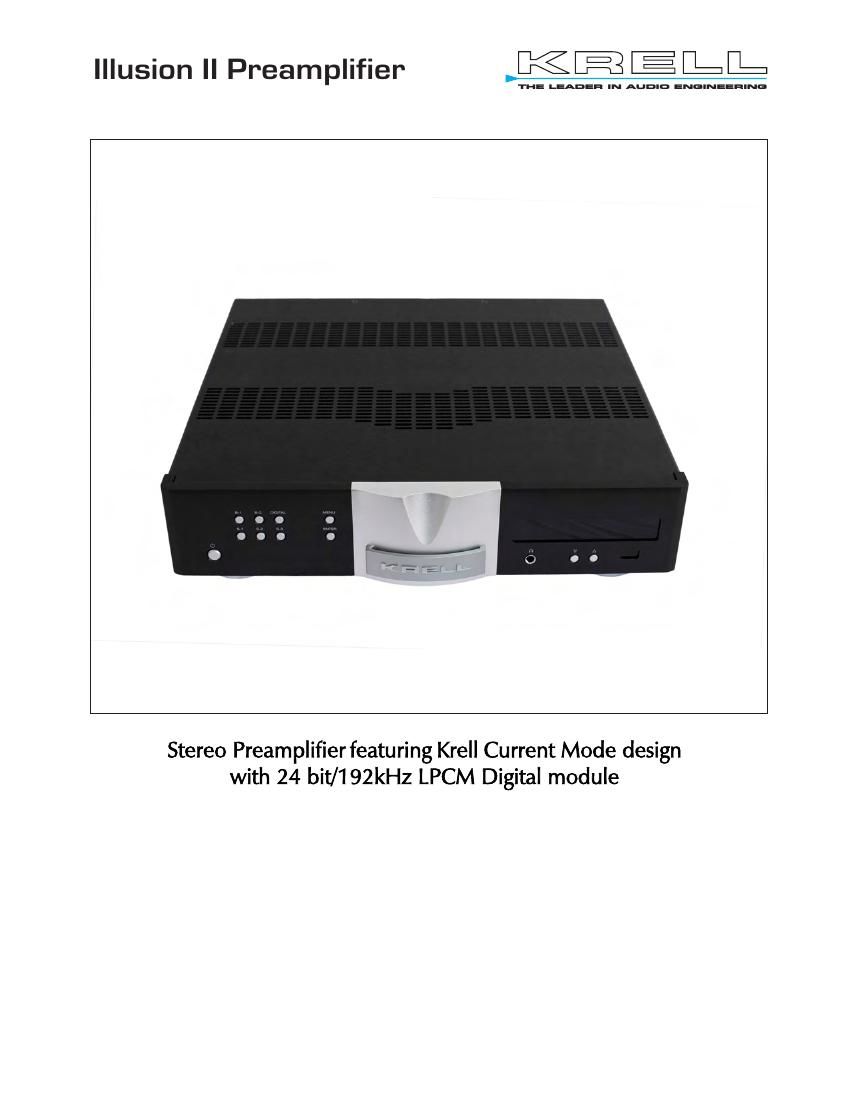

Krell Illusion II Brochure

Page 1

3 pr. balanced via XLR connectors input/output4 pr. single-ended via RCA connectors input/output Optional Rack Mount Kit 17.3 in W x 3.8 in H x 1 8.3 in D 43. 8 cm W x 9.7 cm H x 4 6.4 cm D 1 remote IR detector input via 3-conductor 3.5 mm connector 3ea 12V Trigger input/outputPower Supply Highlights Oversized for a preamplifier, the power supply features a 95 VA transformer and 40,000 µF of capacitance giving it the ability to respond quickly to musical demands. The large power supply improves noise rejection and renders the Illusion II impervious to all but the most severe AC voltage power fluctuations. A new eco-friendly standby mode reduces power consumption to 2W. - - - - 1 AES/EBU via XLR connectors digital input 2 coaxial via RCA connectors digital input 2 optical via Toslink connectors digital input - -1 RS-232 input via 9-pin D-subminiature c onnector - - 1 Headphone output via 3 -conductor 6.35 mm (1/4 in) connector Digital Module Highlights The digital module supports up to 24 bit/192kHz LPCM. All digital signals are fed to an ESS Sabre DAC and then sent to Krells Current Mode, discrete, balanced analog circuitry. Circuitry Highlights The Illusion II preamplifier is a dual monaural design with the left and right channels afforded their own power supply regulation and individual circuit boards. All signal gain is executed with surface mount technology using proprietary multiple- output current mirrors with nearly 500 times the open loop linearity of other designs. Featuring 700 kHz bandwidth in a zero feedback, balanced, Krell Current Mode design, the Illusion II shares the same design philosophy as its bigger brother, the flagship Illusion preamplifier. Negative feedback is not used anywhere in the preamp, nor is it necessary. Open-loop distortion is typically less than 0.003%. The volume control is realized with a balanced resistor ladder - bandwidth and transient response of the preamp circuitry are virtually unaffected by the volume setting. The headphone circuitry is identical to the main circuitry, offering private listening with the same performance as speaker playback. - - - - - - - - - - - - - - - - DESIGN SPECIFICATION HIGHLIGHTS Krell ®is a registered trademark of Krell Industries, LLC., and is restricted for use by Krell Industries LLC., its subsidiaries, and authorized agents. All other trademarks and trade names are registered to their respective companies. © 2014 by Krell Industries, LLC. All rights reserved. THE LEADER IN AUDIO ENGINEERING Krell Industries, LLC. - 45 Connair Road - Orange, CT 06477-3697 USA Tel: 203-298-4000 - Fax: 203-799-9796 - Sales Dept: 203-298-4010 - contact@krellonline.com - www.krellonline.com All operational features, functions, specifications, and policies are subject to change without notice. The Illusion II is the perfect centerpiece for a world class digital and analog audio system. Added to the normal selection of balanced and single- ended inputs are five digital inputs. The digital module features AES/EBU, coaxial, and optical digital inputs for use with streaming devices or other digital sources. Illusion II Preamplifier
