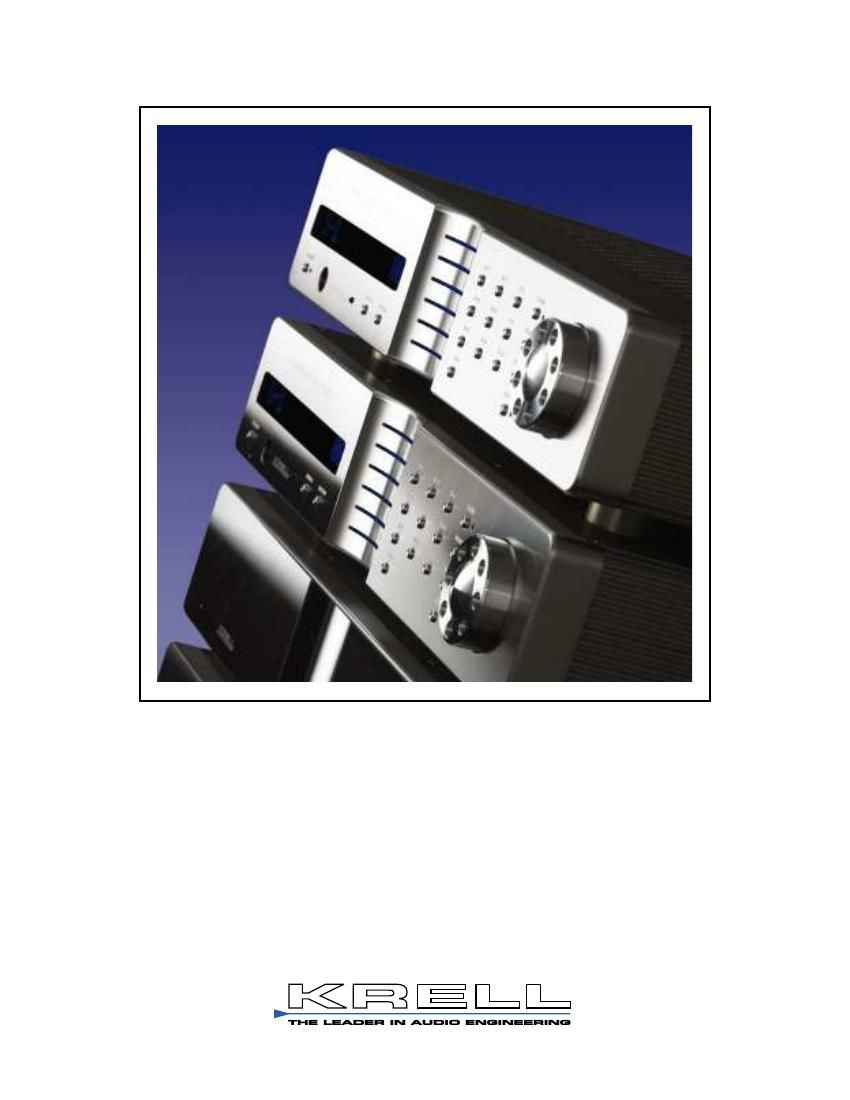

Page 1
T ECHNOLOGIES& I NNOVATIONS Krell Industries, Inc. designs and manufactures high performance audio and video equipment for serious music enthusiasts and home theater aficionados. Ev ery Krell component is a unique syn - thesis of science and art that allo ws for unmatched sonic real - ism. Recorded performances are, b y their very nature, works borne of passion. Our goal is to bring that passion to life in your home. Kr ell Evolution Series products represent the supreme realization of Krell design and engineering. The Evolution One amplifier and Evolution Two preamplifier are the result of o ver 25 years in the pursuit of the ultimate listening experience. The formidable engi - neering efforts required to bring Evolution products into existence extend to the Class A and KAV series components making for unpar alleled performance in their classes. Kr ell Class A Series components are performance leaders in their respecti ve product categories. Class A power amplifier design has been a Krell tradition since the compan ys inception in 1980. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. Susta\ ined Plateau Bias III ™is a trademark of Krell Industries, Inc. and is a Krell technology based on U.S. Patent No. 5,331,291. C AST ™, CAST II ™, Theater Throughput ™, Krell Current Mode ™, Krell Architec h Construction ™, Krellcoat F inish ™, and Krell Pla yback System ™are trademarks of Krell Industries, Inc. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Manufactured under license from Dolby Laboratories. "Dolb y," "Pro Logic," and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992–1997 Dolby Laboratories, Inc. All rights reserv ed. "DTS", "DTS Digital Out", DTS-ES Extended Surround, and \ Neo:6 are registered trademarks of Digital Theater Systems, Inc. THX is a registered trademark of Lucasfilm, Ltd. All other tr ade- marks and trade names are registered to their respecti ve companies. © 2004 by Krell Industries, Inc. All rights reserv ed. Krell Architec h Construction Krell Ar chitec h construction is a Krell mechanical design criteri - on that ensures each Krell product meets the highest standards of structur al integrity. Chassis material of robust, heavy gauge alu - minum provides long life and durability as well as a distincti ve look and feel. High tolerance machining and liberal use of flight- certified fasteners reduce or eliminate undesirable vibr ations. Built to last a lifetime, Krell products with Architec h construction enhance your listening experience every time you use them. Kr ell CAST II C AST , Current Audio Signal Transmission, is a Krell proprietary tec hnology for connecting analog components that provides the most accurate signal transfer from one component to the next. It utilizes the sonic purity of current and eliminates signal degr ada- tion caused by cable interaction while transmitting signals in v oltage. CAST II greatly increases the input stage bandwidth of the Full P ower Balanced X Series amplifiers. Kr ell Current Mode A topology designed by Krell and used in amplifier, preamplifier , and source components circuitry to ensure accurate signal repro - duction. Realizing the entire design in the current domain elimi - nates the sonic degrading nature of circuit boards and increases the o ver all band width. The greater bandwidth, all Krell compo -nents ha ve a bandwidth greater than 300KHz, results in near fla wless reproduction in the audible r ange. Sustained Plateau Bias III A patented microprocessor control system that maintains Class A bias operation regardless of musical demand. Class A bias is the most accurate method used to amplify musical signals. T he new Sustained Plateau Bias III software maximizes an ampli - fier s efficiency both in power consumption and heat gener ation, and is featured in the Full P ower Balanced X Series amplifiers. T heater Throughpu t T he unique Theater Throughpu tfeature facilitates easy integr a- tion of Krell stereo preamplifiers and integrated amplifiers into home theater systems. In Theater Throughput mode, the main output signal from an external surround sound processor b ypass- es the volume and balance controls, providing a direct connec - tion to the amplifiers powering the front left and right speakers. Kr ellcoat F inish F or o ver 25 years, Krell has been designing components that set the standard not only for audio engineering but also for inno va- ti ve aesthetic design. Krells experience and knowledge has been distilled into a new process called Krellcoat finish. Krellcoat fin - ish gi ves Krell components a look that is timeless, with a feel that is inviting and built to last. On the co ver: Evolution Two preamplifier with diamond-cut silver finish, in the operational mode. F eaturing incomparable build quality and superior circuit topolo - gies, Class A products are the driving force of reference quality audio systems w orldwide. Kr ell KAV Series products incorporate the core elements of Krell engineering to deli ver the highest quality and performance demanded by toda ys dynamic market. The KAV 400xi and SA CD Standard are leaders of a complete series of audio and video components that deli ver Krell performance and outstand - ing value for contemporary home entertainment systems. T he introduction of the upgraded Krell LAT Series loudspeakers dr amatically impro ves an already recognized world-class loud - speaker arr ay. T he Resolution Series source design elements directly from the LAT Series to offer unmatched performance in their class. When coupled to the reference quality D VD Standard, the HTS 7.1 surround preamp/processor, and the appropriate Krell amplifiers, my vision of a complete, totally inte - gr ated, Krell home entertainment system is realized. From input to output, from source to loudspeakers, Krell components repro - duce the definiti ve music and home theater experience based on the principles of inno vati ve engineering, impeccable build quali - ty , and unerring accur acy in sonic reproduction.
Page 2
C LASS A S ERIES Full Power Balanced 750Mcx Monaur al Power Amplifier 750 W, 1500 W, 3000 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 12.5 x 10.5 x 25 in. 31.8 x 26.7 x 67.3 cm 140 lb. / 63.6 kg Full P ower Balanced 450Mcx Monaur al Power Amplifier 450 W, 900 W, 1800 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 12.5 x 10.5 x 19 in. 31.8 x 26.7 x 48.3 cm 98 lb. / 44.5 kg Full P ower Balanced 350Mcx Monaur al Power Amplifier 350 W, 700 W, 1400 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 12.5 x 10.5 x 16 in. 31.8 x 26.7 x 40.6 cm 68 lb. / 31 kg Full P ower Balanced 700cx Ster eo P ower Amplifier 700 W, 1400 W, 2800 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 19 x 10.3 x 25.5 in. 48.3 x 26.2 x 64.8 cm 180 lb. / 81.8 kg Full P ower Balanced 400cx Ster eo P ower Amplifier 400 W, 800 W, 1600 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 19 x 10.3 x 19.7 in. 48.3 x 26.2 x 50 cm 110 lb. / 50 kg Full P ower Balanced 300cx Ster eo P ower Amplifier 300 W, 600 W, 1200 W (8, 4, 2 Ohms) Class A circuitry , CAST II tec hnology, Sustained Plateau Bias III. 19 x 10.3 x 17 in. 48.3 x 26.2 x 43.2 cm 90 lb. / 50 kg KCT Krell Curr ent Tunnel Ster eo Pr eamplifier C AST tec hnology , balanced cir cuitry. Menu displa y with remote control. Dual zone, RS-232, Theater Throughput. 19 x 4.2 x 14.5 in. / 48.3 x 10.7 x 36.8 cm 25.5 lb. / 11.6 kg Component dimensions are described by width x height x depth. All power ratings are per c hannel. Krell Class A Series components are per - formance leaders in their respecti ve product categories. Featuring incomparable build quality and superior circuit topologies, Class A products are the heart of reference quality audio systems w orldwide. T he Krell CAST II System featured at the right include the Krell KCT Stereo P ower Amplifier (top) and the Krell Full P ower Balanced 700cx Stereo P ower Amplifier , a po werful combination that produces music without compromise. CAST AND C LASS A All Class A Series components are a vailable in a luxurious black finish.
