Page 1

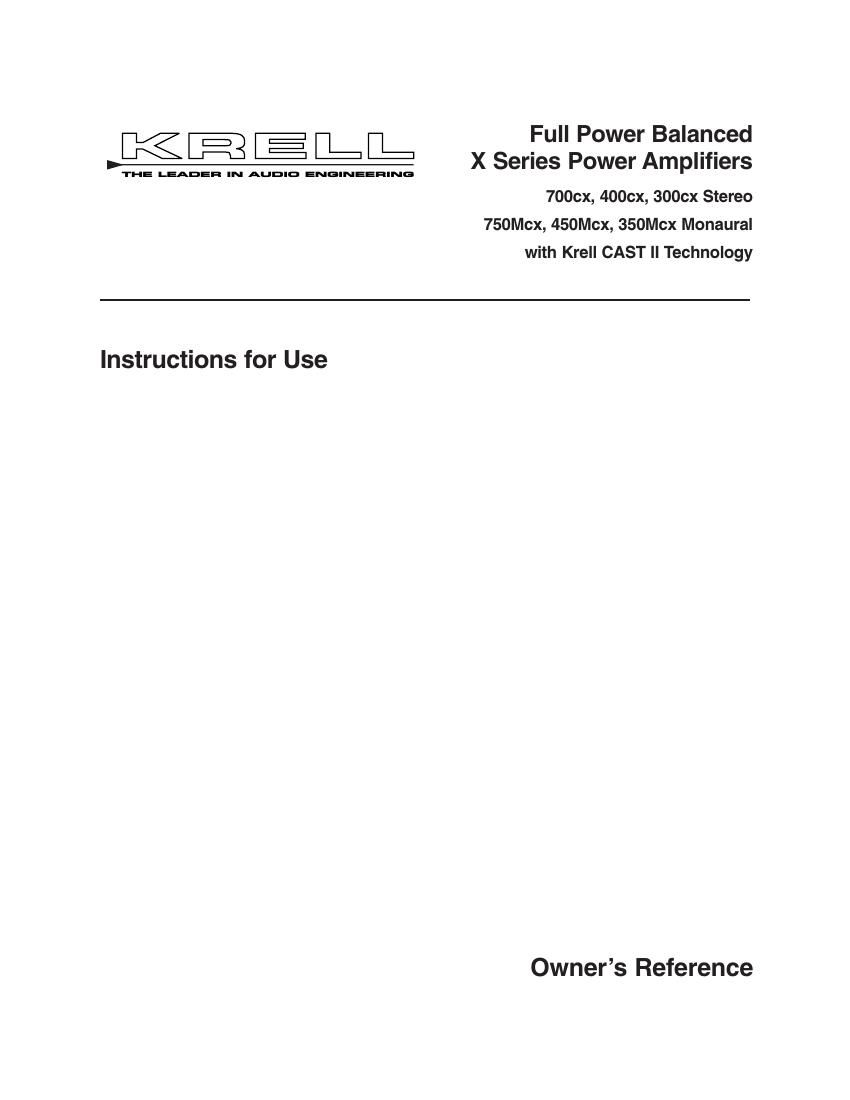

Full Power Balanced X Series Power Amplifiers 700cx, 400cx, 300cx Stereo 750Mcx, 450Mcx, 350Mcx Monaural with Krell CAST II Technology v 02.0Krell Industries, Inc. 45 Connair Road Orange, CT 06477-3650 USA TEL 203-799-9954 FAX 203-891-2028 E-MAIL krell@krellonline.com WEBSITE http://www.krellonline.com This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Indus- tries, Inc., its subsidiaries, and authorized agents. Sustained Plateau Bias III™ is a trademark of Krell Industries, Inc. and is a Krell technology based on U.S. Patent No. 5,331,291. CAST™, CAST II™, Krell Current Mode™, Krell Link™, and Krell Playback System™ are trademarks of Krell Industries, Inc. All other trademarks are registered to their respective companies. ©2002 by Krell Industries, Inc. All rights reserved P/N 305976 This product complies with the EMC directive (89/336/EEC) and the low-voltage directive (73/23/EEC). WARNINGS The Full Power Balanced amplifier must be placed on a firm, level surface where it is not exposed to drip- ping or splashing. The ventilation grids on the top of the Full Power Balanced amplifier must be unobstructed at all times during operation. Do not place flammable material on top of or beneath the component. Before making connections to the Full Power Balanced amplifier, ensure that it is off and the preamplifier is in mute or stand-by mode. Make sure all cable terminations are of the highest quality and free from frayed ends, short circuits, or cold solder joints. The differential circuitry employed with Full Power Balanced amplifiers requires special attention when connect- ing speakers. Do not connect the negative speaker terminals together. Do not connect the negative speaker ter- minals to ground or attempt to bridge the left and right speaker binding posts of Full Power Balanced stereo ampli- fiers. Do not connect a Full Power Balanced amplifier to a speaker selector device that employs a common ground scheme, as it may short-circuit the amplifier output. THERE ARE NO USER SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT. Please contact your authorized Krell dealer, distributor, or Krell if you have any questions not addressed in this reference manual.
Page 2
Page INTRODUCTION 1 DEFINITION OF TERMS 1 REVOLUTIONARY KRELL CAST and CAST II TECHNOLOGY 3 UNPACKING 4 PLACEMENT 4 AC Power Guidelines 5 FRONT PANEL DESCRIPTION 8 700cx, 400cx, and 300cx Stereo Power Amplifiers 8 750Mcx, 450Mcx, and 350Mcx Monaural Power Amplifiers 8 BACK PANEL DESCRIPTION 11 700cx, 400cx, and 300cx Stereo Power Amplifiers 11 750Mcx, 450Mcx, and 350Mcx Monaural Power Amplifiers 12 CONNECTING THE FULL POWER BALANCED AMPLIFIER TO YOUR SYSTEM 13 Input and Output Connections 13 Krell Link Connections 13 DC Protection Circuitry 14 Using a Tube Preamplifier 14 AMPLIFIER OPERATION 15 On/Off and Stand-by Operation 15 Krell Link Operation 15 REMOTE CONTROL OPERATION 16 How to Turn Off the Amplifier LEDs 16 How to Turn On the Amplifier LEDs 16 How to Switch between Krell CAST and XLR Inputs 16 Using a Dedicated Wall Outlet and Switch 16 AMPLIFIER TROUBLESHOOTING 17 How to Troubleshoot System Noise 17 How to Evaluate Amplifier Operation 17 QUESTIONS AND ANSWERS 19 WARRANTY 20 RETURN AUTHORIZATION PROCEDURE 21 SPECIFICATIONS 22 Krell Full Power Balanced X Series Power Amplifiers iii Contents
