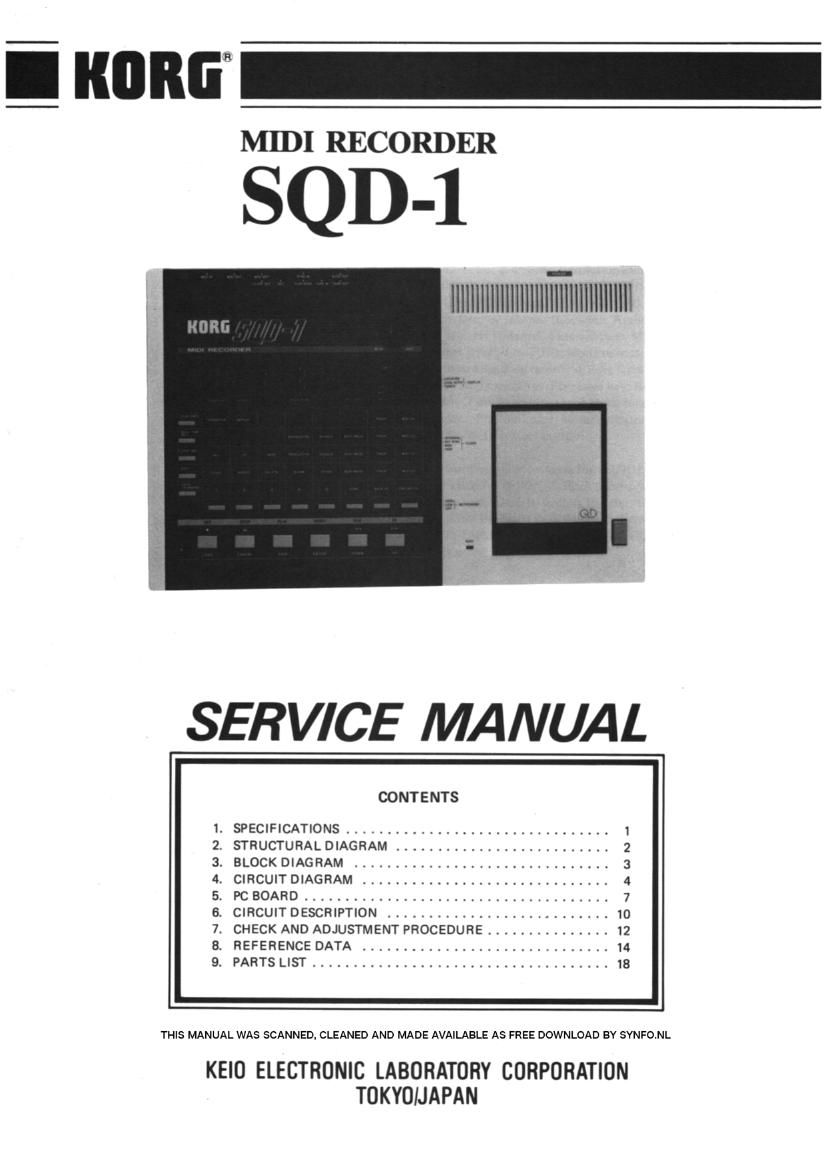

KORG SQD 1 SERVICE MANUAL

This is the 26 pages manual for KORG SQD 1 SERVICE MANUAL.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 26
KORG SQD 1 SERVICE MANUAL

Extracted text from KORG SQD 1 SERVICE MANUAL (Ocr-read)


Page 2

1. SPECIFICATIONS

a Memory capacity .................
0 Quick disk storage capacity ..........
0 Recording tracks .................
0 Recording methods ................

I Control panel ....................

0 Rear panel ......................

0 Dimensions .....................
n Weight ........................
0 Power consumption ...............
- Supplied accessories ...............

- Optional Accessories ...............

About 15,000 notes (about 7,500 notes when velocity is recorded).
30,000 notes or more (using both sides).

2-Track system (Main track has multi-channei recording capability).
Real time, Step.

5column LED display; Track indicator (MAIN SUB); Beats/
measure indicator (2~5: 2/4~8/4); Resolution indicator

()J.) $.11. HIGH): Repeat indicator (0N, OFF); Transpose
indicator (ON, OF F); Tempo control ( J =35~230, adiustable);
Tempo indicator; Display selector (Location, Available notes,
Tempo): Clock selector (lntemal, External sync,-M|DI Tape);
Metronome switch (High, Low, Off): Mode selector keys (Play
only, Real time recording, Step recording, Edit, Data transfer);
Record/load key;Stop/canoe| key; Play/save key; Reset/enter key;
Rewind/down key; Fast-forward/up key; Multi~function keys x 8;
Recording indicator; Play indicator; Mode indicator; Quick Disk
Busy indicator; Quick Disk eject button.

MIDI Function switches (DIP switches for 1. MIDI out: Mix/
internal; 2. Key velocity: On/Off; 3. Pitch bend control change:
On/Off;4. After-touch: On/Off; 5. Data transfer: Disk/MIDI).
Connectors for MIDI IN; MIDI OUT/MIX x 2; DIN SYNC IN;
DIN SYNC OUT; TAPE SYNC IN; TAPE SYNC OUT: CLICK
OUT: PLAY/STOP; REC.

403(W) x 74(H) x 260(0) mm.

3.6 kg.

20W.

Sync/midi cables x 2; Quick Disks x 5.

PSI Pedal switch; S-2 Dual foot switch; 00-10 Quick Disk
10~pack;MlDl cables (7m, 10m, 12m); SYNC/MIDI cables

(1.5m, 3m, 5m); Mini plug cord; Mini connection plug; HC-1
Hard case.

' Specifications and design are subject to change without notice for improvement.
