KORG DL 50 SERVICE MANUAL
This is the 20 pages manual for KORG DL 50 SERVICE MANUAL.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from KORG DL 50 SERVICE MANUAL (Ocr-read)

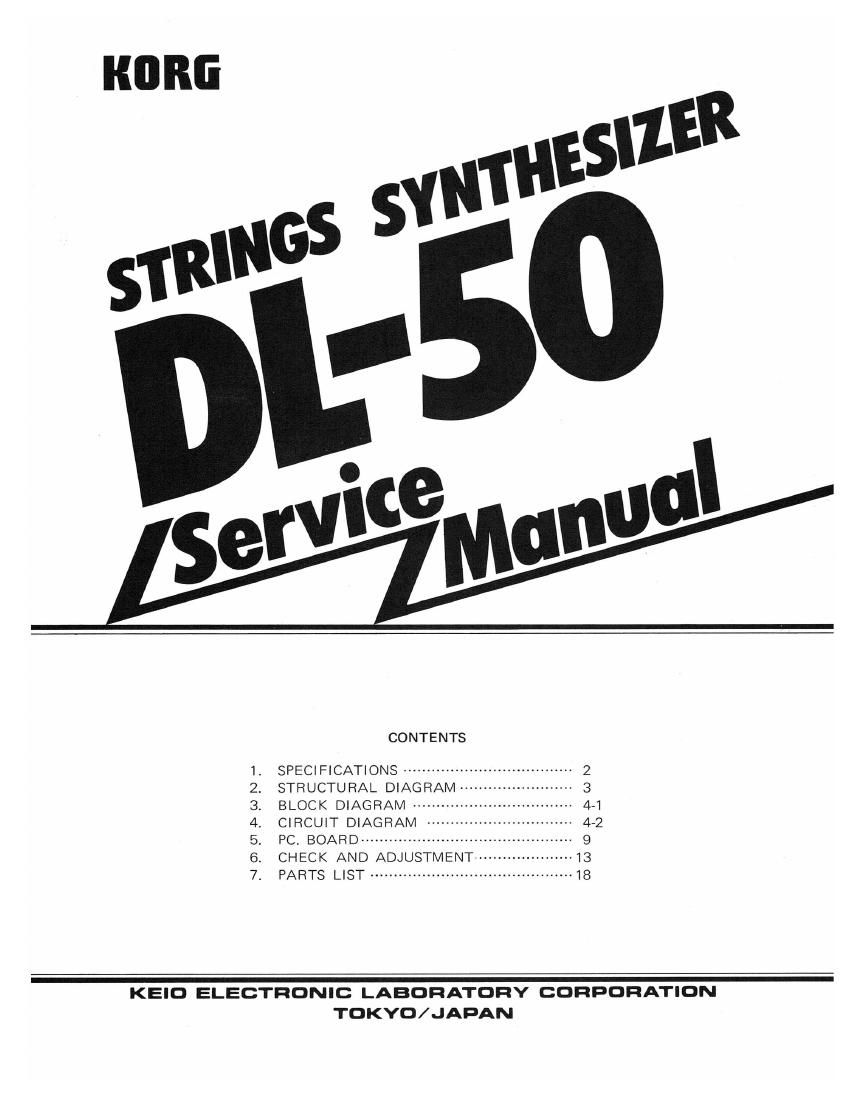

Page 1
NQPPSNNT
CONTENTS
SPEClFJCA'flONS .................................... 2
STRUCTURAL DIAGRAM- 3
BLOCK D|AGRAM .................................. 4;]
CIRCUIT DIAGRAM -
PC. BOARD ...................... 9
CHECK AND ADJUSTMENT ---|3
PARTS |_|ST ........................................... 18
KEIO ELECTRONIC LABORATORY CORPORATION
TOKYO/JAPAN
Page 2
1. SPECIFICATIONS
KEYBOARD ................................ 0C~C49 keys
<
SIGNAL GENERATORSX5 ............ 016,8',4',2',White Noise
VOLTAGE CONTROLLED FILTER .. OCut-off Frequency, Resonance, EG Depth,
Filter Mode (Bandpass/Lowpass), KBD Follower (On/Off)
ENVELOPE GENERATOR .............. OAttaCk Time, Decay Time, Sustain Level, Release Time,
VCA EG Mode ( HJ-l ), Trigger Mode (Single/Multipi
OCTAVE ................... 0 OCT Balance (16' ~ 8')
ENVELOPE GENERATOR OAttack, Release, Trigger Mode (Single/Multiple)
EQUALIZER ................................. 0 Low, High
JOY STICK .................................. O Pitch Bend, Vibrato Depth/Noise Modulation Depth
SIGNAL GENERATOR 0 FM Depth, On/Off
VCF .................................. OfcM Depth, On/Off
MODULATION GENERATOR ......... O Vibrato DEIpth, Speed
TUNE .......................................... 'Tune (i100 cents), Octave (Up/Normal)
VOLUME ...................................... .Synthesizer, Strings, Power & Volume
<| NPUTS & OUTPUTS>
OUTPUTS ..................................... O Headphones Output, Mix Outputs x 2 (High/Low), Separate
Outputs x 2 (Synthe/Strings), Trigger Output ( law I
INPUTS ........................................ OVCF fcM in (-5V ~ +5V), Trigger in ( 1cm)
DIMENSIONS ................................ 0836(W)x153IHIX 378(0) mm
WEIGHT ....................................... C 10kg
ACCESSORIES .............................. 0 Dust Cover, Connection Cord
POWER CONSUMPTION ................. OVoltage (Local Voltage, 50/60Hz), Wattage (15W)
