KORG CONCERT 15 55 SERVICE MANUAL

Extracted text from KORG CONCERT 15 55 SERVICE MANUAL (Ocr-read)

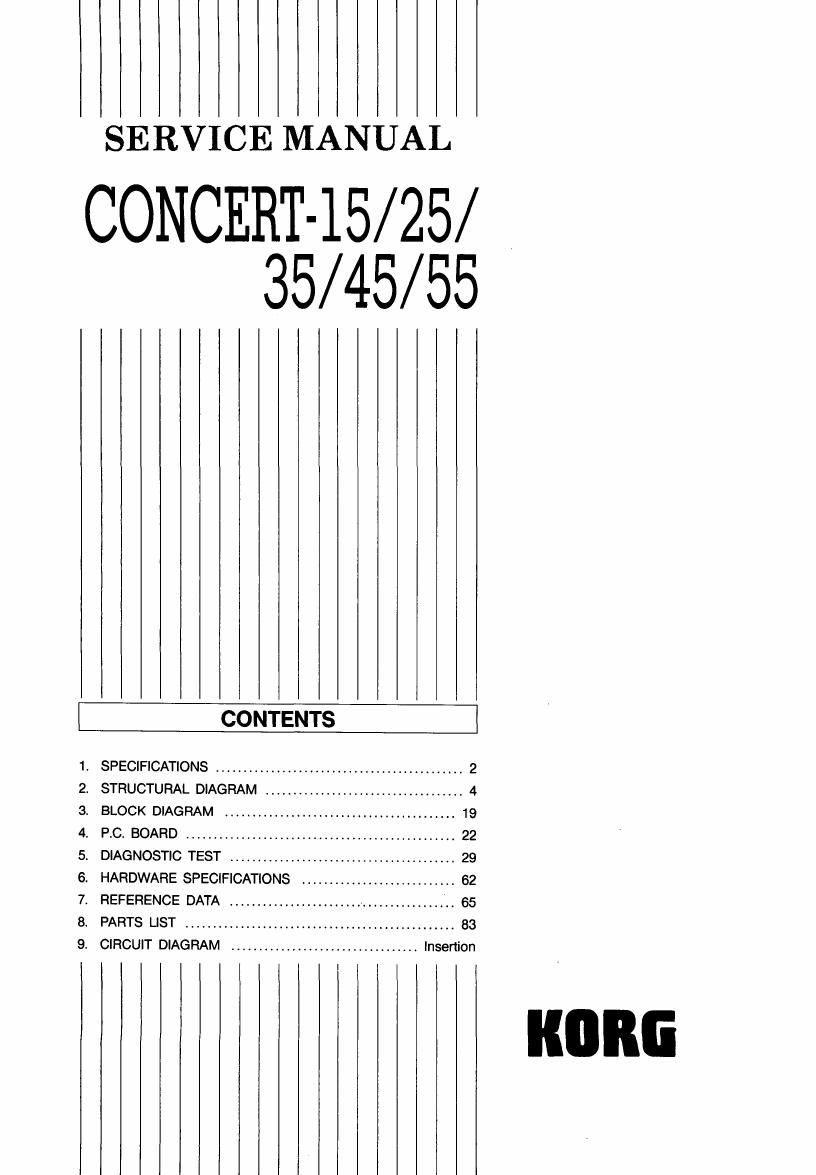

Page 1

SERVICE MANUAL

CONCERT-15/ 25/
35/45/55

CONTENTS

.........................................................

.......................................................
...........................................................

Page 2

1. SPECIFICATIONS

FOR C-45/55

Keyboard
Voices

Polyphony
Effects

Recorder
Controls

Pedal controls
Connections

Color and Gain
Main Amplifier
Speakers

Power Consumption
Power Supply
Dimensions

Weight
Accessories

FUR C-35

Keyboard
Voices
Polyphony
Effects
Recorder

Keyboard Mode
Controls

Pedal controls
Connections

Color and Gain
Main Amplifier
Speakers

Power Consumption
Power Supply
Dimensions

Weight
Accessories

I 88 keys (AD-C8) with velocity sensitivity
2 Pianol, PianoZ, Electric Pianol. Electric PianoZ,

Harpsichord, Vibes, Bass/Guitar/Drums, Organ], Organz,
Strings

: 16 Notes (0-45) / 32 Notes (C'55)
2 Advanced Surround (Room, Stage, Hall, Echo, Tremolo, Chorus,

Bright. Soft)

Z Maxilul 3,400 notes, Tempo. Metronome, Trackl, Track2.

Repeat, Record, Start/Stop, Reset with Bounce Function

1 Volume, Power, Key Transpose, Pitch, Touch,

Tranditional Classical Music Tuning

2 Damper, Soft, Sostenuto
: HEADPHONES, AUX lN(L.R), AUX DUT(L,R). MIDI lN/DUT/THRU.

PEDALS

2 Simulated Black Walnut
: 30W x 2 (C-45) / 40W x 2 (C-55)
1 Sin. x 2 (chI x 2) (C-45)

6in., 4in. x 2, 2in. x 2 (16cm, 10cm x 2, 5.4cm x 2) (0-55)

2 45W (0-45) / 120W (0-55)

i Local Voltage-AC, 50/60Hz

I 54in.(H) x 19in.(D) x 33in.(H) (1382 x 491.5 x 844mm)
2 113Ibs. (51.4KB) (C'45) / lZOIbs. (54.8k8) (C-55)

1 Key Cover, Music Stand

2 88 keys (AD-C8) with velocity sensitivity

2 Piano, Electric Piano, Harpsichord, Vibes, Organ, Strings
I 16 Notes

: Advanced Surround (Room, Hall. Chorus, Bright, Soft)

1 Maxi-um 8,400 notes, Tempo, Metronome. Trackl, TrackZ.

Repeat, Record, Start/Stop, Reset with Bounce Function

2 Single, Layer, Split (MIDI Multi)
: Volume, Power, Key Transpose. Pitch, Touch,

Tranditional Classical Music Tuning

2 Damper, Soft, Sostenuto
HEADPHONES, AUX lN(L,R), AUX 0UT(L.R), MlDl IN/OUT/THRU,

PEDALS
: Simulated Black Walnut
1 30H x 2
: Bin. x 2 (16cm x 2)
2 45M

2 Local Voltage-AC. 50/60Hz
2 54in.(W) x 181n.(D) x 3Zin.(H) (1382 x 458.5 x 815mm)

: 981bs. (44.7ke)
1 Key Cover, Music Stand
