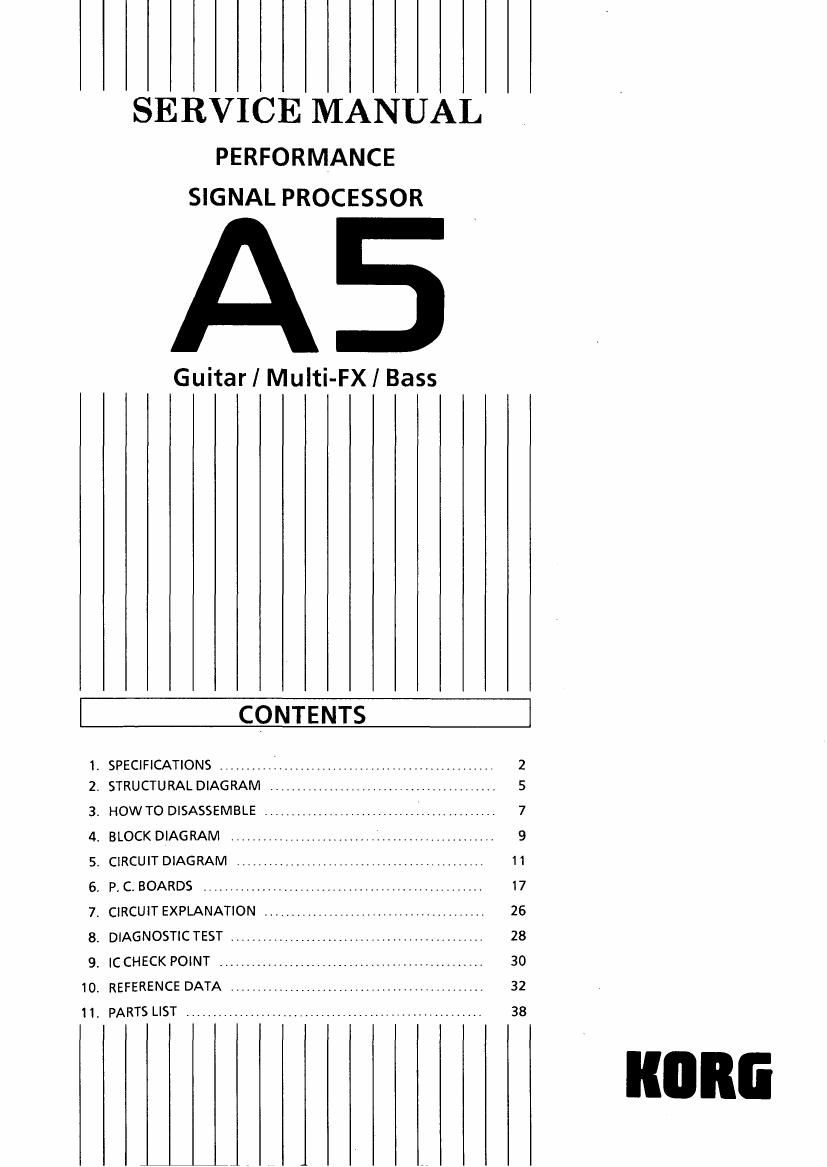

KORG A5 SERVICE MANUAL
This is the 35 pages manual for KORG A5 SERVICE MANUAL.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from KORG A5 SERVICE MANUAL (Ocr-read)
Page 2
1. SPECIFICATIONS
FOR ASGTR
INPUT : -25dBm / IMSI ( MAX +8dBm >
OUTPUT : L/MONO -10dBm / 5K£2 MAX < MAX +8dBm )
HEADPHONE IOOmV ( MAX ) / 32s} x 2
GAIN : 15dBm ( TEST MODE )
FREQUENCY RESPONSE : 20Hz nv 17KHz +1.5, -3dB
DYNAMIC RANGE : 88dB ( TEST MODE. IHF-A )
SAMPLING FREQUENCY : 44.1KHz
INTERNAL EFFECTS : CONPRESSOR
DISTORTION / OVERDRIVE
3 BAND EO
CHORUS / FLANGER
REVERE / DELAY
VRs & SVs : INPUT VOLUME x 1
OUTPUT VOLUME x 1
EFFECT SELECT ST N 1
PARAMETER VOLUME x 5
MODE SELECT SN x 1
EFFECT / PROGRAM FOOT SV x 5
EVPASS SN x 1
VRITE ST N 1
ROVER SN x 1
LEDs : 7 SEGMENT LED x 1
EFFECT ON / PROGRAM NO. LED x 5
PROGRAM MODE LED x 1
MANUAL / EDIT MODE LED x 1
PEAK LED x 1
I/Os : INPUT ( PHONE JACK )
OUTPUT L/MONO < PHONE JACK )
OUTPUT R < PHONE JACK )
PHONES ( MINI STEREO JACK >
VOLUME ( PHONE JACK )
DC 9V ( POWER JACK )
CURRENT CONSUMPTION : 250mV
POVER SOURCE : Ac ADAPTOR
DIMENSIONS : 430(w) x 205(D) x 60(H)mm
WEIGHT : 1, 5 Kg
