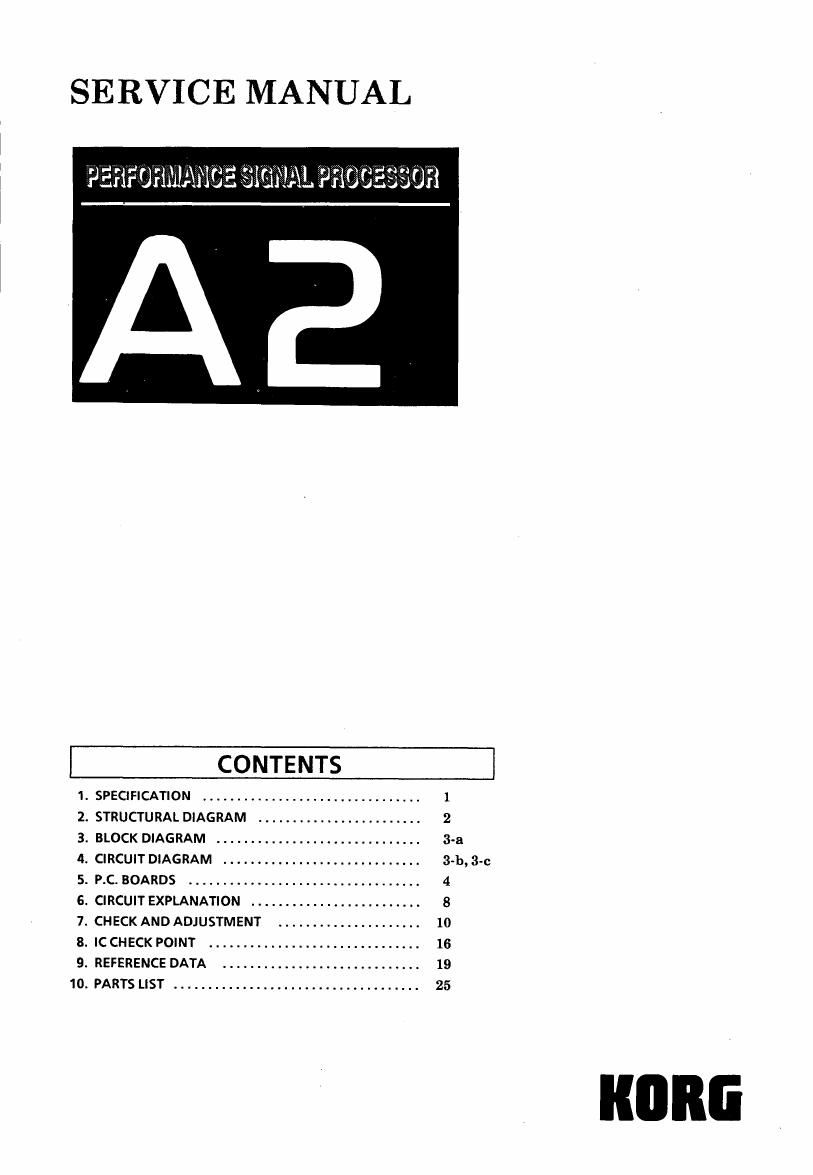

KORG A2 SERVICE MANUAL

Page 2

1. SPECIFICATION

I Front panel input : FRONT (GUITAR IN) lixed at - 2053 ( - SdBm MAX)/1M O

I Back panel input : Input level/impedance : +4dB (+19dBm MAX)/50K Q - 10dB (+5dBrn MAX) [50K 0

I Back panel output : Output level/Impedance : +4dB (19dBm MAX)/470 0 - 10dB (+5dBm MAX)/47D Q
Headphone out impedance: over 10 Q

I AD/DA : 16 - bit linear (DA: 4 - times over - sampling digital filter)

I Sampling frequency : 37.1KHz

I Frequency response : 24Hz - IBKHZ + 1.5/ - 3dB

I Dynamic range : SOdB

I Memory : No.1 - 100: No.1 - 200 when using card

I Front panel :
KEY SW : UP,DOWN.DISPLAY SELECTPARAMET ER EDIT.UTILITY.WRITE.POWER SW. DOUBLE FUNCTION EDITOR [A - F.
CHAIN/EFFECT(BYPASS)]
Display : Backlit LCD display: 40 characters X 1 row
PROGRAM No. display : 7 - segment LED X 3
Dot type LEDs : PERFORMANCEJNDIVIDUAL.BYPASS.PARAMETER EDIT,UTILITY
Input level : 5 - element level meter, with digital clip
INPUT VOLUME
PHONES LEVEL
CARD slot
GUITAR IN terminal
PHONES terminal (stereo)

I Rear panel
Switches : level attenuation switch I - 10dB/+4dB), MIDI OUT/THRU toggling switch
LINE IN terminal X 2 (LIMONO.R)
OUT PUT terminal X 2 (L/MONOR)
PEDAL/SW input terminal x 2
MIDI IN. MIDI OUT/THRU
REMOTE IN

I Internal effects: REVERB GROUP. COMPRESSOR GROUP. DISTORTION GROUP. DELAY GROUP.STEREO DELAY GROUP.
MODULATION DELAY GROUP. MODULATION GROUP, ROTARY SPEAKER GROUP. PAN GROUP. PARAMETRIC
EOUALIZER. PITCH SHIFTER GROUP. EXCITER GROUP. ENSEMBLE GROUP. PHASER GROUP, 3 BAND EQUALIZER.
SPEAKER SIMULATION GROUP. PEDAL PAN. GATE,PEDAL WAH. EARLY REFLECTION. HARD DISTORTION GROUP. AUTO
WAH GROUP. SPACE PHASER GROUP. MULTI TAP DELAY GROUP. LONG DELAY GROUP,TEMPO DELAY. DYNAMIC
MODULATION GROUP. 4CH MIXER. GATE |l GROUP. LIMITT'ER, BAND CHORUS GROUP. STEREO EXCITER.
COMP/LIMITTER. SUPER DISTORTION GROUP. HARD DISTORTION II GROUP. NEW 3 BAND EOUALIZER. MULTI - TAP
CHORUS, REVERE |l GROUPDRIVER. ROTARY SPEAKER II. MODULATION Il GROUP. STEREO COMP/LIMITTER LEFT.
STEREO COMP/LIMITFER RIGHT,STEREO PITCH SHIFTERIDELAY GROUP, SPECIAL REVERE GROUP,

I Power consumption: 26 W

I Dimensions: 482(W) X 332.5(0) x 44(H)mm (19" X 12 - 15/16" X I - 3/4)

I Weight : 4.5 kg (albs 14/wz)

I Optional accessories: VOLUME PEDAL(KVP - 001). FOOT SWITCH(P$ - LPS - 2), .
REMOTE CABLE(RCC - OSOBCC - 100).
FOOT CONTROLLER(FC6). RAM CARD(MCR - 03 only).
ROM CARD(SPC -- 01 ~)

* Specifications are subject to change without notice.
