KORG 01RW SERVICE MANUAL
This is the 47 pages manual for KORG 01RW SERVICE MANUAL.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from KORG 01RW SERVICE MANUAL (Ocr-read)
Page 1

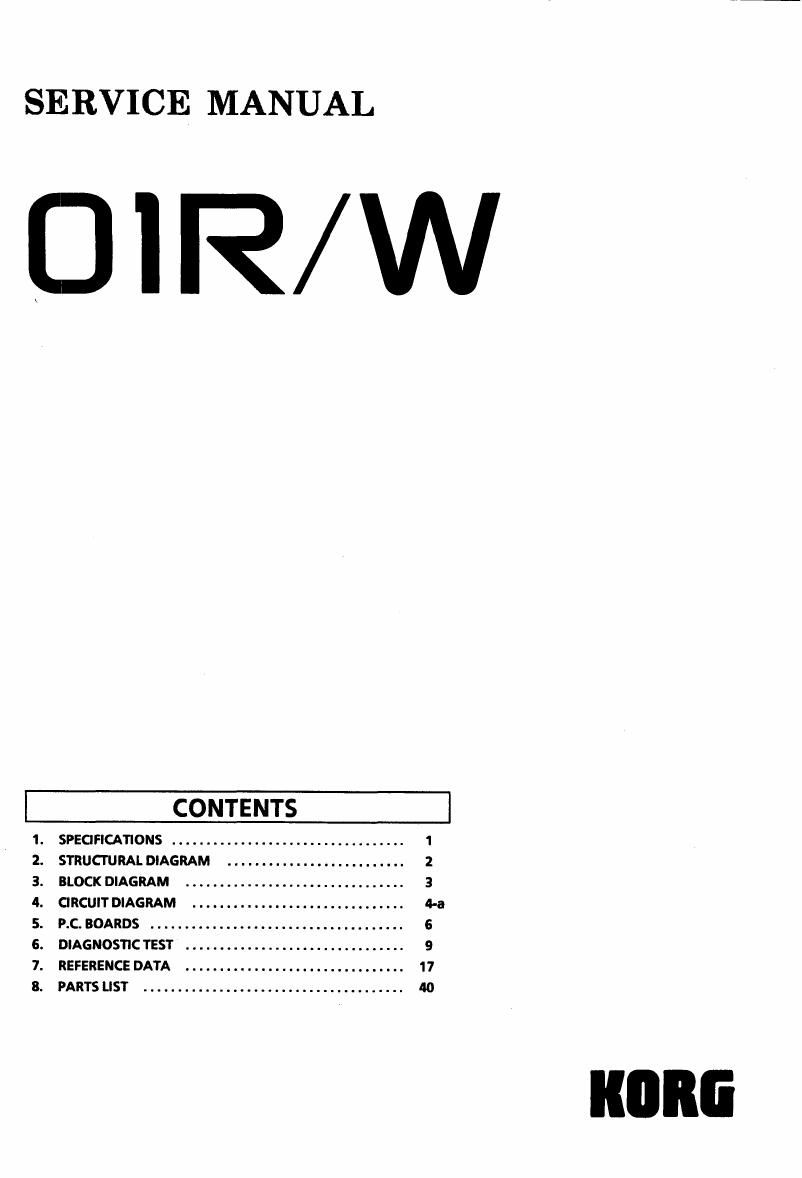

SERVICE MANUAL
DIR/W
CONTENTS
1. SPECIFICATIONS .................................. 1
2. STRUCTURALDIAGRAM .......................... 2
3. BLOCK DIAGRAM ................................ 3
4. CIRCUITDIAGRAM ............................... 4-a
5. P.C. BOARDS ..................................... 6
6. DIAGNOSTICTEST ................................ 9
7. REFERENCE DATA ................................ 17
3. PARTSLIST ...................................... no
Page 2
1. SPECIFICATIONS
Tone generation method 1
Tone generator
Waveform memory
Effects
Programs
Combinations
Sequencer section
Control inputs
Outputs
PCM card slot
PROS/SEQ card slot
MIDI
Display
Options
Power consumption
Dimensions
Weisht
Al square synthesis system (full disital proessins)
I 32 voices, 32 oscillators (single mode); 16 voices,
32 oscillators (double mode)
: PCM 48 bits
2 two digital multi_effect systems
. 200 Programs
. 200 Combinations
2 10 Songs, 100 Patterns, maximum 7000 notes. 16 tracks,
16 timbers. (dynamic voice allocation)
' Assisnable pedals 1, 2
I l/L, Z/R, 3, 4, headphones
I PCM data
3 for Program/Combination/Drum Kit/Global parameters
/Sequence data
' IN, DUT, THRU
1 LCD 64 x 240 dots, full dot matrix, with backlisht
: RAM card (SRC-512), RUM card, PCM card
t 11'
: 430(1) x 405.3(0) x 89(H)
: 4.9 ks
* Appearance and specifications are subject to change without notice
for product improvement.
