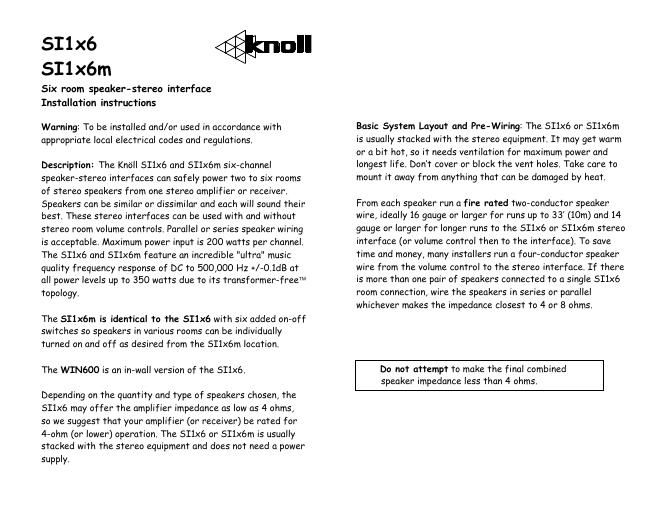

Knoll systems si 1 x 6 owners manual

Page 2

Specifications: Peak RMS power rating: 300 watts per channel (5 seconds) Continuous RMS power: 150 watts per channel Frequency Response: DC to 500,000 Hz at all power levels to 350 watts +/- 0.1dB Speaker types: Most speaker types are acceptable. Similar and dissimilar speakers can be used on one interface and each will sound their best. Speaker wiring method: Series or parallel wiring is acceptable. Speaker impedance: 4-16 ohms (single or multi- speakers) Grounds Independent left/right grounds for safe connection of all amplifier types except tube or valve amps. See below. Connection: Detachable screw terminals capable of 12-22 awg wire Dimensions: 17" x 12" x 1.75" (43 x 30 x 4.5 cm) Color: Black Note: When using tube or valve amps, we suggest adding 150 ohm 3 watt resistors in parallel across each amplifier left and right output. Warranty Knöll Systems warrants its products sold in the USA and Canada by authorized Knöll dealers to be free of defects in materials and workmanship. This warranty extends for two full years from the date of purchase by the original consumer. Any products returned to Knöll Systems and found to be defective by Knöll Systems within the warranty period will be repaired or replaced at Knöll Systems option, at no charge. Knöll Systems will not be responsible for the actual cost of installation or removal of the product, nor for any incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights. You may have additional legal rights that vary from state to state. The SI1x6 and SI1x6m have no user replaceable parts. Knoll Systems 145 Tyee Drive Point Roberts, WA 98281 11791 Machrina Way, #120 Richmond BC V7A 4V3 tel (604) 272 4555, fax (604) 272 5595 www.knollsystems.com Made in Canada. SI1x6 guide.doc  1999-2002 Knoll Systems. All Rights Reserved Note: The SI1x6m connector identification may vary from this illustration.
