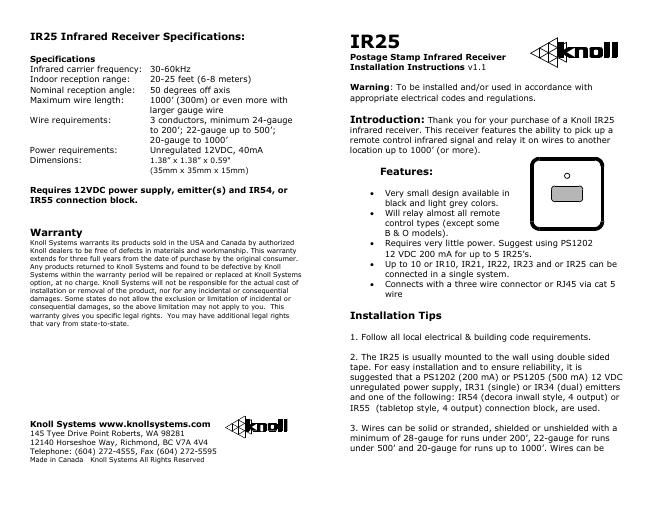

Knoll systems ir 25 owners manual

Page 1

looped from IR25 to IR25 or home run. Home runs normal ly offer more reliabilit y an d f uture f lex ibilit y. 4. IR25s can be mixed and matche d in larger systems with up to 10 infrared receivers, such as the Knoll IR21, IR22 or IR10. 5. To wire the system together, connect the IR25 12V , GND and SIG termi nals to the correspondi ng IR54 or IR55 termi nal. Prepare the wire leads to and fr om the IR25 by stripping about ¼ of the insulation from each of the three l eads. Twi st the strands ti ghtl y together so that they do not sti ck out of the connector and cause a short circuit. Strictly observe polarity. If you are connecti ng wi th the RJ45 connector you may need a RJ 45 parallelin g st rip t o parallel con nect the w ires f rom mu ltiple IR receivers. 6. Next, pl ug the si ngl e or dual emi tters i nto the IR54 or IR55 connecti on bl ock. IR25 system typical layout 7. Now plug in the PS1202 (for up to five receivers) or PS1205 for fi ve to ten recei vers. 8. The in frared sy stem is u sually lef t plu gged in all t he t ime ( to an unswi tched outl et) as i t uses very l ittl e power. 9. Test the in frared sy stem t o see if it is w ork ing properly . Brigh t su nligh t an d passiv e in frared security systems can lower the di stance that remote cont rols can work with an IR25 recei ver. If you have any questi ons or concerns, please call and ask for infrared technical support at 1 800 566 5579. The help line is open from 7:30 a.m. to 5:00 p.m., Monday to Friday, Pacific time. IR25 front and wiring identification Re ceiver CD IR31A IR34A IR 55 PS1202 12 V DC Power Suppl y Dish IR34A 17 1 Conn ec tion Block Note: IR25s are wired in parallel 12VGNDSIG IR Re ceiver Ta lkback LED Wi re w ith pr inting Wi re w ith printing IR O U T Sign al GR OU N D +1 2 VD C IR 2 5
