Klipsch scr 1 owners manual

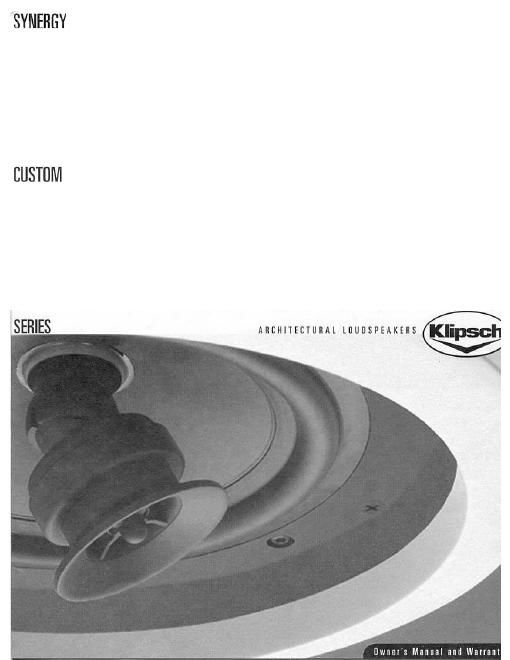

Page 1

SYNERGY

CUSTOM

SERIES ARCHITECTURAL [OUDSPEAKERS

Owner's Manual and Wimanl

Page 2

SYNEHGY CUSTOM SERI-

SCW-f,SlZW-2. SEW-3. SCH-1.8CH-2, SCH-3 Owner's Manual 7

Your new Klipsch architectural speakers have been designed to deliver
great sound while remaining unobtrusive wherever you install them. For
optimum performance, use the SEW-f. SEW-2 or SEW-3 models as front.
center or surround channels in audio or home theater applications, or as
part of a distributed sound system. Use the SEE-1, SCH-2 or Still-3
models for distributed sound in kitchens, hallways or bathrooms. They
are also suitable for use as surround channels.

lW Speaker Placement

Designed to function in any standard wall. ceiling or drop ceiling, Klipsch
in-wall speakers are engineered for years of performance. Minimum
construction requirements call for drywall or other mounting surfaces to
be at least In" thick.

When planning speaker placement, maximum performance is realized
when speakers are placed at equal distance from the listener and along a
common wall.This helps ensure the best stereo effect. For non-critical
listening environments (or when the listening position may vary widely)
speaker placement may he wherever is most convenient. although in these
cases stereo imaging maybe lost. If this option is used, Klipsch
recommends using the "mono" setting on the system's preamplifier.

IW Speaker Installation

Contents Description [luantity
Speaker Modules 2
Frames 2
Grilles Z
Screws [#6 x 1]: l 4 (SEW-l)
l5 (SCW»2. SEW-3)
Tools lleguired
#2 Phillips Screwdriver
Hole Saw

New Construction

1. Insert the frame into the wall opening and attach via the swinging
"dog" connectors integral with the frame.

2. At this point, you may paint the wall and frame together. You may also
want to paint the speaker grilles. Klipsch in-wall frames and grilles are
designed to accept most types of paint. Care should be taken to avoid
excessive paint build-up in the grille perforations.

Existing Construction

1. But the appropriate size opening in the wall using the template provid-
ed. cutout dimensions are provided in the "Specification" section at the
back of this manual. Sizes are minimum. lf accuracy of cut (straight-
ness/sguareness) cannot be achieved, you may add V." to each dimen-
sion. Be careful not to cut through any existing wiring or plumbing.
Avoid compromising any fire stops between studs.

2. Hun wiring to the wall openingfsl. Be sure to comply with any codes
that may apply in your area.

3.(al If you want to paint the decorative frame and the wall together,
insert the frame and attach with the dogs. DI] lllflT UVERTIGHTEN.
(b) If you will not he re-painting. you may immediately install the frame
and speaker assembly. The frame's mounting dogs will "sandwich" the
wall and frame together. The module is installed with the screws and
the grille is pressed into place.

[ Template cane earn

lmn'rJ l

lnuaud

timer I

ltltudrt: v Sonata Macon (man 'Ratgo t v not

lW Operating Controls

Tweeter Switch

lf installing in an acoustically bright room, such as some bathrooms and
kitchens, you may want to adjust the tweeter level located on the front
baffle. The position of this switch should always be checked prior to
speaker module installation.

Botatahle Horn
The SEW-2 and SEW-3 feature a rotatable horn which allows the horn to
be toed-in. Before the grille is installed, carefully aim the horn toward the
listening area.
