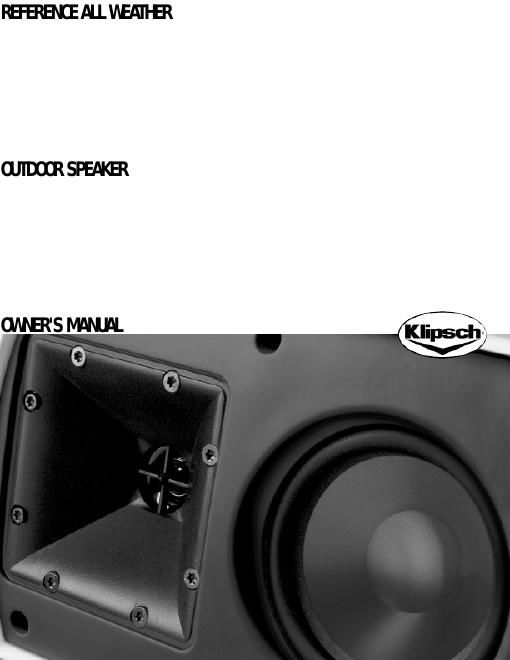

Klipsch reference all weather owners manual
This is the 9 pages manual for klipsch reference all weather owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from klipsch reference all weather owners manual (Ocr-read)
Page 1
OUTDOOR SPEAKERS IMPORTANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of theobsolete outlet. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.ONLY USE attachments/accessories specified by the manufacturer. 12.USE only with a cart,stand,tripod,bracket,or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over. 13.UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture. WARNING:Voltages in this equipment are hazardous to life. No user serviceable parts inside. Refer all servicing to qualified service personnel. CAUTION:Changes or modifications not expressly approved by the manufacturer could void the users authority to operate this device. ABOUT YOUR KLIPSCH PURCHASE Thank you for your purchase of Klipsch outdoor loudspeakers. After reading this manual and connecting your system, you will hear the result of over 55 years of stringent engineering andclass leading research and development.Like all Klipsch products,your outdoor loudspeakers feature Klipsch Tractrix ®Horn loaded Technology-the guiding design for the first Klipschorn ® developed in 1946 and for every product that has followed. Horn loading allows your speakers to deliver high sensitivity, low distortion, flat frequency response and wide dispersion, which translates to unequaled power, detail and dynamics, the hallmarks of The Klipsch Sound. Please be sure to fill out the warranty card at the back of this manual or online at www.klipsch.com so we are better able to serve you.Again,thank you for choosing Klipsch and we hope that your speakers bring life to your music for many years. KLIPSCH REFERENCE ALL WEATHER LOUDSPEAKERS (AW 400, AW 500, AW 525, AW 650, AW 500 SM models) The Klipsch Reference All Weather loudspeakers are two way designs using a high performance bass driver for the low frequencies. A Tractrix Horn with a 90˚ x 90˚ coverage pattern attached to a 1 diameter compression driver for clean and efficient reproduction ofthe high and midrange frequencies. (AW 800 SW) The AW 800 SW is an innovative approach that delivers low frequency sound in outdoor applications. This subwoofer has been designed to complement any of the Reference All Weather two way speakers and deliver strong bass response in a variety of applications. It incorporates both a low pass crossover as well as a high pass crossover. This ensures a seamless blend between the subwoofer and the models used for high frequency reproduc tion and allows for simple wiring configurations. Klipsch Reference All Weather loudspeakers are constructed from UV resistant, glass rein forced polypropylene and are remarkably durable against the elements. They can be paint ed to match any trim or siding color. PLACEMENT The Reference All Weather models are perfect for patios, decks, swimming pools, porches or any other place where exposure to the elements makes conventional loudspeaker usageunsuitable. (AW 400, AW 500, AW 525, AW 650, AW 500 SM models) To achieve the best performance from your speakers, place the pair on the same wall facing the listening area and space them six to fifteen feet apart. In the case of the AW 500 SM, only one of these may be used in some installations. It is best to center thespeaker on the listening area in these cases.When two are used, follow the same place ment guidelines for the other models. For a higher quality stereo image, angle down, or toe in, the speakers toward the primary listening area. This is especially important in installations that place the speakers well above ear level. Some additional bass will result ifyou place the speakers in a corner or near a wall.This provides greater bass coupling due to the additional reflected energy from the walls. (AW 800 SW) The AW 800 SW can be installed in a large variety of locations due to bass frequencies being less directional than high frequencies. You will achieve better results if it is installed in a corner or near a wall where additional energy can be reflected from the walls. WALL MOUNTING Included with your speakers are "C" style mounting brackets constructed of weather resistant, powder coated zinc. These brackets attach to the speaker with the supplied low profile knobs that thread onto the top and bottom studs protruding from the cabinet. This allows the speaker to be angled to the left or right when mounted vertically, or up and down when mounted horizontally. After determining the desired location and orientation of your speakers, remove the bracket from the loudspeaker and use it as a template to mark the location of the mounting holes. Check the alignment of the holes with a torpedo level before drilling the pilot hole. Use #10 12 2.5 –3 long pan head screws to attach the bracket into a wall stud. Affix the speaker to the bracket with the supplied knobs. Be sure to leave enough clearance between the end of the bracket and any adjacent wall or ceiling for installation of the knobs. If a wall stud is not available, use the appropriate type of drywall or masonry anchor to support the weight of the speaker, allowing for a generous safety margin. Please consult your dealer, custom installer or building contractor in these situations.
Page 2
(AW 500 SM model) The AW 500 SM can operate in two modes. When using one speaker, flip the switch to the Stereo position and connect the Front or Main left and right channels of your systems power amplifier to both inputs (See Figure 2A). When using more than one AW 500 SM, flip the switch to the Mono position and connect either output of your systems poweramplifier to either input cup (See Figure 2B). (AW 800 SW) The AW 800 SW can operate in two modes. If the amplifier you are using is mono, flip the switch to the left and connect the output of your systems amplifier to either of the twoinput connectors (See Figure 3A).For stereo use,flip the switch to the right and connect the output of your systems amplifier to both input connectors (See Figure 3B). You may also use an optional wall or ceiling mount that will fit the provided 3/8 – 16 inserts. Please see your authorized Klipsch dealer to see which model is right for you. CONNECTIONS Note: Proper connection of your speakers to your amplifier or receiver is vital to obtaining good sound quality. Please follow these directions carefully. Sloppy connections can cause amplifier malfunction or damage. We recommend that you use 16 gauge or heavier stranded copper wire. Use a lower gauge (heavier) wire for longer runs to reduce the amount of amplifier power lost due to the wires resistance. BUT FIRST: TYPES OF CONNECTORS Bare wire. Pull the two conductors apart for about an inch and strip approximately 1/4 inch of insulation from the end of each. (A wire stripper will simplify this, but you can use an ordinary pocket knife to cut around and through the insulation down to the wire.) Twist the strands of wire on each individual conductor tightly together. Loosen the nuts on a pair of binding posts until the holes through the metal posts are exposed, then insert the bare wire through the holes. Screw the nuts down finger tight on the wire. Make sure that no strands of wire are touching from one bind ing post to the other or to any strands from the other conductor. Failure to observe this precautionat either end of the connection can result in amplifier malfunction or damage. Pins. Many pre made speaker cables are terminated with metal pins. Loosen the nuts on a pair of binding posts until the holes through the metal posts are exposed, then insert the pins through theholes.Screw the nuts down finger tight on the pins - do not overtighten. Make sure that there is no metal to metal contact between the two pins or binding posts. Failure to observe this precau tion at either end of the connection can result in amplifier malfunction or damage. Spade lugs. Some speaker cables are terminated with U shaped connectors called spade lugs. Loosen the nuts on a pair of binding posts and slip the spade lugs around the metal posts. Screw the nuts down finger tight on the lugs and inspect to ensure they have remained firmly in place. Make sure that there is no metal to metal contact between the two lugs or binding posts. Failure to observe this pre caution at either end of the connection can result in amplifier malfunction or damage. OTHER TYPES OF SPECIALTY CONNECTORS ARE AVAILABLE TO FACILITATE HOOKING UP YOUR SPEAKERS. PLEASE CONSULT YOUR AUTHORIZED KLIPSCH DEALER FOR SUGGESTIONS AND FURTHER DETAILS. SPEAKERS TO AMPLIFIER: KEEPING IT STRAIGHT (AW 400, AW 500, AW 525, AW 650 models) One of the most important things about hooking up your speakers is keeping them in the same polarity, or phase. If they are connected out of phase, bass and sound imaging will be degraded.The easiest way to ensure that your speakers are wired in phase is to always connect the positive and negative output terminals on your amplifier or receiver to the matching input terminals on your speakers: positive (+, color coded red) to positive and negative (–, color coded black) tonegative. (See Figure 1.) Figure 3 Figure 2 Figure 1 A B A B
