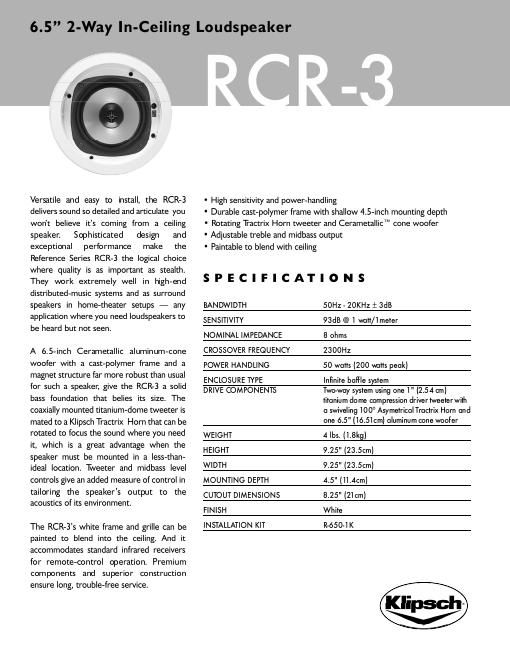

Page 1

6.5 2-Way In-Ceiling Loudspeaker

Versatile and easy to install, the RCR-3
delivers sound so detailed and articulate you
wont believe its coming from a ceiling
speaker. Sophisticated design and
exceptional performance make the
Reference Series RCR-3 the logical choice
where quality is as important as stealth.
They work extremely well in high-end
distributed-music systems and as surround
speakers in home-theater setups - any
application where you need loudspeakers to
be heard but not seen.

A 6.5-inch Cerametallic aluminum-cone
woofer with a cast-polymer frame and a
magnet structure far more robust than usual
for such a speaker, give the RCR-3 a solid
bass foundation that belies its size. The
coaxially mounted titanium-dome tweeter is
mated to a Klipsch Tractrix Horn that can be
rotated to focus the sound where you need
it, which is a great advantage when the
speaker must be mounted in a less-than-
ideal location. Tweeter and midbass level
controls give an added measure of control in
tailoring the speakers output to the
acoustics of its environment.

The RCR-3s white frame and grille can be
painted to blend into the ceiling. And it
accommodates standard infrared receivers
for remote-control operation. Premium
components and superior construction
ensure long, trouble-free service.

' High sensitivity and power-handling

' Durable cast-polymer frame with shallow 4.5-inch mounting depth
° Rotating Tractrix Horn tweeter and CerametallicTM cone woofer

' Adjustable treble and midbass output

' Paintable to blend with ceiling

SPECIFICATIONS

BANDWIDTH 50Hz - ZOKHZ i 3dB

SENSITIVITY 93dB @ I wott/Imeter

NOMINAL IMPEDANCE 8 ohms

CROSSOVER FREQUENCY 2300Hz

POWER HANDLING 50 watts (200 watts peak)
ENCLOSURE TYPE Infinite baffle system

DRIVE COMPONENTS Two-way system using one I" (2.54 cm)

titanium dome compression driver tweeter with
a swiveling 100° Asymetricol Tractrix Horn and
one 6.5" (16.51 cm) aluminum cone woofer

WEIGHT 4 lbs, (Takg)
HEIGHT 9.25" (23.5ch
WIDTH 9.25" (23.5ch
MOUNTING DEPTH 4.5" (11.4ch
CUTOUT DIMENSIONS 8.25" (21ch
FINISH White
INSTALLATION KIT R-650-l K
