Klipsch Quintet SL Owners Manual

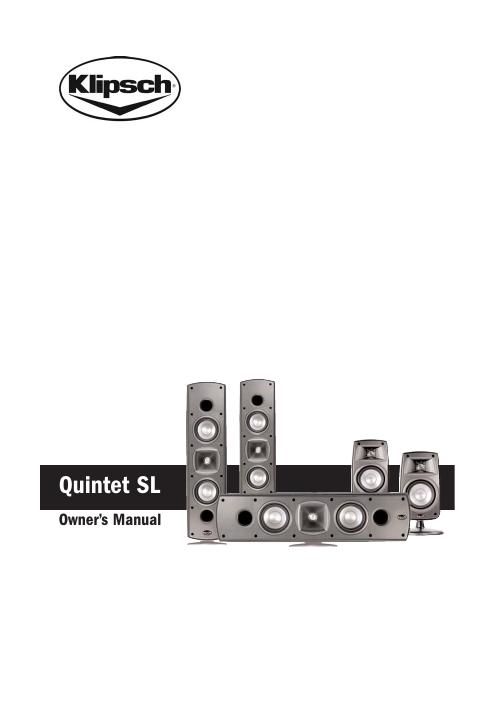

Page 1

Page 2

IMPORTANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. ONLY USE attachments/accessories specified by the manufacturer. 10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 11. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture. The product must not be exposed to dripping and splashing and no object filled with liquids - such as a vase of flowers - should be placed on the product. No naked flame sources - such as candles - should be placed on the product. WARNING: Voltages in this equipment are hazardous to life. No user -serviceable parts inside. Refer all servicing to qualified service personnel. CAUTION: Changes or modifications not expressly approved by the manufacturer could void the user s authority to operate this device. IMPORTANT: Promptly inspect your speakers for any shipping damage that may have occurred during transit. If you discover any concealed shipping damage, please report it to your dealer or the shipping company responsible for your products safe transit. Keep all original cartons and packing material for future safe transport.PLACEMENT Before You Start– Some Klipsch speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation. Left and Right Main Channel Speakers– For optimum perf ormance, place your speakers 6 to 15 feet (2 to 4.5m) apart and at least 24 inches (60.8cm) from side walls. They may also be toed-in slightly for better stereo imaging. The listening position should be approximately 1 to 1.5 times the distance separating the speakers. Refer to figures 1, 2 and 3 for connection and placement. Center Channel Speakers– Center channel speakers are designed to place dialogue and primar y sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to figures 2, 3 and 4 for connection and placement. Rear Surround Channel Speakers– Rear surround speakers are designed to recrea te the sense of space and ambiance that many of todays surround sound technologies provide. Quintet surround speakers can be placed on the wall directly adjacent to or on the wall behind the listening position using the foot as the mounting bracket. Refer to Diagram 4 and Figures 2 and 4 for connection and placement. CONNECTIONS Conventional Connection– Using 16-gauge or larger speaker wire, connect the RED positive (+) terminal of the LEFT speaker to the RED positive (+) terminal of your amplifiers LEFT channel. Connect the BLACK negative (-) terminal of the LEFT speaker to the BLACK negative (-) terminal of your amplifiers LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 4. Make sure no bare wires from any of the connections touch any other bare wires or terminals as this could cause a short and damage your equipment. Amplifier Requirements– Klipsch speakers are highly ef ficient and will work well with a wide variety of ampli- fiers. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods of time can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime. CARE AND CLEANING Your speakers have a durable finish that should only require dry dusting. Avoid use of abrasive or solvent-based cleaners and harsh detergents. The brush attachment of your vacuum or a damp cloth should remove any dust from your speaker grilles. QUINTET SL SPEAKER SYSTEM
