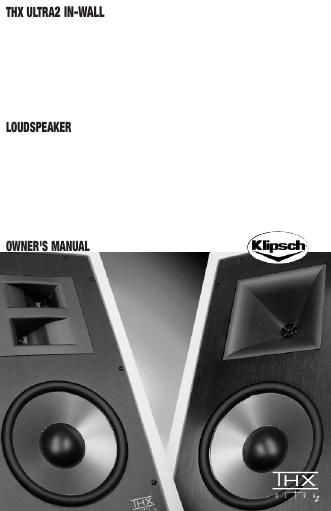

Klipsch ks 7800 thx owners manual

Page 2

WKERS-

IMPORTANT SAFETV INSTRUCTIONS

READ these instructions.

KEEP these instructions.

HEED all warnings.

FOLLOW all instructions.

DO NOT use this apparatus near water

CLEAN ONLY with dry cloth.

DO NOT block any ventilation openings. install in accordance

With the manulaclurer's instructions

8. DO NOT install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat

9. DO NOT defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades With one Wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are provided
for your safety. if the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

l1. ONLY USE attachments/accessories specified by the
manufacturer.

l2. USE only With a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold With the apparatus When a cart is
used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused
for long periods of time.

14. REFER ali servicing to qualified service personnel. SerVicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or obiecfs have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.

51.03.01.5PJNT

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.

This symbol indicates that dangerous voltage
A constituting a risk of electric shock is present Within
this unit.

To reduce the risk of fire or electrical shock, do not expose this
product to rain or moisture. The product must not be exposed to
dripping and splashing and no object filled wrlh liqurds - such as a
vase of flowers - should be placed on the product.

No naked flame sources - such as candles - should be placed on

the product.

CAUTION

lLS ix

English

WARNING: Voltages in this equipment are hazardous to life.
No user-serviceable parts inside. Refer all servicing to qualified
service personnel.

ABOUT YOUR KLIPSCH PURCHASE

Your new Kiipsch THX Ultra2 architectural speakers have been
designed to deliver great sound while remaining unobtrusive
wherever you install them.

The KL-7800-THX is designed for Left, Center or Right channel
use or wherever a monopole speaker is called for, such as
surround back channels in Ultra2 configurations. The result is a
flush-mount speaker that creates a powerful statement in any
application.

The KS-7BOO-THX features a patent-pending horn array,
consisting of two vertically stacked Tractrix® Hom-loaded tweet-
ers. It is designed specifically for surround use in home theater
applications. The result is a flush-mount speaker that creates
enveloping ambient sound fields and localizing specific surround
effects through the use of Klipsch's proprietary Wide Dispersion
Surround Technology (WDSTTM). The careful alignment of the two
controlled-directivity Tractrix Horn tweeters, angled opposite one
another, yields an incredibly Wide dispersion pattern from a
flush-mount design.

Minimum Tools Required for installation
#2 Phillips Screwdriver

Wire strippers

Level

Stud finder

Saw

ln-Wall Speaker Placement (Refer to Figures 1 and 2)
Designed to function in any standard wall, Kiipsch THX Ultra2
in-wall speakers are engineered for years of performance.
Minimum construction requirements call for drywall or other
mounting sur1aces to be at least 1/2" thick.

To maximize performance, install the KL-7800-THX equally
spaced to either side of the Video display. When being used as a
center channel, please locate this speaker as close to the video
display as is practical.

The KS-7800-THX should be installed to either side of the
listening position at an equal distance from the listener whenever
possible. You may also install them behind the listening position
and achieve good results.

" Figure 1
