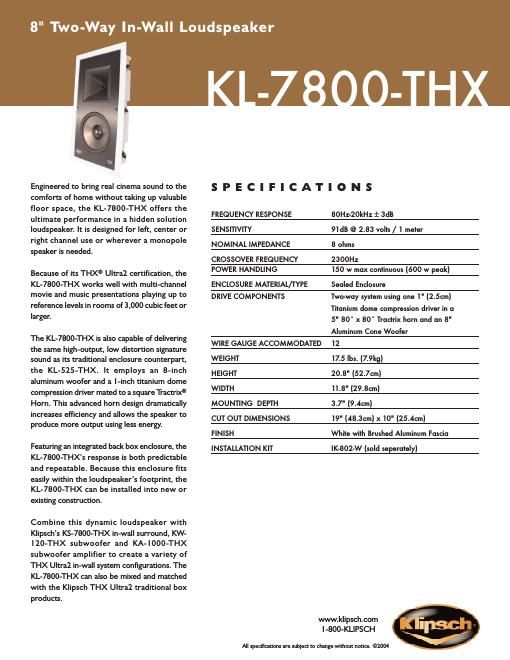

8" Two Way ln-Wall Loudspeaker

Engineered to bring real cinema sound to the S P E c I F I C A T I o N s

comforts of home without taking up valuable
floor space, the KL-7800»THX offers the

. . . , FREQUENCY RESPONSE 80Hz-20kHz t 3dB
ultimate performance in a hidden solution
loudspeaker. It is designed for left, center or SENSITIVITY 9IdB @ 2.83 volis / 1 meter
right channel use or wherever a monopole NOMINAL IMPEDANCE 8 ohms
speaker is needed.

CROSSOVER FREQUENCY 2300Hz

Because of its THX® Ultra2 certification, the POWER HANDLING 150 w max c°"fi"°s (600 w peak)
KL-7800-THX works well with multi-channel ENCLOSURE MATERIAL/TYPE Sealed Enclosure
movie and music Presentations Playing UP to DRIVE COMPONENTS Two-way syslem using one 1" (2.5cm)

reference levels in rooms of3,000 cubic feet or Tilonium dome compression driver in a

larger. 5" 80' x 80 Tracfrix horn and an 8"
Aluminum Cone Woofer
WIRE GAUGE ACCOMMODATED 12

The KL-7800-THX is also capable of delivering
the same high-output, low distortion signature
sound as its traditional enclosure counterpart, WEIGHT 17-5 lbs. l7-9k9l
the KL-SZS-THX. It employs an 8-inch HEIGHT 20.8" (527ch
aluminum woofer and a |-inch titanium dome

compression driver mated to a square Tractrix® WIDTH '8" (29'8cm)
Horn. This advanced horn design dramatically MOUNTING DEPTH 3.7" (9.14ch
increases efficiency and allows the speaker to CUT OUT DIMENSIONS 19.. [48.3cm) x 10.. [25.4cm)
produce more output using less energy.

FINISH While with Brushed Aluminum Fascia
Featuring an integrated back box enclosure, the INSTALLATION KIT |K-802-W (50 separate)

KL-7800-THXs response is both predictable
and repeatable. Because this enclosure fits
easily within the loudspeaker's footprint, the
KL-7BOO-THX can be installed into new or
existing construction.

Combine this dynamic loudspeaker with
Klipschs KS-7800-THX in-wall surround, KW-
|20-THX subwoofer and KA- I 000-THX
subwoofer amplifier to create a variety of
THX Ultra2 in-wall system configurations. The
KL-7800-THX can also be mixed and matched
with the Klipsch THX Ultra2 traditional box
products.

www.k|ipsch.com
I-800-KLIPSCH

All specifications are subiect to change without notice. ©1004
