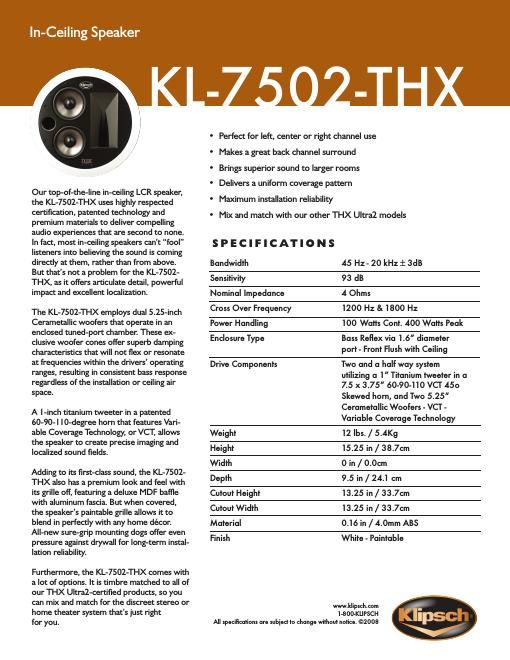

Page 1

ln-Ceiling Speaker

' Perfect for left, center or right channel use
° Makes a great back channel surround
° Brings superior sound to larger rooms

' Delivers a uniform coverage pattern

Our top-of-the-line in-ceiling LCR speaker,
the KL-7502-THX uses highly respected
certification, patented technology and
premium materials to deliver compelling
audio experiences that are second to none.
In fact, most in-ceiling speakers cant fool
listeners into believing the sound is coming
directly at them, rather than from above.
But that's not a problem for the KL-7502-
THX, as it offers articulate detail, powerful
impact and excellent localization.

The KL-7502-THX employs dual 5.25-inch
Cerametallic woofers that operate in an
enclosed tuned-port chamber. These ex-
clusive woofer cones offer superb damping
characteristics that will not flex or resonate
at frequencies within the drivers operating
ranges, resulting in consistent bass response
regardless of the installation or ceiling air
space.

A l-inch titanium tweeter in a patented
60-90-I IO-degree horn that features Vari-
able Coverage Technology, or VCT, allows
the speaker to create precise imaging and
localized sound fields.

Adding to its first-class sound, the KL-7502-
THX also has a premium look and feel with
its grille off, featuring a deluxe MDF baffle
with aluminum fascia. But when covered,
the speakers paintable grille allows it to
blend in perfectly with any home décor.
All-new sure-grip mounting dogs offer even
pressure against drywall for long-term instal-
lation reliability.

Furthermore, the KL-7502-THX comes with
a lot of options. It is timbre matched to all of
our THX UltraZ-certified products, so you
can mix and match for the discreet stereo or
home theater system thats just right

for you.

° Maximum installation reliability

° Mix and match with our other THX UltraZ models

SPECIFICATIONS

Bandwidth 45 Hz - 20 kHz i 3dB
Sensitivity 93 dB

Nominal Impedance 4 Ohms

Cross Over Frequency

1200 Hz & 1800 Hz

Power Handling

100 Watts Cont. 400 Watts Peak

Enclosure Type

Bass Reflex via 1.6 diameter
port - Front Flush with Ceiling

Drive Components

Two and a half way system
utilizing a 1" Titanium tweeter in a
7.5 x 3.75 60-90-110 VCT 450
Skewed horn, and Two 5.25
Cerametallic Woofers - VCT -
Variable Coverage Technology

Weight 12 lbs. / 5.4Kg
Height 15.25 in / 38.7cm
Width 0 in / 0.0cm

Depth 9.5 in / 24.1 cm
Cutout Height 13.25 in / 33.7cm
Cutout Width 13.25 in / 33.7cm
Material 0.16 in / 4.0mm ABS
Finish White - Paintable

www.klipsch.com

1-800-KLIPSCH

All specifications are subject to change without notice. ©2008
