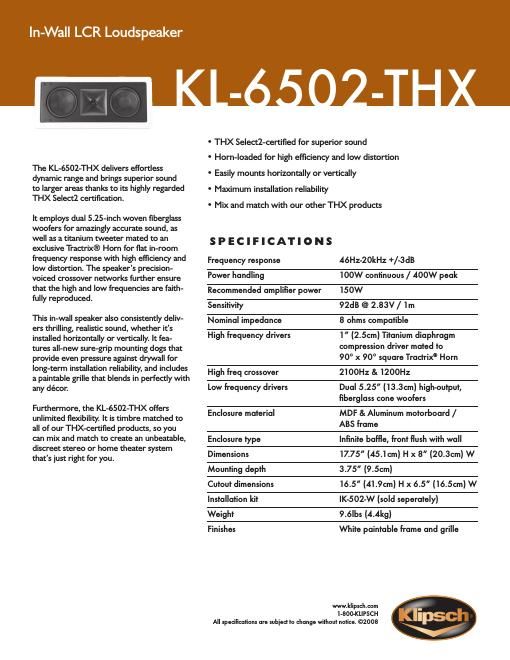

Page 1

ln-Wall LCR Loudspeaker

' THX Seleth-certified for superior sound

° Horn-loaded for high efﬁciency and low distortion
The KL-6502-THX delivers effortless
dynamic range and brings superior sound
to larger areas thanks to its highly regarded 0 Maximum installation reliability
THX Seleth certiﬁcation.

' Easily mounts horizontally or vertically

' Mix and match with our other THX products

it employs dual 5.25-inch woven ﬁberglass
woofers for amazingly accurate sound, as

well as atitanium tweeter mated to an s P E C I F I CAT I o N S
exclusive Tractrix® Horn for flat in-room
frequency response with high efficiency and Frequency response 46Hz-20kHz +/-3dB
low distortion. The speakers precision- . I
voiced crossover networks further ensure Power handling 100W c°"l'"°"5 / 400W peak
that the high and low frequencies are faith- Recommended amplifier power 150w
fully reproduced.
Sensitivity 92dB @ 2.83V/ lm
This in-wall speaker also consistently deliv- Nominal impedance 8 ohms compatible
ers thrilling, realistic sound, whether its I I II I I I
installed horizontally or vertically. It fea- High frequency drivers 1 (2.5cm) TitaInium diaphragm
tures all-new sure-grip mounting dogs that compression ere' "0le '0
provide even pressure against drywall for 90° x 90° square Tractrix® Horn
long-term installation reliability, and includes H h f 2] H 12 H
a paintable grille that blends in perfectly with lg req crossover 00 Z & 00 2
any décor. Low frequency drivers Dual 5.25 (13.3cm) high-output,
fiberglass cone woofers
Furthermore, the KL-6502-THX offers . .
unlimited ﬂexibility. It is timbre matched to Enclosure material 24:st& Aluminum motorboard /
all of our THX-certified products, so you rame
can mix and match to create an unbeatable, Enclosure type Infinite bafﬂe, front flush with wall
discreet stereo or home theater system . , ,, ,,
thats just right for you. Dimensions 17.75 (45.1 cm) H x 8 (20.3cm) W
Mounting depth 3.75 (9.5cm)
Cutout dimensions 16.5 (41.9cm) H x 6.5 (16t5cm) W
Installation kit lK-502-W (sold seperately)
Weight 9.6lbs (4.4kg)
Finishes While paintable frame and grills
