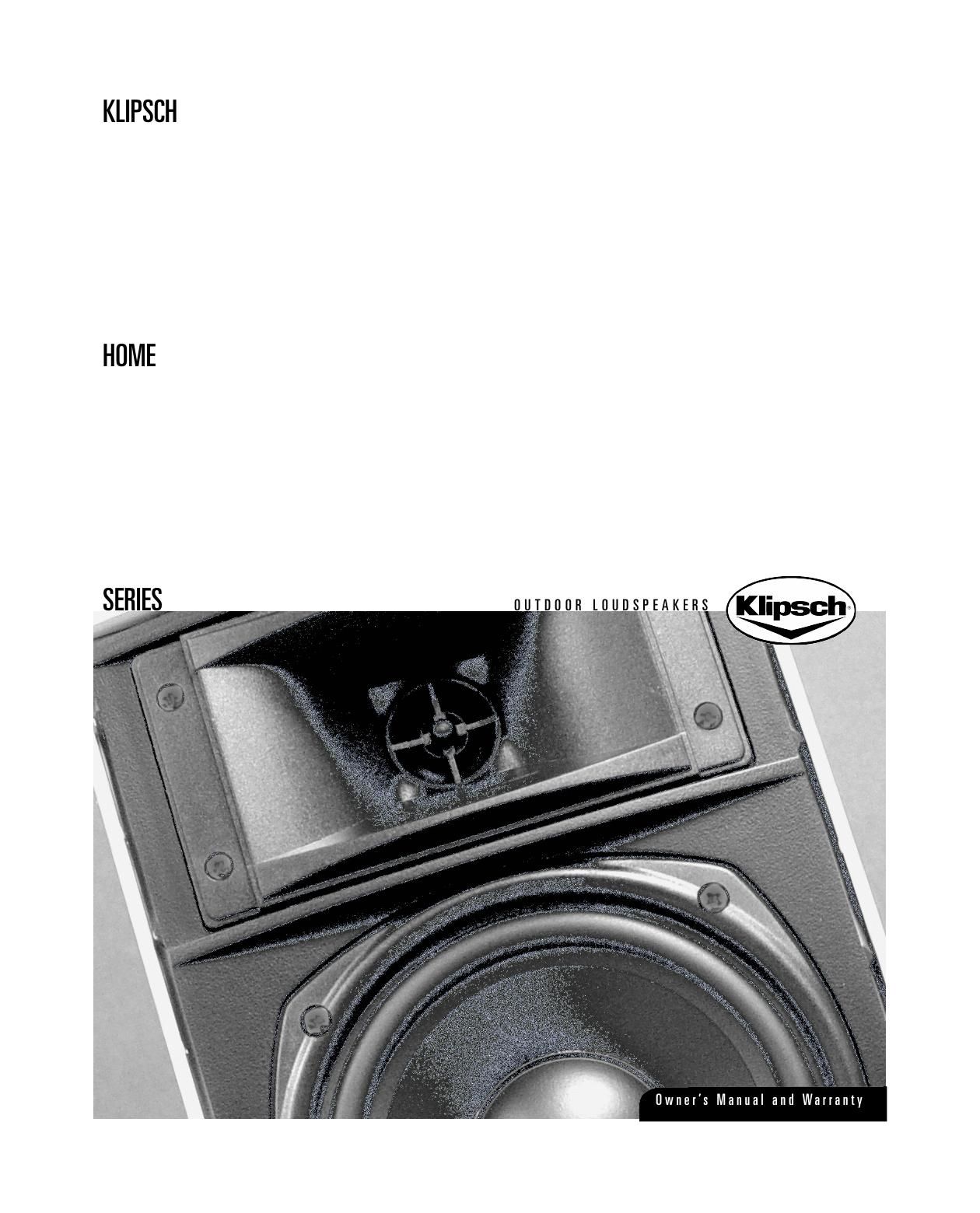

Klipsch kh o7 owners manual
This is the 4 pages manual for klipsch kh o7 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from klipsch kh o7 owners manual (Ocr-read)
Page 1
I M P O R TA N T S A F E T Y IN S T R U C T IO N S 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT block any ventilation openings. Install in accor - dance with the manufacturer's instructions. 6. DO NOT install near any heat sources such as radia tors, heat reg isters, stoves, or other a pparatus (including ampli - fiers) that produce heat. 7. PROTECT the power cord from being walked on or pinched, particularly at plugs,convenience receptacles, and the point where they exit from the apparatus. 8. ONL Y USE a ttachments/accessories specified by the manufacturer . 9. USE only with a cart, stand, tripod, bracket, or table speci - fied b y the manufacturer , or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to a void injury from tip-over . 10. REFER all servicing to qualified ser vice personnel. Ser vicing is required when the apparatus has been dam - a ged in an y wa y , such as power -supply cord or plug is damaged, does not operate normall y , or has been dropped. This symbol indicates that there are important opera ting and maintenance instructions in the literature accompan ying this unit. This symbol indica tes that dangerous voltage constituting a risk of electric shock is present within this unit. W ARNING: V oltages in this equipment are hazardous to life. No user -ser viceable parts inside. Refer all servicing to qualified ser vice personnel. CA UTION: Changes or modifications not expressly approved b y the manufacturer could void the user s authority to opera te this device. If t h is u n it is p u rc h a s e d o u ts id e o f th e U .S ., p le a s e c o n ta c t y o u r lo c a l d e a le r o r d is trib u to r fo r s e rv ic e c e n te r in fo r m a t i o n . If p u rc h a s e d in s id e th e U .S . a n d d e a le r s e rv ic e is n o t a v a i l a b l e , c o n ta c t K lip s c h C u s to m e r S e rv ic e f o r a re tu rn a u th o riza tio n (R A ) n u m b e r b e fo r e s h i p p i n g . F o r fu rth e r s e rv ic e in fo r m a t i o n , c o n t a c t : K L IP S C H C U S T O M E R S E R V IC E 3 5 0 2 W O O D V IE W T R A C E , S U IT E 2 0 0 I N D I A N A P O L I S , IN 4 6 2 6 8 -1 1 0 4 0 1 - 8 8 8 - 5 5 4 - 5 6 6 5 W W W . K L I P S C H . C O M PLACEMENT OF THE KHO-7 There are a number of a pplications where the Klipsch KHO-7 is the perfect solution for outdoor sound – patios, decks, swimming pools, porches or any other place where exposure to the elements makes conventional loudspeaker usa ge unacceptable. Man y of the placement recommendations for indoor use also apply in outdoor a pplications. The most common difference is the desire or need to mount the speakers a bove ear level on a wall or under an overhang. T o achieve the best perf ormance from your KHO-7, place both speakers on the same wall facing the listening area and space them six to 15 feet a part. For a higher quality stereo ima ge, angle down, or toe in, the speak - ers toward the primar y listening area. This is especiall y important in installations tha t place the speaker well a bove ear level. Some additional bass will result if you place the speakers in a corner or near a wall: This pro - vides g reater bass coupling due to the additional ref lected energy from the walls. W ALL MOUNTING Included with your KHO-7 speakers are C-style mounting brackets tha t provide tremendous placement flexibility . Constructed of weather -resistant powder -coa t- ed aluminum to ensure years of relia ble ser vice, these brackets are the recommended method of mounting and supporting your speakers. The bracket is attached to the speaker with the supplied low profile knobs, which thread into the top and bottom of the ca binet. This allows the speaker to be angled to the left or right when mounted verticall y , or up and down when mounted horizontall y . After determining the desired location and orienta tion of your KHO-7, remove the bracket from the loudspeaker and use it as a templa te to mark the location of the mounting holes. Check the alignment of the holes with a torpedo level before drilling the properl y sized pilot hole at the marked loca tions. Use #10-12, 2.5–3" long pan head screws to a ttach the bracket into a wall stud. Af fix the speaker to the bracket with the supplied knobs. Be sure to leave enough clearance between the end of the bracket and an y adjacent wall or ceiling for installation of the knobs. If a wall stud is not a vaila ble, use the a ppropria te type of dr ywall or masonr y anchor to support the weight of the speaker , allowing for a generous safety marg in. Please consult your dealer , custom installer or building contractor in these situa tions. USE OF THE PORT PLUG A vin yl port plug is included for installa tions that ma y expose the KHO-7 to extremel y wet wea ther conditions. The internal components are wa ter -resistant, however , it is best to a void having standing wa ter inside the ca binet whenever possible. T o insert the plug, gentl y pry off the metal g rille taking care not to bend it or chip the paint. Insert the closed end of the plug into the port until the fit is snug. DO NOT use excessive force! Use of the port plug will result in a slight loss in the bass frequencies, but will make your speakers more wea ther -resistant and ensure a long and trouble-free life. HOW T O CONNECT THE KHO-7 Switch your electronics OFF when making all connec - tions! Connect your KHO-7 all-wea ther speakers to the Front or Main left and right channels of your sys - tem s power amplifier . Be sure to obser ve proper polari - ty (+ to + and – to –) and a void ha ving excess bare wire at the connectors, which could short together causing possible amplifier dama ge. Refer to About Speaker Wire Connections. ABOUT SPEAKER WIRE CONNECTIONS When making an y type of speaker wire connection, be sure to obser ve proper polarity . Most speaker wire is color -coded or has some distinguishing feature dif feren - tia ting the two conductors. Speaker wire connectors on most loudspeakers and amplifiers are also color -coded. T ypicall y , Red is positive (+) and Black is negative (–), or g round. It does not matter which wire conductor is con - nected to the positive or nega tive connection of your equipment as long as you are consistent. Be sure tha t the connections from the amp to the speaker on all of the various channels of your system are connected in a like manner . If this is not done, the amount of bass will be reduced and the stereo ima ge will be compromised. Be careful not to ha ve excess bare wire or loose strands of wire that could short from positive to nega - tive as this could dama ge the speaker and amplifier . High quality speaker ca ble can make an audible improvement in the sound of your speakers. Y our Klipsch dealer can assist you in selecting the proper ca ble to ensure optimal perf ormance from your loud - speakers. P AINTING Y OUR KHO-7 The grille and cabinet of your KHO-7 ma y be painted to ma tch the exterior decor of your house or to blend in with the surrounding environment. For best results, properly prepare the surface before painting. Lightl y sand all surfaces to be painted (ca binet and g rille) with 300-400 grit sand paper . W ash these surfaces with a moistened cloth dipped into a mild detergent to remove any fingerprints or g rease. Allow to dr y before painting. Care must be taken to mask of f the front of the speaker to protect the tweeter , woofer and front panel from over -spra y . This will maintain the existing uniform dark color behind the g rille and protect the woofer and tweeter from being dama ged by the paint. Affix masking tape to the inboard wall of the g rille g roove and attach plastic or newspa per to the tape to cover the entire front panel of the speaker . Also before painting, mask the speaker wire binding posts on the rear of the ca bi - net to preser ve the color -coding and conductivity . Make sure tha t the black and red knobs are screwed down to cover the threaded metal shafts and wra p the knobs securel y in masking ta pe. Remove the g rille before painting. For best results, use several light coats of paint instead of one hea vy coat. This will help prevent the perf orations in the grille from becoming clog ged with paint.
Page 2
W ARRANTY-U .S . AND CANADA ONL Y The W arranty below is valid only for sales to consumers in the United States or Canada. KLIPSCH A UDIO TECHNOLOGIES warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the da te of pur - chase. During the W arranty period, KLIPSCH will repair or replace (at KLIPSCH s option) this product or any defective parts (excluding electronics and amplifiers). For products that have electronics or amplifiers, the W arranty on those parts is for a period of two (2) years from the date of purchase. To obtain W arranty ser vice, please contact the KLIPSCH authorized dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH product, it can be returned, freight paid, to KLIPSCH for repair . Please call KLIPSCH a t 1-800-KLIPSCH for instructions. Y ou will need to ship this product in either its original packa g ing or packa g ing af fording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the W arranty period, must be presented or included to obtain W arranty ser vice. This W arranty is invalid if (a) the factor y-applied serial number has been altered or removed from this product or (b) this product was not purchased from a KLIPSCH authorized dealer . Y ou ma y call 1- 800-KLIPSCH to confirm that you have an unaltered serial number and/or you purchased from a KLIPSCH authorized dealer . This W arranty does not cover cosmetic dama ge or damage due to misuse, a buse, negligence, acts of God, accident, commercial use or modification of, or to any part of, the product. This W arranty does not cover damage due to improper operation, maintenance or installation, or attempted repair b y anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this W arranty . This W arranty does not cover product sold AS IS or WITH ALL F A UL TS. REP AIRS OR REPLACEMENTS AS PROVIDED UNDER THIS W AR - RANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. KLIP - SCH SHALL NOT BE LIABLE FOR ANY INCIDENT AL OR CONSE - QUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED W ARRANTY ON THIS PRODUCT . EXCEPT TO THE EXTENT PROHIB - ITED BY LA W , THIS W ARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED W ARRANTIES WHA TSOEVER, INCLUDING BUT NOT LIMITED TO, THE W ARRANTY OF MER - CHANT ABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclu - sions may not appl y to you. This W arranty gives you specific legal rights, and you may have other rights, which var y from sta te to sta te. W ARRANTY–OUTSIDE THE UNITED ST A TES AND CANADA The warranty on this product if it is sold to a consumer outside of the United States or Canada shall compl y with applicable law and shall be the sole responsibility of the distributor that supplied this product. T o obtain an y applicable warranty service, please contact the dealer from which you purchased this product, or the distribu - tor tha t supplied this product. For multiple speaker pur chases, please fill out only one warranty card. Name: Str eet Address: City/State/Zip: Home Phone: W ork Phone: E-mail Addr ess: W ould you like to receive the latest product updates and news via e-mail? ❑ Y es ❑ No Pr oduct Purchase Model and serial number must be included to honor y our w arr anty card. For multiple speaker purchases, please fill out only one warranty car d. Model Serial Number Model Serial Number Model Serial Number Model Serial Number Model Serial Number Model Serial Number What store did y ou purchase your Klipsch pr oducts fr om? Stor e Name: State: How did y ou hear about Klipsch? ❑ Audio/Home Thea ter Ma gazine ❑ Other Magazine ❑ TV ❑ Radio ❑ Newspa per ❑ T rade Show ❑ Friend ❑ Retail Dealer ❑ Direct Mail Ha v e you purchased Klipsch pr oducts before? ❑ Y es ❑ No If y es, what products? Pr oduct Name(s): When do you hope to purchase additional loudspeakers? ❑ 6 mos. – 1 yr . ❑ 1–2 yrs. How likely are you to consider Klipsch products for your upcoming purchases? ❑ V er y likel y ❑ Somewhat likel y ❑ Doubtful If doubtful, why? ❑ Dont carr y product Im looking for ❑ T oo expensive ❑ Klipsch dealer too far awa y ❑ Other Please tell us about you! ❑ Married ❑ Single ❑ Student ❑ Male ❑ Female Age: ❑ 15-17 ❑ 18-24 ❑ 25-35 ❑ 36-45 ❑ 46-55 ❑ 55-64 ❑ 65+ Annual Household Income: ❑ Under $25,000 ❑ $25-35,000 ❑ $35-50,000 ❑ $50-75,000 ❑ $75-100,000 ❑ $100,000+ Cut along dotted line and mail. 65Hz-20kHz±3dB 92dB SPL @ 1 watt/1 meter 8 ohms 75 watts maximum continuous (300 watts peak) Bass reflex via front-mounted port One 1" (2.54cm) neodymium magnet, silk dome compression driver with a 90˚x40˚ T ractrix® Horn and one 5.25" (1 3.34cm) poly cone woofer K -94-S 1" (2.54cm) Silk dome compression driver 2800Hz K -1 1 1 6-SB Black 1 2.25" (3 1.1cm) x 6.75" (1 7 .2cm) x 8.25" (2 1cm) 4 lbs. (1 .8kg) ABS White Bracket *port plug included FREQUENCY RESPONSE: SENSITIVIT Y : NORMAL IMPED ANCE: PO WER HANDLING: ENCLOSURE T YPE: DRIVE C OMPONENT S: T WEETER: HIGH FREQUENCY HORN: W OOFER: DIMENSIONS: WEIGHT : ENCLOSURE MA TERIAL: FINISHES: MOUNTING: KHO-7
