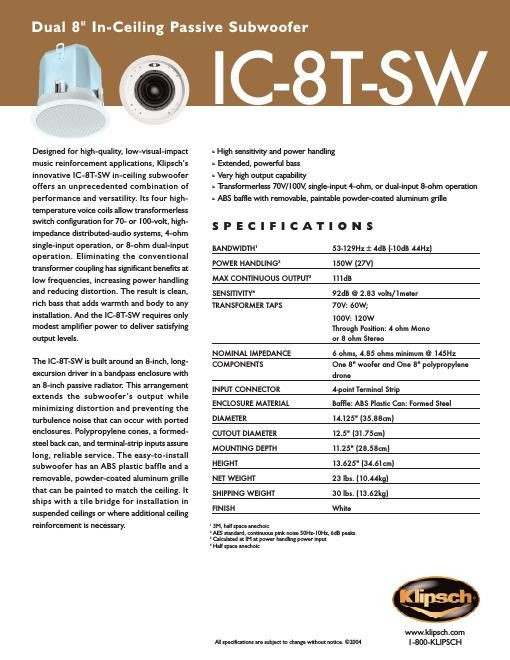

Dual 8" ln-Ceiling Passive Subwoofer

Designed for high-quality, Iow-visuaI-impact
music reinforcement applications, Klipsch's
innovative IC-8T-SW in-ceiling subwoofer
offers an unprecedented combination of
performance and versatility. Its four high-
temperature voice coils allow transformerless
switch conﬁguration for 70- or IOO-volt, high-
impedance distributed-audio systems, 4-ohm
single-input operation, or 8-ohm dual-input
operation. Eliminating the conventional
transformer coupling has significant beneﬁts at
low frequencies, increasing power handling
and reducing distortion. The result is clean,
rich bass that adds warmth and body to any
installation. And the IC-8T-SW requires only
modest ampliﬁer power to deliver satisfying
output levels.

The lC-8T-SW is built around an 8-inch, long-
excursion driver in a bandpass enclosure with
an 8-inch passive radiator. This arrangement
extends the subwoofers output while
minimizing distortion and preventing the
turbulence noise that can occur with ported
enclosures. Polypropylene cones, a formed-
steel back can, and terminal-strip inputs assure
long, reliable service. The easy-to-install
subwoofer has an ABS plastic baffle and a
removable, powder-coated aluminum grille
that can be painted to match the ceiling. It
ships with a tile bridge for installation in
suspended ceilings or where additional ceiling
reinforcement is necessary.

n High sensitivity and power handling

n Extended, powerful bass
n Very high output capability

n Transformerless 7OV/ I 00V, single-input 4-ohm, or dual-input 8-ohm operation

n ABS baffle with removable, paintable powder-coated aluminum grille

SPECIFICATIONS

BANDWIDTH 53-129Hz i AdB (-IOdB 44Hz)
POWER HANDLING2 150W [27V)
MAX CONTINUOUS OUTPUT3 I'll dB
SENSITIVITY 92dB @ 2.83 volts/l meter
TRANSFORMER TAPS 70V: 60W;

100V: 120W

Through Position: 4 ohm Mono
or 8 ohm Stereo

NOMINAL IMPEDANCE

6 ohms, 4.85 ohms minimum @ 145Hz

COMPONENTS One 8" woofer and One 8" polypropylene
drone
INPUT CONNECTOR A-point Terminal Strip

ENCLOSURE MATERIAL

Baffle: ABS Plastic Con: Formed Steel

DIAMETER 14.125" ((35.88ch
CUTOUT DIAMETER 12.5" (31.75am)
MOUNTING DEPTH 11.25" (2858ch
HEIGHT 13.625" (34.61 cm)
NET WEIGHT 23 lbs. (10.44kg)

SHIPPING WEIGHT

30 lbs. (13.62kg)

FINISH

White

i 3M, half space anechoic

1 AES standard, continuous pink noise SOHz-IOHz, 6dB peaks

aiculated at IM at power handling power input

. Half space anechoic
