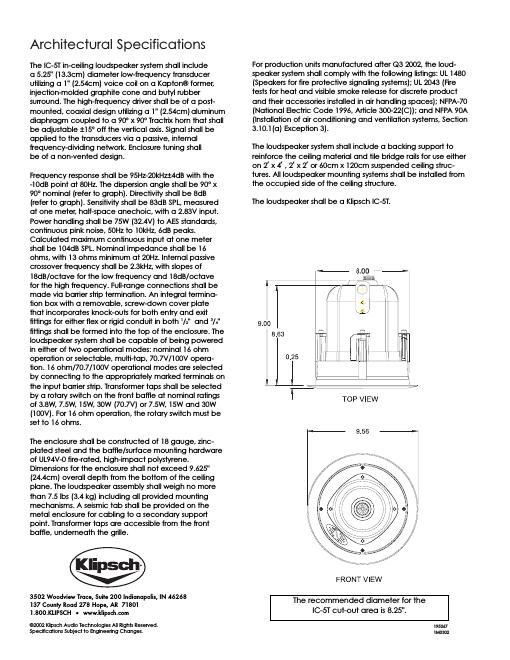

FREQUENCY RESPONSE 1 95Hz-20kHz ± 4dB POWER HANDLING 2 75W (32.4V) MAX CONTINUOUS OUTPUT 3 104dB SENSITIVITY 2.83V/1M 4 83dB SENSITIVITY 1W/1M 4 89.5dB TRANSFORMER TAPS70V: 30W, 15W, 7.5W, 3.5W 100V: 30W, 15W, 7.5W Through Position: 16 ohms DISPERSION ANGLE 90 ºConical DI 8dB Q 6.3 NOMINAL IMPEDANCE 16 ohms, 13 ohms minimum @ 20Hz INPUT CONNECTOR Barrier strip DIAMETER 9.563" (24.3cm) CUTOUT DIAMETER 8.25" (21cm) DEPTH 9.875" (25.1cm) CANDEPTH 9.625" (24.4cm) WEIGHT7.5 lbs (3.4kg) ACCESSORIESR-650-IK installation kit SPECIFICATIONS The IC-5T is a self-contained, in-ceiling, two- way loudspeaker system that incorporates the traditional Klipsch hallmark of high effi- ciency due to its Tractrix ®horn-loaded high- frequency section. The IC-5Ts compact size, low visual impact and high output make it ideal for office, retail, hospitality and other environments where both sound quality and aesthetics are important. The low frequency is delivered by a 5.25" injection-molded graphite cone with a butyl surround and a 1" voice coil to ensure long- term, high power handling without cone breakup. The high-frequency aluminum dome on a 1" voice coil is coupled to a 90º x 90º Tractrix horn for precise pattern control. The high-frequency section offers a ±15º adjustment off the vertical axis to allow for architectural considerations or room acoustics. The IC-5T is designed to meet all current requirements for commercial installations, compliant with the following: UL 1480, UL 2043, NFPA 70 and NFPA 90-A. Listing is expected for units produced after Q3 2002. The input termination cover accommodates two fittings for either 1/2" or 3/4" nominal rigid or flex conduit; both fittings are included. The IC-5T has been designed with a variety of features to reduce contractor inventory and increase job site productivity. The IC-5Ts are shipped in pairs, complete with adjustable tile bridges and support rings. This loudspeaker support structure is suitable for both domestic and European lay-in ceiling grids, gypsum board and other ceiling materials. The transformer taps are acces- sible from the front baffle underneath the grille. The optional R-650-IK installation kit is also available. The only assembly tool required is a #2 crosshead screwdriver. The IC-5T loudspeaker assembly is covered by the Klipsch limited five-year warranty. Ceiling-Mounted Loudspeaker IC-5T 13M, half space anechoic2 AES standard, continuous pink noise 50Hz-10kHz, 6dB peaks3Calculated at 1M at power handling power input4 Half space anechoic .Internal 30W multi-tap transformer with direct 16 ohm bypass .Transformer taps selectable from front baffle .360 ºswivel horn tweeter .Input terminal interfaces with industry standard conduit fittings (supplied) .Package includes grille, backcan, transformer and tile bridge
Page 2
In - Ceiling Loudspeaker IC-5T Frequency ResponseImpedance Magnitude Off-Axis Transfer Function Directivity Index Coverage (-6dB)
