Page 1

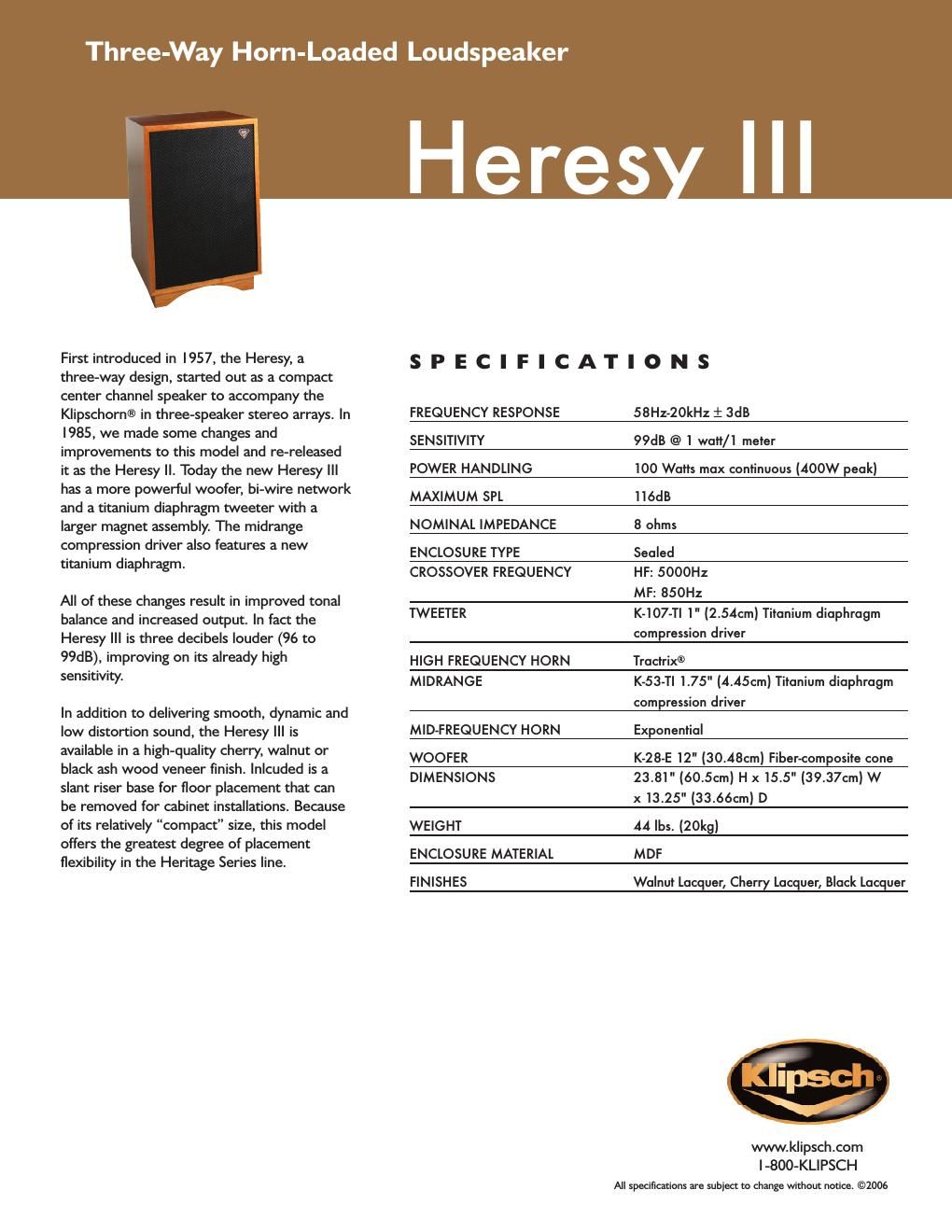

T ee-W y Horn-Loaded Loudspeaker

Heres

First introduced in I957, the Heresy, a
three-way design, started out as a compact
center channel speaker to accompany the
Klipschorn® in three-speaker stereo arrays. In
I985, we made some changes and
improvements to this model and re-released
it as the Heresy ll. Today the new Heresy III
has a more powerful woofer, bi-wire network
and a titanium diaphragm tweeter with a
larger magnet assemny The midrange
compression driver also features a new
titanium diaphragm.

All of these changes result in improved tonal
balance and increased output. In fact the
Heresy III is three decibels louder (96 to
99dB), improving on its already high
sensitivity.

In addition to delivering smooth. dynamic and
low distortion sound, the Heresy III is
available in a high-quality cherry, walnut or
black ash wood veneer ﬁnish. lnlcuded is a
slant riser base for ﬂoor placement that can
be removed for cabinet installations. Because
of its relatively compact size, this model
offers the greatest degree of placement
ﬂexibility in the Heritage Series line.

SPECIFICATIONS

FREQUENCY RESPONSE 58Hz-20kHz i 3:!
SENSITIVITY 99dB @ I watt/l meter
POWER HANDLING 100 Watts max continuous [400W peak)
MAXIMUM SFL 116dB
NOMINAL IMPEDANCE 8 ohms
ENCLOSURE TYPE Sealed
CROSSOVER FREQUENCY HF: 5000Hz
MF: 850Hz
TWEETER K-107-Tl I" (2.54am) Titanium diaphragm

compression driver

HIGH FREQUENCY HORN

Tractrix®

MIDRANGE

K-53-Tl 1.75" [4.45cm) Titanium diaphragm
compression driver

MID-FREQUENCY HORN

Exponential

WOOFER K-28-E 12" (30.118ch Fiber-composite cone

DIMENSIONS 23.31" (60.5cm) H x 15.5" (3937ch W
x 13.25" (313.66ch D

WEIGHT 44 lbs. (20kg)

ENCLOSURE MATERIAL

MDF

FINISHES

Walnut Lacquer, Cherry Lacquer, Black Lacquer
