Klipsch Hd Theater 1000 Owners Manual

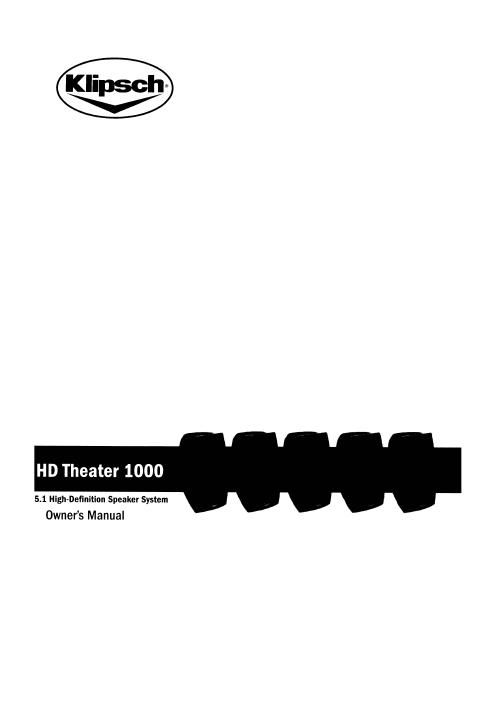

Page 1

Klipsch»
V

HD Theater 1000

5.1 High-Definition Speaker System
Owners Manual

Page 2

HD Theater 1000

IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.

KEEP these instructions.

HEED all warnings.

FOLLOW all instructions.

DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.

DO NOT block any ventilation openings. install in

accordance with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wider blade or the
third prong are provided for your safety. lithe provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where it exits from the apparatus.

11. ONLY USE attachments/accessories specified by the

manufacturer.

12. USE only with a cart. stand, tripod, bracket, or

table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/ apparatus combination to
avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when
unused for long periods of time.

14. REFER all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as poweresupply cord or plug is

damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

15. DO NOT expose this apparatus to dripping or splashing
and ensure that no objects filled with liquids, such as
vases. are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from the AC receptacle.

17. The mains plug of the power supply cord shall remain
readily operable.

NQQPPN

The exclamation point, within an equilateral triangle. is
intended to alert the user to the presence of important
operating and maintenance (sen/icing) instructions in the
literature accompanying the product.

The lightning flash with arrowhead symbol within an equi-
lateral triangle, is intended to alert the user to the presence

of uninsulated dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electrical
shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.

WARNING: No naked flame sources - such as candles - should be

placed on the product.

CAUTION

risk or mum suotx
on Her arm

A

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.

Place the equipment near a main power supply outlet and make
sure that you can easily access the power breaker switch.
WARNING: This product is intended to be operated ONLY from the
AC Voltages listed on the back panel or included power supply of the
product. Operation from other voltages other than those indicated
may cause irreversible damage to the product and void the products
warranty. The use of AC Plug Adapters is cautioned because it can
allow the product to be plugged into voltages in which the product
was not designed to operate. If the product is equipped with a
detachable power cord, use only the type provided with your product
or by your local distributor and/or retailer. If you are unsure of the
correct operational voltage, please contact your local distributor
and/or retailer.

PLACEMENT
Before You Start - Some Klipsch speakers have feet and other
accessories that may need to be installed prior to use.

Left and Right Main Channel Speakers - For optimum
performance, place your speakers 6 to 15 feet (2 to 4.5m) apart
and at least 24 inches (60.8cm) from side walls. They may also
be toed-in slightly for better stereo imaging. The listening
position should be approximately 1 to 1.5 times the distance
separating the speakers. Refer to figures 1, 2, 3 and 4 for
connection and placement.

Center Channel Speakers - One of the satellite speakers is
used as the center channel. This speaker is designed to place
dialogue and primary sounds into the room so they seem to
come from the video screen. The center channel should, there-
fore, be placed as closely as possible to the screen-preferably
directly above or below the screen. Refer to figures 2, 3 and 4
for connection and placement.

Surround Channel Speakers~Two satellites are used as surround
speakers. These create the sense of space and ambience that
todays surround sound technologies provide. Surround speakers
can be placed adjacent to, or behind, the listening position. The
surround speaker placement is approximately 6 ft. from the floor.
Refer to figures 2 and 4 for connection and placement. Do not
mount on the ceiling.
