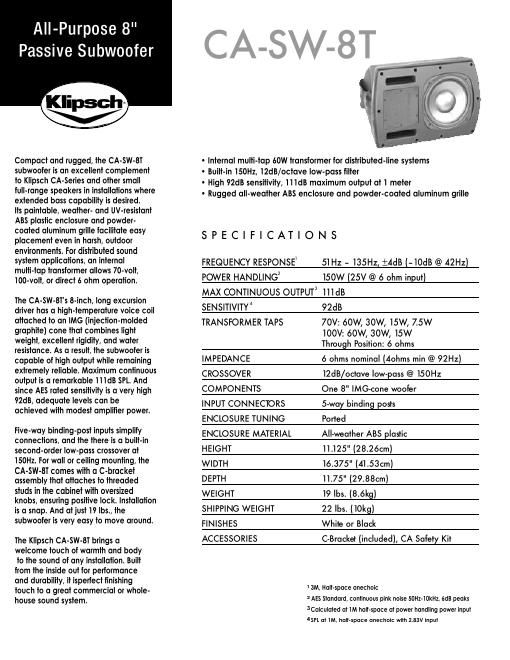

Page 1

All-Purpose 8"
Passive Subwooter

Compact and rugged, the CA-SW-BT
subwoofer is an excellent complement
to Klipsch CA-Series and other small
full-range speakers in installations where
extended bass capability is desired.

Its paintable, weather- and UV-resistant
ABS plastic enclosure and powder-
coaled aluminum grille facilitate easy
placement even in harsh, outdoor
environments. For distributed sound
system applications, an internal
multi-tap transformer allows 70-volt,
100-voIt, or direct 6 ohm operation.

The CA-SW-BT's 8-inch, long excursion
driver has a high-temperature voice coil
attached to an IMG (injection-molded
graphite) cone that combines light
weight, excellent rigidity, and water
resistance. As a result, the subwoofer is
capable of high output while remaining
extremely reliable. Maximum continuous
output is a remarkable llldB SPL And
since AES rated sensitivity is a very high
92dB, adequate levels can be
achieved with modest amplifier power.

Five-way binding-post inputs simplify
connections, and the there is a built-in
second-order low-pass crossover at
150Hz. For wall or ceiling mounting, the
CA-SW-BT comes with a C-bracket
assembly that attaches to threaded
studs in the cabinet with oversized
knobs, ensuring positive lock. Installation
is a snap. And atjust 19 lbs., the
subwoofer is very easy to move around.

The Klipsch CA-SW-8T brings a
welcome touch of warmth and body
to the sound of any installation. Built
from the inside out for performance
and durability, it isperfect finishing
touch to a great commercial or whole-
house sound system.

- Internal multi-tap 60W transformer for distributed-line systems

- Built-in 150Hz, lZdB/octave low-pass filter

0 High 92dB sensitivity, IIIdB maximum output at 1 meter

- Rugged all-weather ABS enclosure and powder-coated aluminum grille

SPECIFICATIONS

FREQUENCY RESPONSE

51 Hz - I35Hz, iAdB (-lOdB @ 42Hz)

POWER HANDLING7

150W (25V @ 6 ohm input)

MAX CONTINUOUS OUTPUT3 IIIdB

SENSITIVITY 92dB
TRANSFORMER TAPS 70V: 60W, 30W, 15W, 7.5W

100V: 60W, 30W, 15W

Through Position: 6 ohms
IMPEDANCE 6 ohms nominal (thms min @ 92Hz)
CROSSOVER IZdB/octave low-pass @ I50Hz
COMPONENTS One 8" IMG-cone woofer
INPUT CONNECTORS 5-way binding posts

ENCLOSURE TUNING

Ported

ENCLOSURE MATERIAL

All-weather ABS plastic

HEIGHT 11.125" (28.26ch
WIDTH 16.375" (41.53ch
DEPTH 11.75" (29.88ch
WEIGHT I9 lbs. (8.6kg)
SHIPPING WEIGHT 22 lbs. (10kg)
FINISHES White or Black

ACCESSORIES

C-Bracket (included), CA Safety Kit

3M, Half-space anecholc

2 AES Standard, contlnuous plnk nolse 50H1-10kH1, 6:15 peaks
3 Calculated at 1M half-space at power handling power Input
SPl. at 1M, half-space anecholc wlth 1st Input

Page 2

Frequency Response

All-Purpose Passive Subwoofer

Impedance

A
34
A9;
:03
mm

Freauencv

Cm :

Directivity Index

a;

105
95
as
7:
65
Freauencv
Horizontal Off-Axis Transfer Function
12
S
-r ..__.__N'_. rgru %
-n
3 1n
- - 20
42 in
4n
.0
.u
,m
Freuuencv 7
Horizontal Coverage (-6dB)
360
315
270
m A»
2
190 5
ma 3
9
an
a
a
"'traM$3":;g§
Freuuenw \

Frequencv

FVEQUSHCV
Vertical Coverage (-6dB)
360
315
270
225 ,u
5
tan 3
135 3
o
90
45
, n
emDEEBN: g
Freauencv
Vertical Off-Axis Transfer Function
12
S
17-" -~-A~W.,._;fi --_u §
-a
'5 10
- - 20
42 m
40
18
.u
r 30
