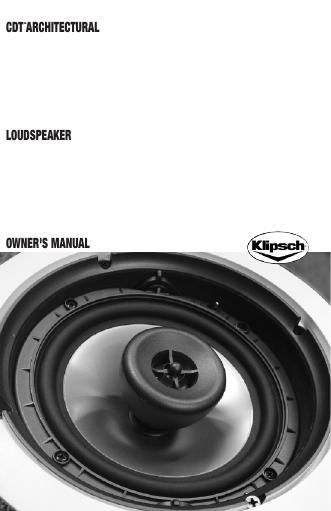

Klipsch cdt architectural owners manual
This is the 5 pages manual for klipsch cdt architectural owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from klipsch cdt architectural owners manual (Ocr-read)
Page 1
IMPORT ANT SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs,convenience receptacles, and the point where they exit from the apparatus. 11.ONLY USE attachments/accessories specified by the manufacturer. 12.USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,use caution when moving the cart/apparatus combination to avoid injury from tip over. 13.UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14.REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,does not operate normally, or has been dropped. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present withinthis unit. WARNING:To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture. WARNING: Voltages in this equipment are hazardous to life. No user serviceable parts inside. Refer all servicing to qualified service personnel. CAUTION: Changes or modifications not expressly approved by the manufacturer could void the users authority to operate this device. ABOUT YOUR KLIPSCH PURCHASEY our new Klipsch architectural speakers have been designed to deliver great sound while remaining unobtrusive wherever you install them. These models feature Controlled Dispersion Technology™. This allows you to point the sound as needed in a variety of installations. Any CDT is suitable for use as front, center or surround channels in audio or home theater applications, or as part of a distributed sound system. Any CDT model ending with SC is designed specifically for surround use in home theater applications. Minimum Tools Required#2 Phillips Screwdriver Wire strippersLevelStud finder Saw In Ceiling Speaker PlacementDesigned to function in any drywall or drop ceiling, Klipsch in ceiling speakers are engineered for years of performance. Minimum construction requirements call for drywall or other mounting surfaces to be at least 3/8" thick. In drop ceiling installations, typical "drop in" 2 x 4 and 2 x 2 ceiling tiles are composed of low density materials which have the potential over time to sag and vibrate audibly. To maximize the acoustic performance of your in ceiling speakers, Klipsch recommends you replace the original mounting panel with 1/2" to 3/4" plywood or medium density fiberboard (MDF) (see above). Speaker Installation (for New Construction, skip to step #3) 1. Cut the appropriate size opening in the wall or ceiling using the template provided. If the template is not available, cutoutdimensions are provided on the Klipsch website, www.klipsch.com. Sizes listed are minimum. If accuracy of cut cannot be achieved, you may add 1/4" to each dimension. Be careful not to cut through any existing wiring or plumbing. Avoidcompromising any fire stops between studs. 2.Run speaker wiring (18 gauge minimum) to the openings. Be sure to comply with all building codes in your area. 3.Attach the wire to the speaker using the wires color coding or markings as a guide to maintain proper polarity. ARCHITECTURAL SPEAKERS
Page 2
4. Insert the speaker assembly into the opening and attach by tightening the four Phillips screws (below). The frames four dogs will swivel out and sandwich the wall and frame togeth er as they are tightened. If you use a power tool to tighten these screws, please use a low torque setting. Failure to do so could result in damage to your speaker. 5. Adjust the direction of the speaker by swiveling it to the left or right as needed. If desired, you may also adjust the tilt of the speaker and gently adjust the horn to the desired angle. Do not attempt to turn the tweeter stem while adjusting the swivel tweeter. 6. At this point, you may paint the speaker grilles before attach ing them to the speaker. Klipsch grilles are designed to accept most types of paint. Care should be taken to avoid excessive paint build up in the grille perforations. 7. Press the grille into place. See back page for more illustrations. OPERATING CONTROLSMid Bass and Tweeter Attenuator Switch (3000 and 5000 Series) Some CDT models feature a Tweeter switch (3000 series) or both a Mid Bass and a Tweeter switch (3000 & 5000 series) located on the front baffle.The switch allows a setting of either 0dB (normal) or –3dB in the respective frequency range.If installing in an acoustically bright room,such as a bathroom or kitchen,you may want to adjust the Tweeter level switch.If the speaker is located in a corner and produces too much bass,you may need to adjust the Mid Bass level switch.The position of the switches should always be checked prior to attaching the grille. WARRANTY-U.S. AND CANADA ONLY The Warranty below is valid only for sales to consumers in the United States or Canada. KLIPSCH, L.L.C. ("KLIPSCH") warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCHs option) this product or any defective parts(excluding electronics and amplifiers).For products that have electronics or amplifiers, the Warranty on those parts is for a period of two (2) years from the date of purchase. To obtain Warranty service, please contact the KLIPSCH author ized dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH product, it can be returned, freight paid, to KLIPSCH for repair. Please call KLIPSCH at 1 800 KLIPSCH for instructions. You will need to ship this product in either its original packaging or packaging afford ing an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice,which is evidence that this product is within the Warranty period,must be presented or included to obtain Warranty service. This Warranty is invalid if (a) the factory applied serial number has been altered or removed from this product or (b) this product was not purchased from a KLIPSCH authorized dealer.You may call 1 800 KLIPSCH to confirm that you have an unaltered serial number and/or you purchased from a KLIPSCH authorized dealer. This Warranty is only valid for the original purchaser and will automatically terminate prior to expiration (if applicable) if this product is sold or otherwise transferred to another party. This Warranty does not cover cosmetic damage or damage due to misuse,abuse, negligence, acts of God, accident, commercial use or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover product sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.
