Klipsch cdt 2650 sc owners manual

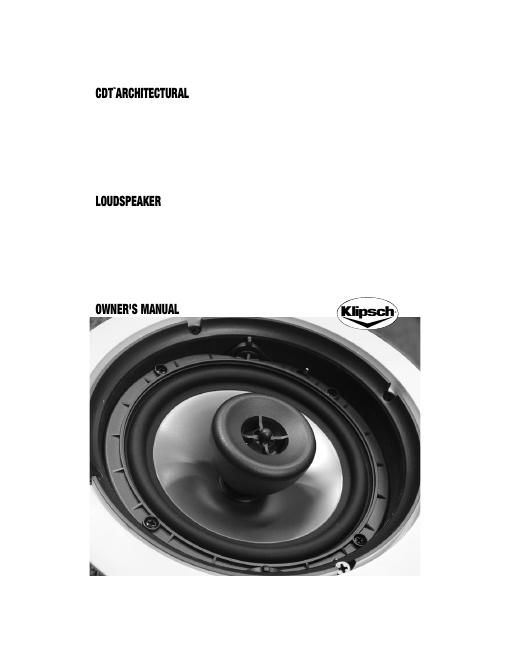

Page 1

CDTARGHITECTUBAI.

LOUDSPEAKER

OWNER'S MANUAL ,
r ,

Page 2

IMPORTANT SAFETV INSTRUCTIONS

READ these instructions.

KEEP these instructions.

HEED all warnings.

FOLLOW all Instructions.

DO NOT use this apparatus near water.

CLEAN ONLY with dry cloth

DO NOT block any ventilation openings. Install in accordance

with the manulacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampllliersl that
produce heat.

9. DO NOT defeat the salety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are Orflvided
for your safety. If the provided plug does not lit inlo your outlet,
cpnsull an electrician for replacement ol the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11. ONLY USE attachments/accessories specilied by the
manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table specilied
by the manulacturer, or sold with the apparatus. When a cart is
used, use caution when moving the can/apparatus
combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused
for long periods of time.

14. REFER all servicing to qualified service personnel. Sewicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.

N979?.Wl\7.-

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.

This symbol indicates that dangerous voltage
A constituting a risk of electric shock rs present within
this unit.

WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.

on im um}

WARNING: Voltages in this equrpment are hazardous to life No
user-serviceable pans inside. Reler all servicing to qualified
service personnel.

CAUTION: Changes or modifications not expressly approved by the
manufacturer could vord the users authority to operate this device.

JRQHJIECIURALSEEAKERS-

ABOUT VOUR KLIPSCH PURCHASE

Vour new Klipsch architectural speakers have been designed to
deliver great sound while remaining unobtrusive wherever you
install them. These models feature Controlled Dispersion
TechnologyiM. This allows you to point the sound as needed in
a variety of installations. Any CDT is suitable for use as front,
center or surround channels in audio or home theater
applications, or as pan ol a distributed sound system. Any CDT
model ending with SC is designed specilically for surround use
in home theater applications.

Minimum Tools Required
#2 Phillips Screwdriver
Wire strippers

Level

Stud tinder

Saw

ln-Ceiling Speaker Placement

Designed to function in any drywall or drop ceiling, Klipsch
in-ceiling speakers are engineered tor years of performance.
Minimum construction requirements call for drywall or other
mounting surfaces to be at least 3/ " thick. ln drop ceiling
installations, typical drop in" 2 x 4' and 2 x 2' ceiling tiles are
composed of low density materials which have the potential over
time to sag and Vibrate audibly. To maximize the acoustic
performance of your in-ceiling speakers, Klipsch recommends
you replace the original mounting panel with 1/2" to 3/4"
plywood or medium density fiberboard (MDF) (see above).

Speaker installation (for New Construction, skip to step #3)

1. Cut the appropriate size opening in the wall or ceiling using
the template provided. It the template is not available, cutout
dimensions are provided on the Klipsch website,
wwwklipschcom. Sizes listed are minimum. If accuracy of cut
cannot be achieved, you may add 1/4" to each dimension. Be
careful not to cut through any existing wiring or plumbing. Avoid
compromising any fire stops between studs.

2. Run speaker Wiring (18 gauge minimum) to the openings. Be
sure to comply With all building codes in your area.

3. Attach the wire to the speaker using the wires color coding or
markings as a guide to maintain proper polarity.
